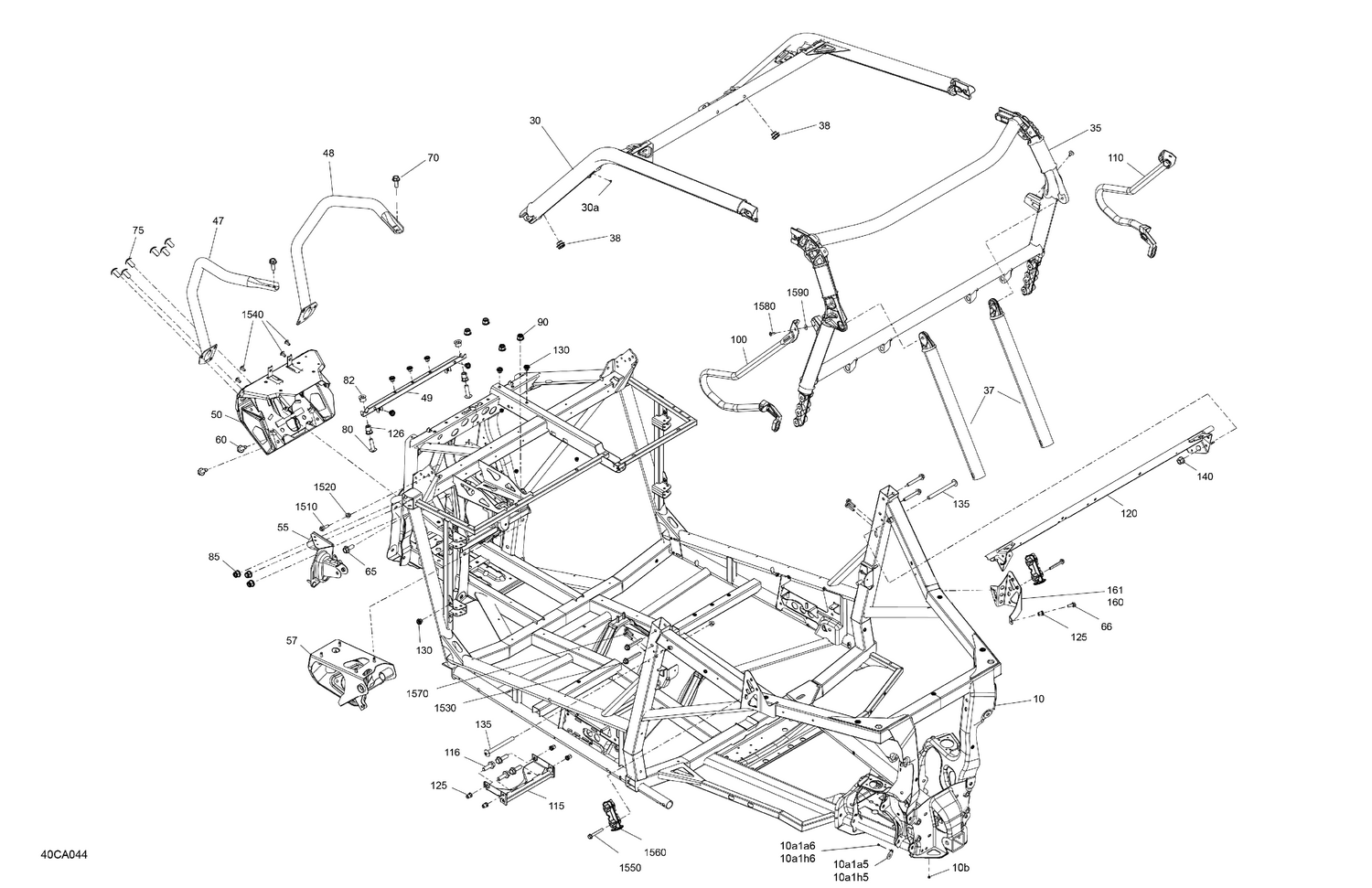

06- Frame - System — Parts Catalog

Parts (44)

Ref	Part Number	Description
10a1a5	705209479	Shim
10a1a6	390402200	Pop Rivet 3/16"
10a1h5	705209479	Shim
10a1h6	390402200	Pop Rivet 3/16"
10b	390402200	Pop Rivet 3/16"
30a	390402200	Pop Rivet 3/16"
35	715009349	Deep Black, Rear Cage Ass'y
37	705211125	Deep Black, Rear Cage Extension
38	250100199	Insert Half Hex Body M6 x 1.0
47	705206303	LH Front Bumper
48	705206308	RH Front Bumper
49	705206313	Cross Member
50	705209043	Deep Black, Front Bumper
55	705206217	Brake Support
57	705206294	DPS Support
60	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
65	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
66	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
70	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
75	250000746	Torx Truss Screw M8 X 16
80	250000745	Hex Torx Truss M8 X30
82	705207229	Bushing
85	233281416	Hex. Elastic Flange Nut M8
90	233281416	Hex. Elastic Flange Nut M8
100	705206747	LH Protector Tube
110	705206752	RH Protector Tube
115	705211563	Bearing Support
116	207582544	Hex. Flange Screw M8 X 25, Scotch Grip
120	705209434	Central Tube
125	293450307	Insert Half Hex Body M8 x 1.25
126	293450307	Insert Half Hex Body M8 x 1.25
130	250100199	Insert Half Hex Body M6 x 1.0
135	250000806	Torx Truss M8 X 90
140	233081436	Hex. Flange Nut
160	705211569	LH Rear Anchorage Support
161	705211571	RH Rear Anchorage Support
1510	250000855	Hex. Flange Screw M10 X 35
1520	233201466	Flange Elastic Nut M10
1530	207607056	Hex. Flange Screw M10 X 70
1540	250000746	Torx Truss Screw M8 X 16
1550	207686044	Hex. Flange Screw M8 x 60
1560	705210648	Sleeve This part replaces 705209210.
1570	207583044	Hex. Flange Screw M8 X 30, Scotch Grip
1580	250000717	Torx Head Screw M6 X 16
