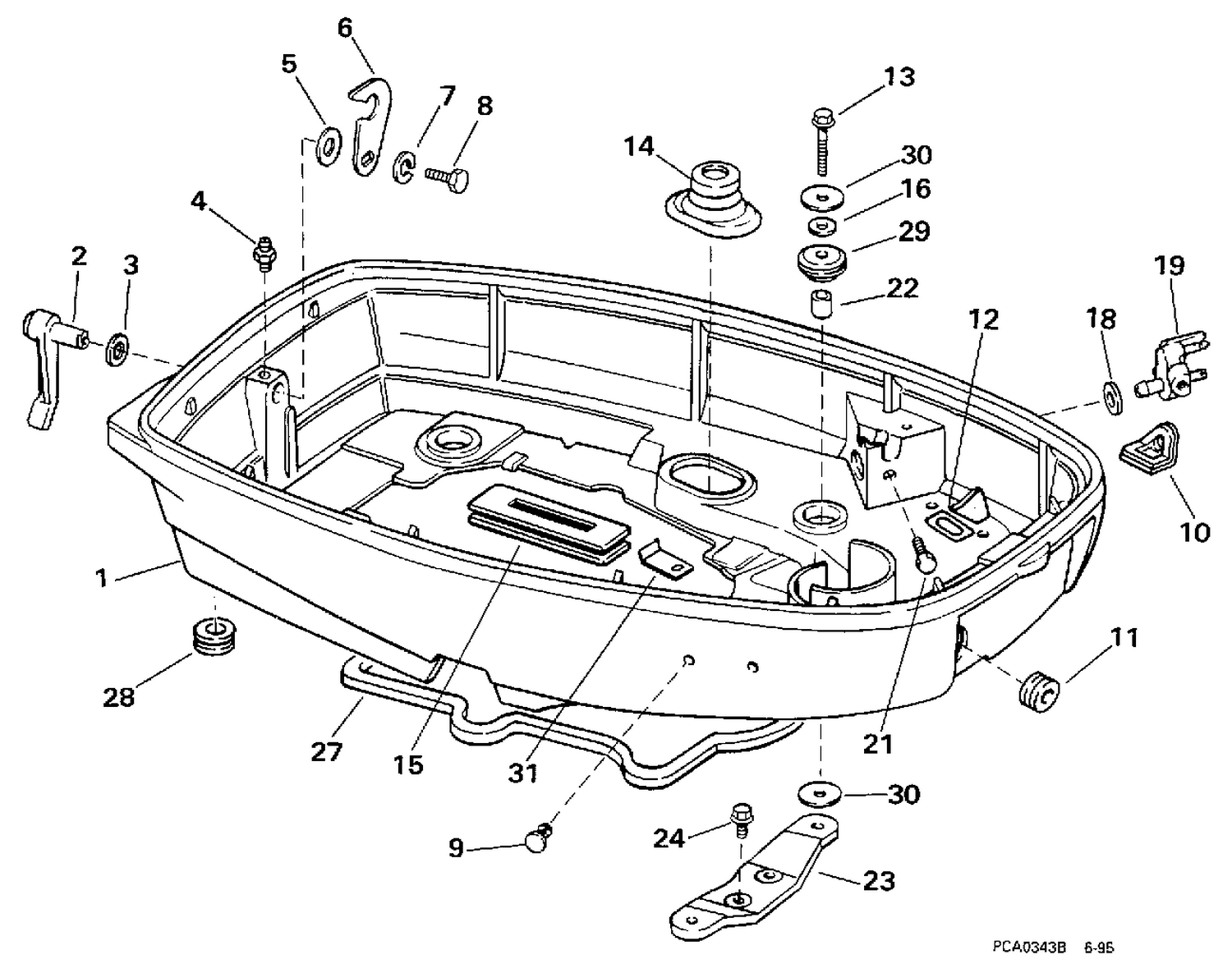

LOWER ENGINE COVER
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0433392 | ENGINE COVER, Lower |
| 13 | 0329240 | SCREW |
| 14 | 0304019 | CROMMET, CONTROL SHAFT |
| 15 | 0325327 | GROMMET, Actuator cam |
| 16 | 0329241 | RONDELLE |
| 22 | 0302406 | SLEEVE |
| 23 | 0325868 | BRACKET, Cove to exh. hsg., front |
| 27 | 0320158 | SEAL, Housing to cover |
| 28 | 0334761 | GROMMET |
| 29 | 0316354 | ENGINE COVER SUPPORT GROMMET |
| 30 | 0203622 | WASHER |
