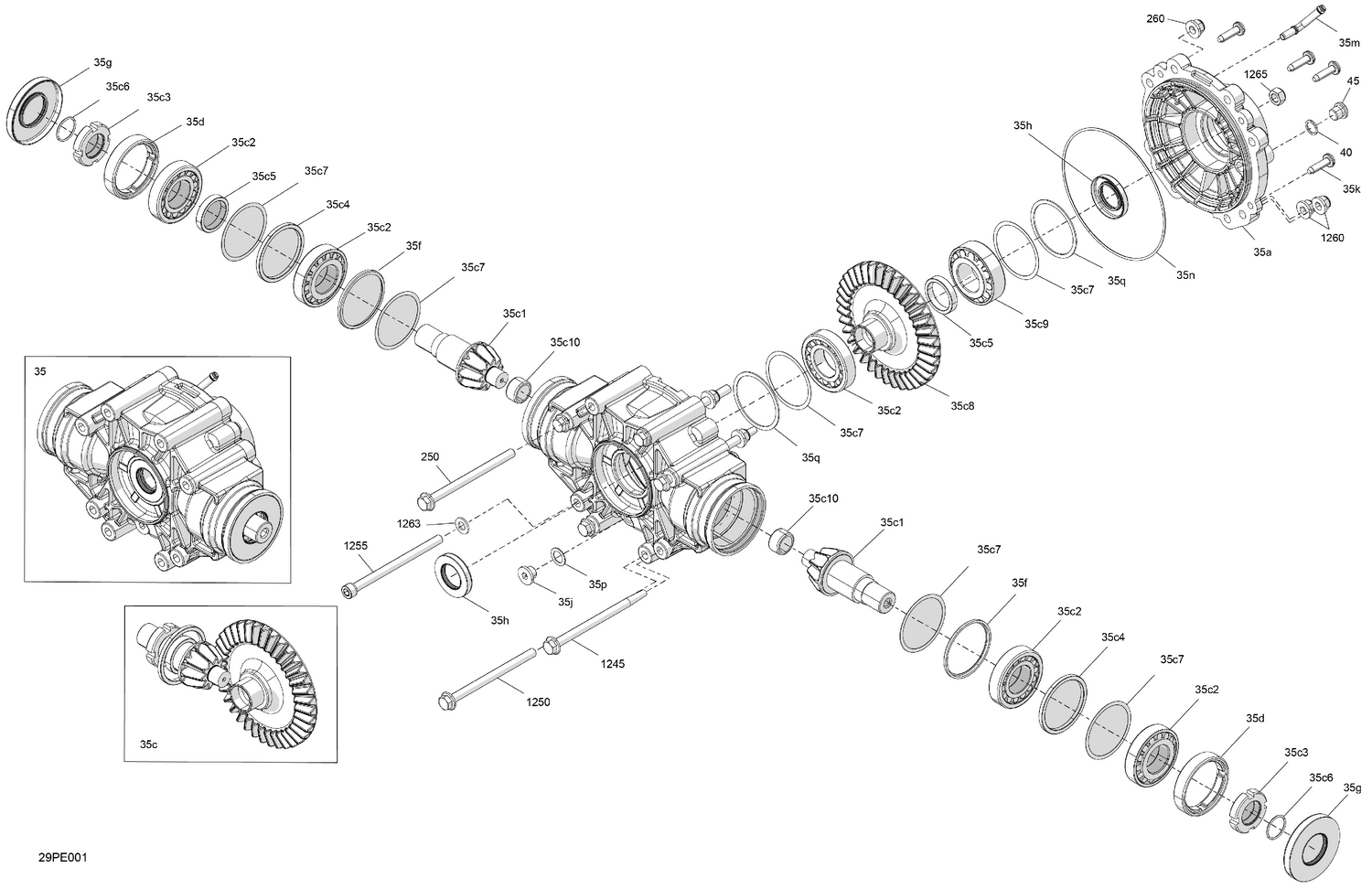

04- Drive - Middle Drive Unit
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 35a | 705503089 | Case Cover |
| 35c1 | 705502809 | Geart 10 Teeth |
| 35c10 | 705501760 | Needle Bearing |
| 35c2 | 705502174 | Roller Bearing |
| 35c3 | 705501550 | Nut |
| 35c4 | 705501552 | Differential Shim |
| 35c5 | 705501553 | Differential Shim |
| 35c6 | 705501554 | O-Ring |
| 35c7 | 705501725 | Differential Shim |
| 35c8 | 705502810 | Gear 36 Tooth |
| 35c9 | 705502173 | Roller Bearing |
| 35d | 705501549 | Nut |
| 35f | 705501586 | Differential Shim |
| 35g | 705501557 | Oil Seal |
| 35h | 705501556 | Oil Seal |
| 35j | 705500504 | Fill Level Plug |
| 35k | 705502063 | Screw |
| 35m | 705501584 | Breather Tube |
| 35n | 705501711 | O-Ring |
| 35p | 705500506 | Copper Washer |
| 35q | 705501555 | Differential Shim |
| 40 | 705500504 | Fill Level Plug |
| 45 | 705500506 | Copper Washer |
| 250 | 250001041 | Hex. Flange Screw M10 X 135 |
| 260 | 233201436 | Hex. Flange Elastic Nut M10 |
| 1245 | 705502741 | Hex. Flange Screw M10x145 |
| 1250 | 250001041 | Hex. Flange Screw M10 X 135 |
| 1255 | 250001094 | Screw Socket HD M10 X 140 |
| 1260 | 233201436 | Hex. Flange Elastic Nut M10 |
| 1263 | 20005 | WASHER M10 - Call your local BRP dealership |
