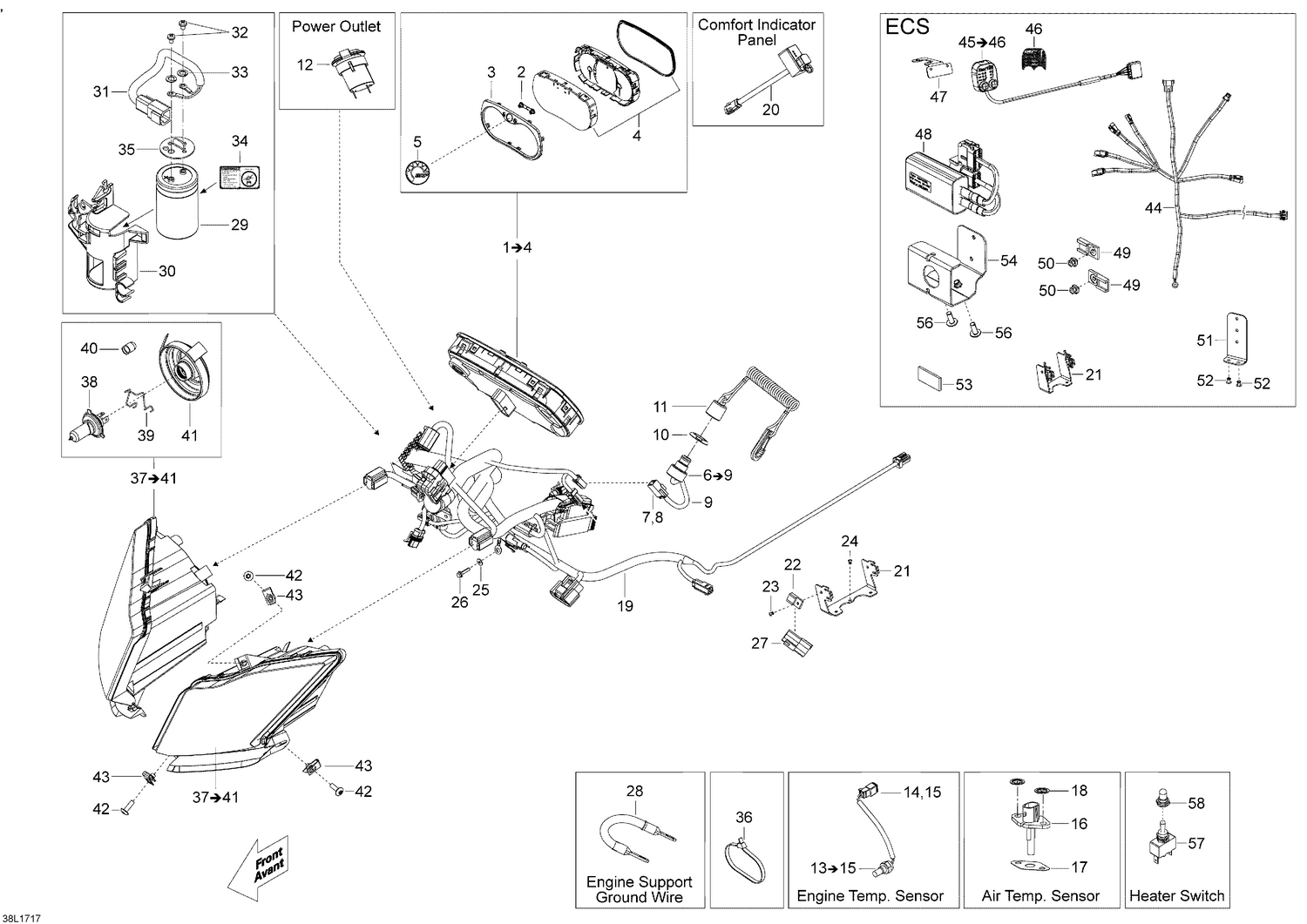

10- Electrical System
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415129355 | Speedometer Button |
| 3 | 415129348 | Gauge Ring |
| 4 | 415129349 | Lens |
| 5 | 516006224 | BRP Logo |
| 7 | 515175232 | Male Terminal |
| 8 | 515175494 | Male Housing, 3 Circuits |
| 9 | 409902000 | Tubing 12mm |
| 10 | 278002963 | Safety Nut (DESS Switch) |
| 11 | 515178044 | DESS Cap |
| 12 | 710001248 | DC Power Outlet |
| 14 | 515175670 | Female Terminal Housing, 2 Circuits |
| 15 | 278000632 | Female Terminal |
| 16 | 515176366 | Air Temperature Sensor |
| 17 | 508000769 | Ring |
| 18 | 389804300 | Push Nut |
| 20 | 515177377 | COMFORT INDICATOR PANEL - Call your local BRP dealership |
| 22 | 270000141 | Clip |
| 23 | 293150037 | Avdel Rivet 3/16" |
| 24 | 390402200 | Pop Rivet 3/16 |
| 25 | 234141601 | Lock Washer 4 mm |
| 26 | 250000741 | Screw-Torx Button Head M4 X 8 |
| 27 | 710003006 | Female Housing |
| 28 | 515177289 | Engine ground wire This part replaces 515176861. |
| 29 | 515177272 | Capacitor |
| 30 | 515176607 | Support |
| 31 | 515176605 | Harness |
| 32 | 250000462 | Socket HD Screw M10 x 32 |
| 33 | 250200026 | Lock Washer |
| 34 | 516006206 | Capacitor Decal |
| 35 | 515177193 | Cap |
| 36 | 293750001 | Tie-Rap 94 mm |
| 36 | 293750008 | Tie-Rap 368 mm |
| 36 | 414115200 | Tie-Rap 180 mm |
| 38 | 515176274 | H4 Halogen Bulb (60/55W, 12V) |
| 39 | Not | Available As Spare Part - Bulb Holder |
| 40 | 515176498 | Cap |
| 41 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 42 | 250000722 | Torx Truss Screw M6 x 20 |
| 43 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
