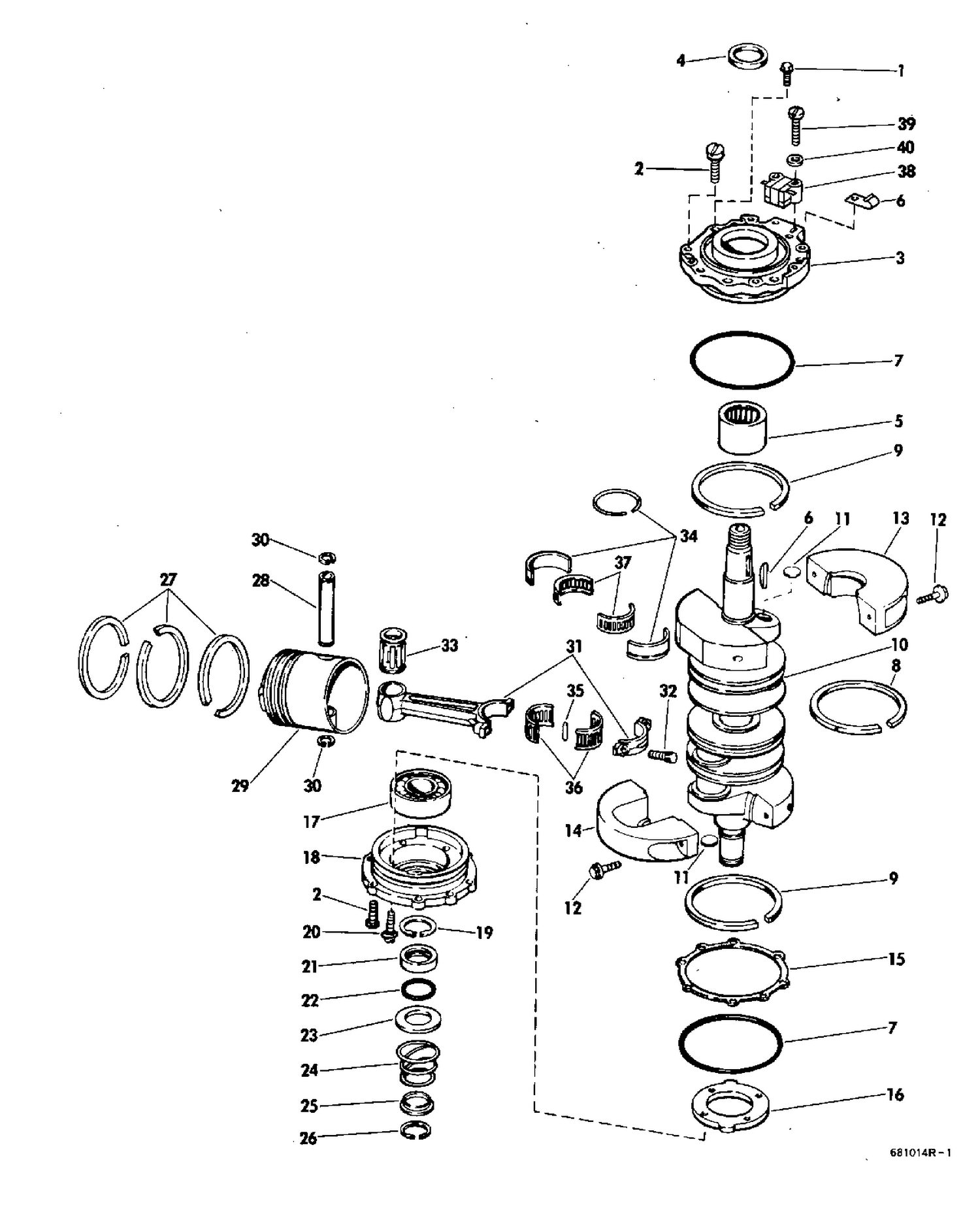

| Ref | Part Number | Description |
|---|
| 1 |
0308111 |
SCREW, C' case head upper |
| 2 |
0309924 |
SCREW |
| 3 |
0382397 |
CRANKCASE HEAD, Seal & brg. assy., upper |
| 5 |
0382398 |
BEARING, Roller |
| 7 |
0305123 |
O RING |
| 8 |
0310041 |
RING, Crankshaft seal |
| 9 |
0378427 |
SEAL RING SET |
| 10 |
0382625 |
CARBURETOR ASSEMBLY, Middle |
| 11 |
0305139 |
PLUG, Core |
| 12 |
0308121 |
SCREW, Filler block |
| 13 |
0314257 |
FILLER BLOCK, Upper |
| 14 |
0314259 |
FILLER BLOCK, Lower |
| 15 |
0305172 |
GASKET, Lower |
| 16 |
0308865 |
PLATE |
| 18 |
0380433 |
CRANKCASE HEAD & BUSHING, Lower |
| 20 |
0311539 |
SCREW, Bearing plate |
| 21 |
0305119 |
SEAL |
| 23 |
0305127 |
RETAINING WASHER |
| 24 |
0305140 |
SPRING |
| 25 |
0305125 |
RETAINING WASHER |
| 26 |
0305133 |
RETAINING RING |
| 27 |
0382825 |
PISTON RING SET, Standard |
| 27 |
0382826 |
PISTON RING SET, .020 o.s |
| 27 |
0382827 |
PISTON RING SET, .040 o.s |
| 28 |
0307145 |
PIN, Wrist |
| 29 |
0378815 |
PISTON & DOWEL, .040" O.S. |
| 29 |
0385282 |
PISTON, Std This part replaces 0380569. |
| 29 |
0385288 |
PISTON, .020 o.s. This part replaces 0378814. |
| 30 |
0302577 |
RETAINING RING |
| 31 |
0378260 |
CONN. ROD ASSEMBLY |
| 33 |
0378251 |
BEARING SET, Needle, wrist pin |
| 34 |
0310433 |
SLEEVE |
| 35 |
0378515 |
BEARING SET, Needle,connecting rod |
| 36 |
0437088 |
BEARING Assy This part replaces 0378528. |
| 37 |
0378252 |
BEARING ASSY., Needle |
| 38 |
0382548 |
SAFETY SWITCH ASSEMBLY |
| 39 |
0313741 |
SCREW, Safety switch |
