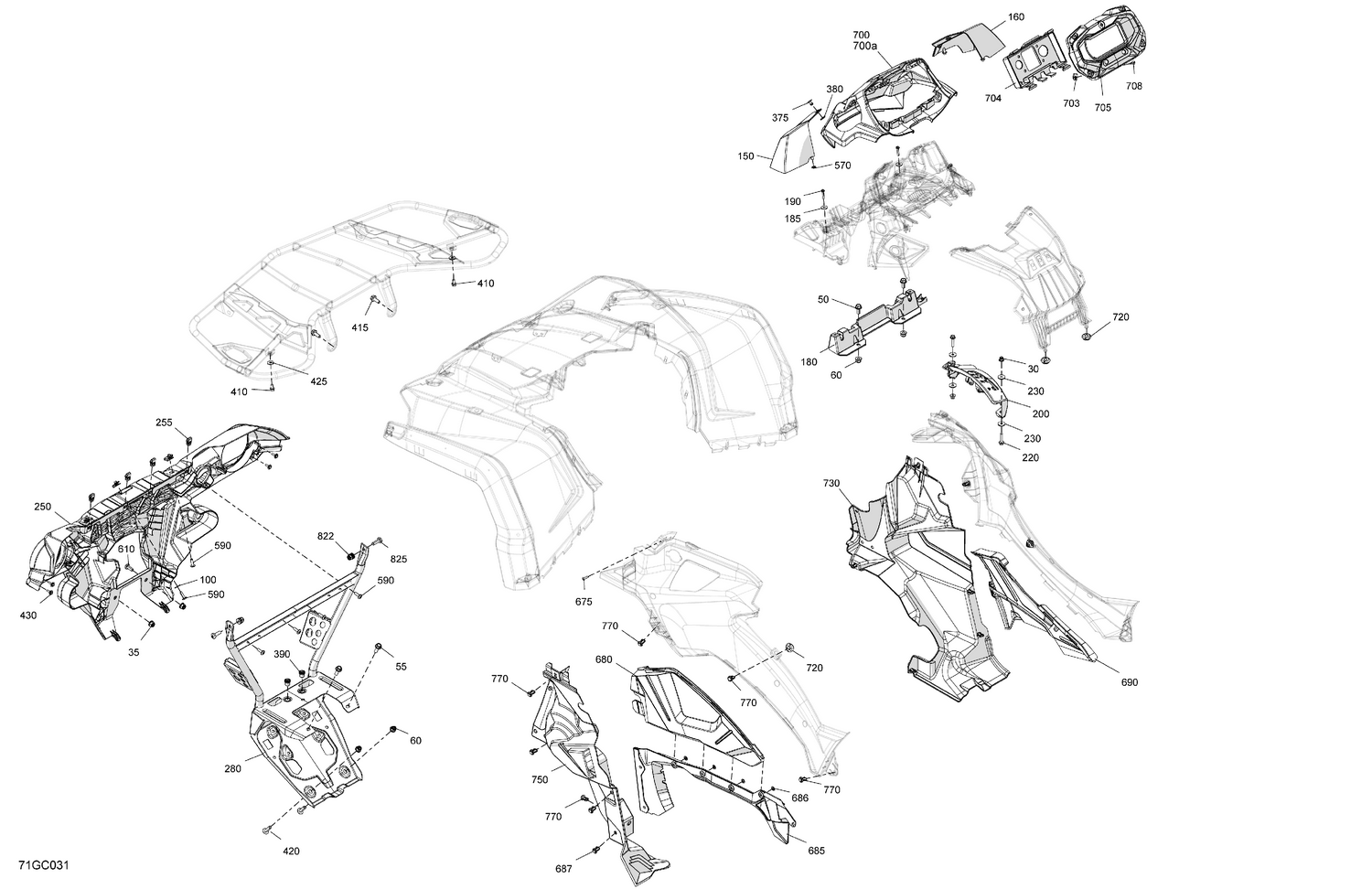

07- Body - Front Section
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 233261434 | Flange Elastic Nut M6 |
| 35 | 233281434 | Hex. Flange Elastic Nut M8 |
| 50 | 207682044 | Hex. Flange Screw M8 X 20 |
| 55 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 100 | 234062410 | Flat Washer 6 mm |
| 150 | 705006134 | LH Air Deflector |
| 160 | 705006135 | RH Air Deflector |
| 180 | 705010406 | Console Support Insert |
| 185 | 234062600 | Flat Washer M6, Stainless |
| 190 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 200 | 715008678 | Shift Lever Grille Kit |
| 220 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 230 | 224061201 | Flat Washer |
| 250 | 705009335 | Front Facia |
| 255 | 250100198 | Panel Nut M6 X 1.0 |
| 280 | 705017337 | Front Frame |
| 375 | 293150104 | Pop Rivet 3/16" |
| 380 | 517124300 | Washer |
| 390 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 410 | 210261250 | Hex. Flange Screw M6 X 12 |
| 415 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 420 | 250000886 | Torx Screw M8 X 30 |
| 425 | 234062670 | Stainless Steel Flat Washer |
| 430 | 250000725 | Screw M4 X 16 |
| 570 | 732610072 | Push Nut |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 610 | 236282054 | Hex. Screw M8 X 20 |
| 675 | 250000723 | Phillips Screw K40 X 16 |
| 680 | 715007294 | Deflector Body Panel Kit |
| 685 | 705014061 | Deflector Body Panel |
| 686 | 732610072 | Push Nut |
| 687 | 293150230 | Tuflok Plastic Rivet |
| 690 | 705003444 | Engine Cover |
| 700a | 705013984 | Gauge Support |
| 703 | 250100143 | Extruded Panel Nut M4 X 0.7 |
| 704 | 705015548 | Interior Gauge Support |
| 705 | 705016399 | Gauge Trim |
| 708 | 250000797 | Torx Head Screw M4 X 16 |
| 720 | 705003264 | Grommet |
| 730 | 705017023 | RH Front Wheel Arch Protector |
| 750 | 705017022 | LH Front Wheel Arch Protector |
| 770 | 293150230 | Tuflok Plastic Rivet |
| 822 | 233281464 | Elastic Flange Nut M8 |
