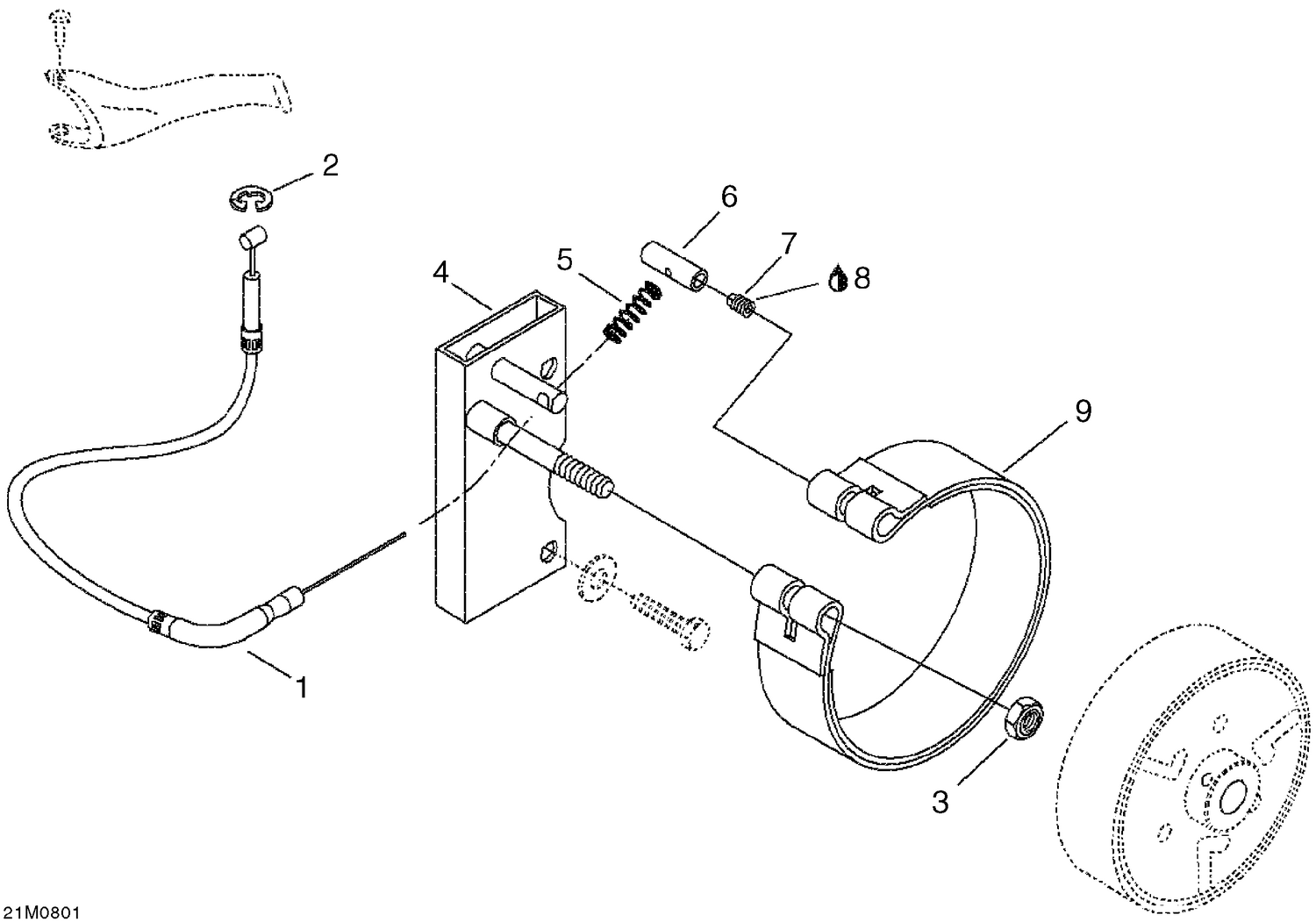

06- Brakes
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 507032289 | BRAKE CABLE - Call your local BRP dealership |
| 2 | 414274500 | Circlip |
| 3 | 232581414 | Hex. Elastic Stop Nut M8 |
| 4 | 507032297 | BRAKE SUPPORT - Call your local BRP dealership |
| 5 | 507032229 | RELEASE SPRING - Call your local BRP dealership |
| 6 | 415086300 | Cable Lock |
| 7 | 303115900 | Socket Set Screw |
| 8 | 293800060 | Loctite 243, 10 ml |
