Home / BRP / JOHNSON / 2001 / 4 / J4RLSIB Rope Start, Tiller, 20 IN. shaft 2001 / REWIND STARTER

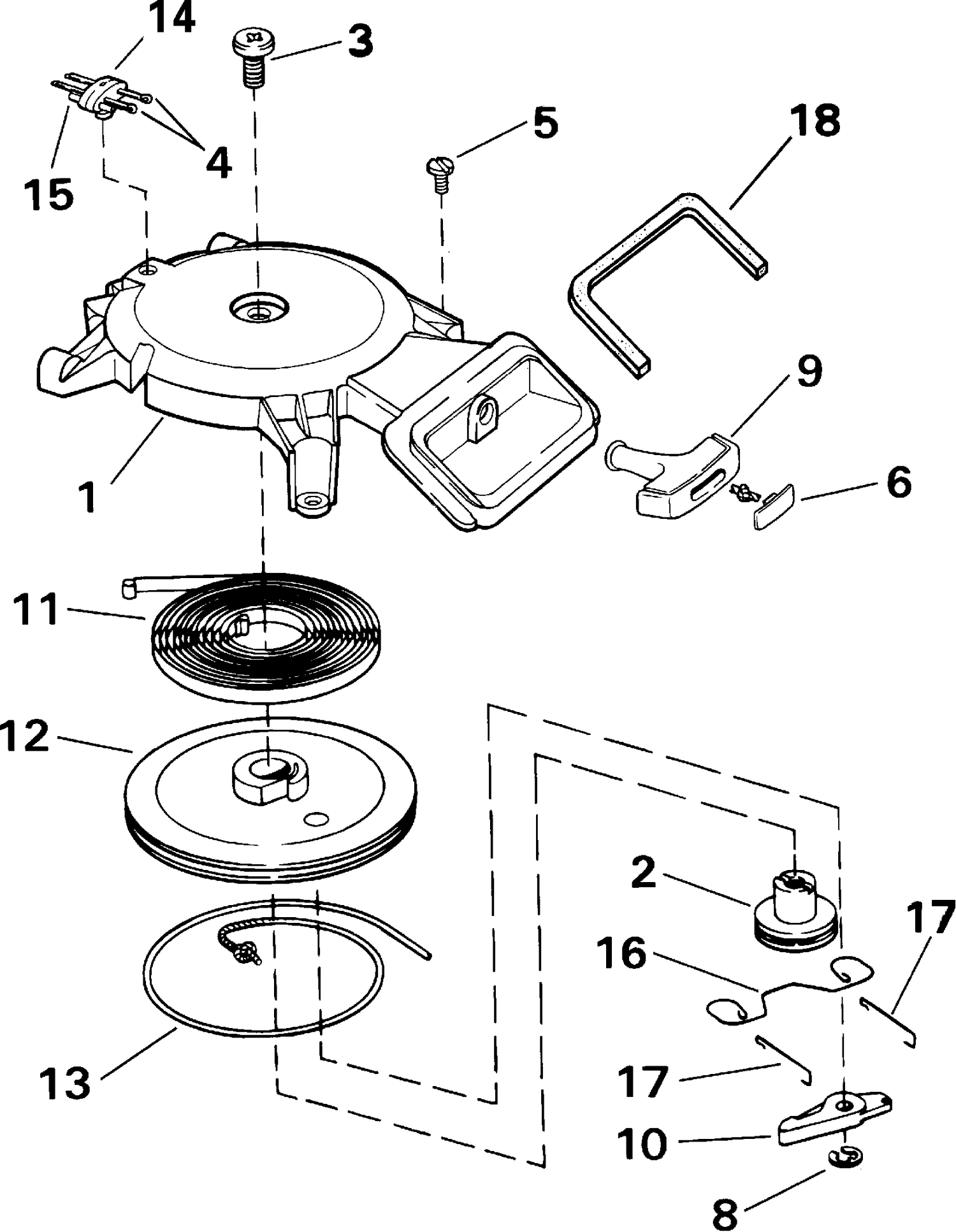

REWIND STARTER

REWIND STARTER

Parts (9)

RefPart NumberDescription
1 0438646 HOUSING & EYELET ASSY., Starter
4 0313693 COTTER PIN
9 0331361 HANDLE
11 0326877 SPRING, Starter
12 0396854 PULLEY & PIN ASSY.
14 0333799 HOLDER, Spare parts
15 0336221 DRIVE PIN, Propeller
16 0331970 FRICTION SPRING
17 0203700 LINK SPRING TO PAWL
