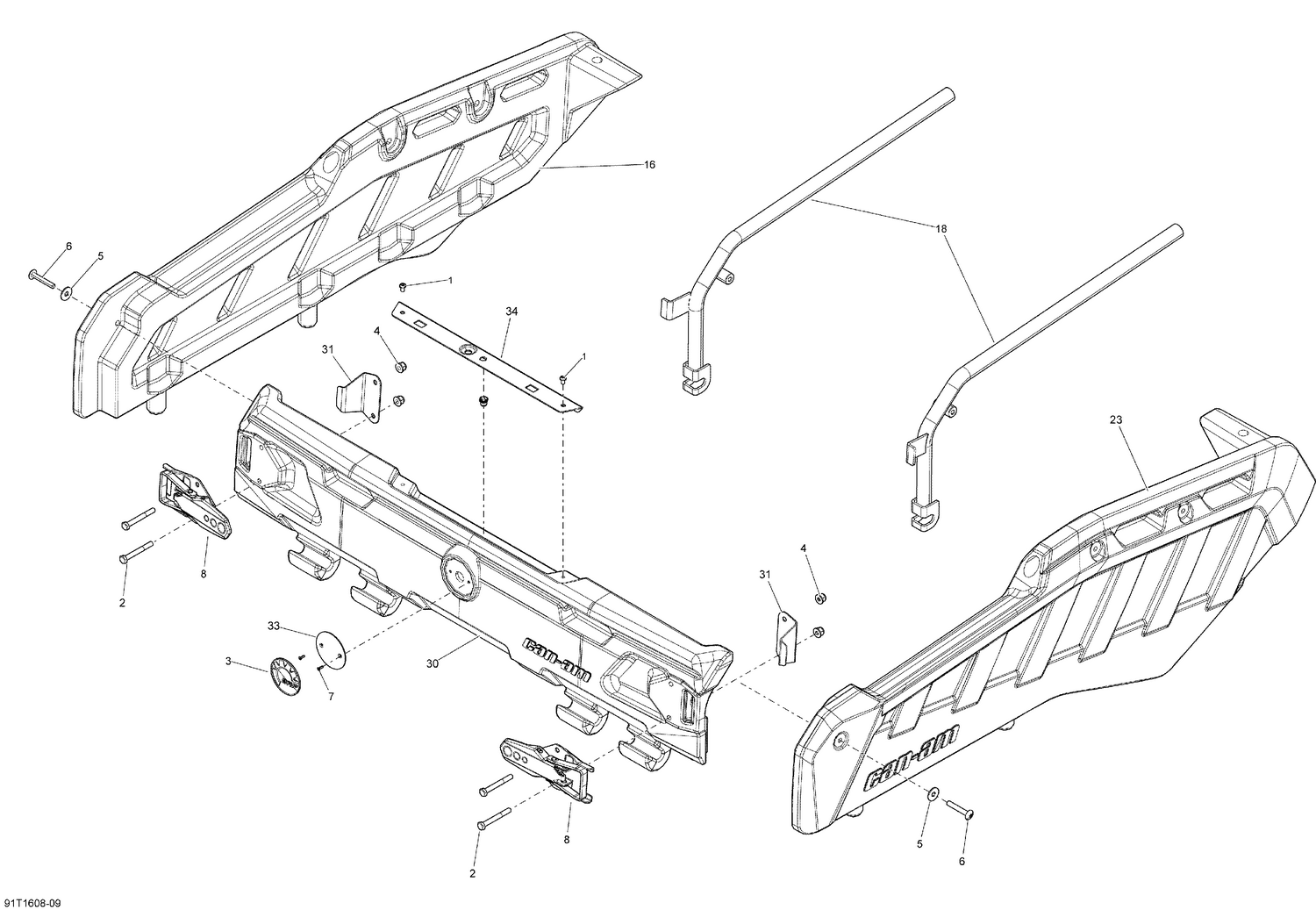

| Ref | Part Number | Description |
|---|
| 1 |
250000436 |
Socket Screw Button Head M6 X 10 This part replaces 205461060. |
| 2 |
207086544 |
Hex. Screw M8 x 65 |
| 3 |
516008739 |
BRP Logo 68mm This part replaces 219903609. |
| 4 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 5 |
234082670 |
Stainless Steel Flat Washer |
| 6 |
250000761 |
Torx Truss Screw M8 X 50 This part replaces 250000298. |
| 7 |
250000698 |
Countersunk Head Screw K30 X 10 |
| 8 |
511001014 |
Latch Ass'y |
| 16 |
708303727 |
Black, LH Side Panel This part replaces 708300990. |
| 18 |
708300991 |
SIDE RAILING LH WELD - Call your local BRP dealership |
| 18 |
708301000 |
LING RH WELD - Call your local BRP dealership |
| 23 |
708303728 |
Black, RH Side Panel This part replaces 708300999. |
| 30 |
708302080 |
Black, Tailgate This part replaces 708301002. |
| 31 |
708301005 |
Latch Fixing Plate |
| 33 |
708301177 |
Logo Base |
