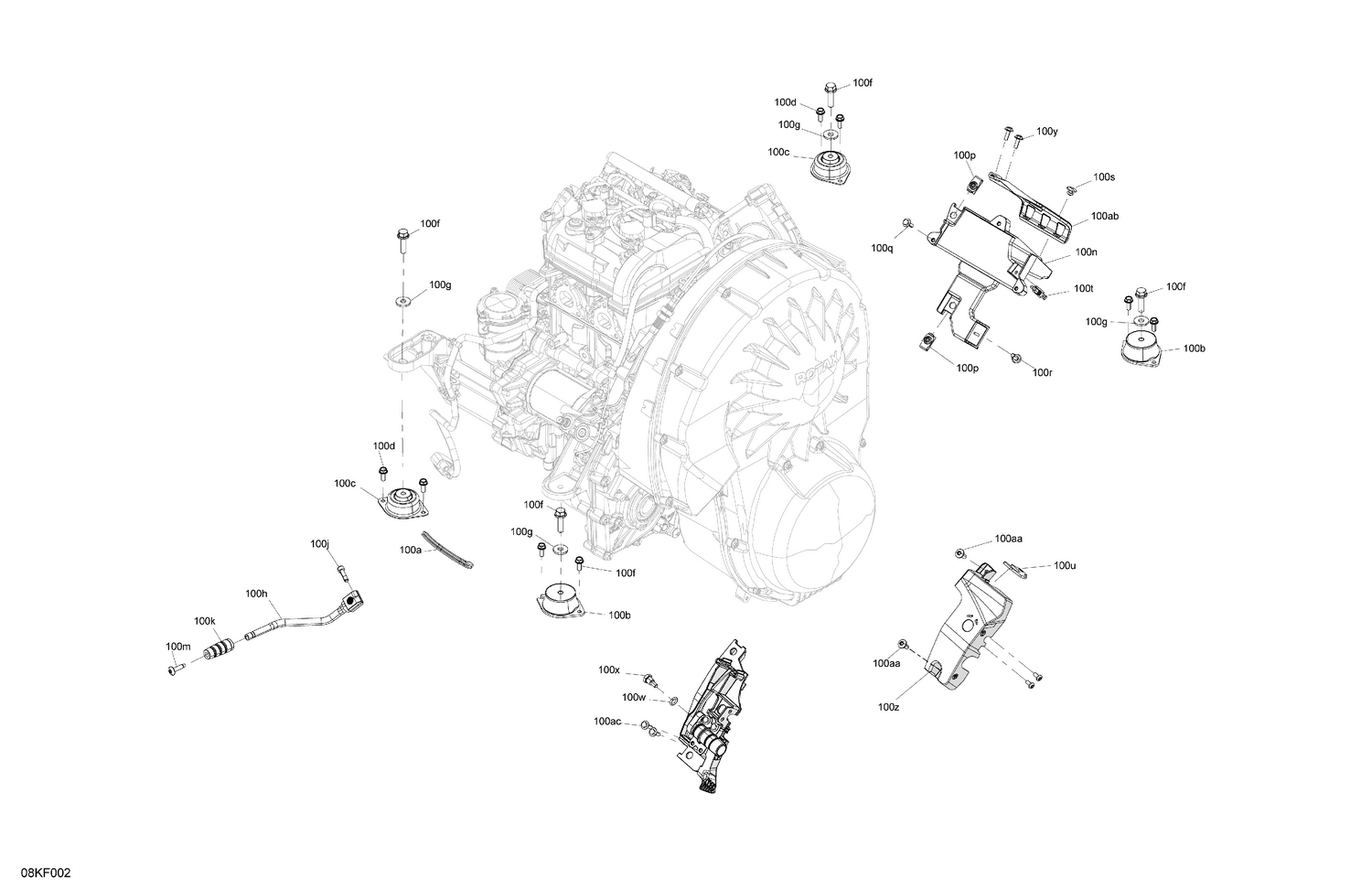

02- Engine - System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 100a | 219704354 | Trim 1000Mm Long |
| 100aa | 250000717 | Torx Head Screw M6 X 16 |
| 100ab | 707002582 | Deflector |
| 100b | 512061508 | Vibration Damper |
| 100c | 512061507 | Vibration Damper |
| 100d | 210261650 | Hex. Flange Screw M6 X 16 |
| 100f | 207583054 | Hex. Flange Screw S.GRIP M8 X 30 |
| 100g | 279000336 | Flat Washer |
| 100h | 707002045 | Shift Lever |
| 100j | 250001077 | Socket Head Screw Scotch Grip M6 X 20 |
| 100k | 707003509 | Shift Lever Tip |
| 100m | 250000728 | Torx Screw M6 X 25 |
| 100n | 707002214 | Support Module |
| 100p | 250100198 | Panel Nut M6 X 1.0 |
| 100q | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 100r | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 100s | 390406500 | Pop Rivet 3/16" |
| 100t | 515179692 | Connector Support |
| 100u | 707002273 | Bracket |
| 100w | 293300034 | O-RING - Call your local BRP dealership |
| 100x | 250400107 | Axle Pivot Arm |
| 100y | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 100z | 707002241 | Cover |
