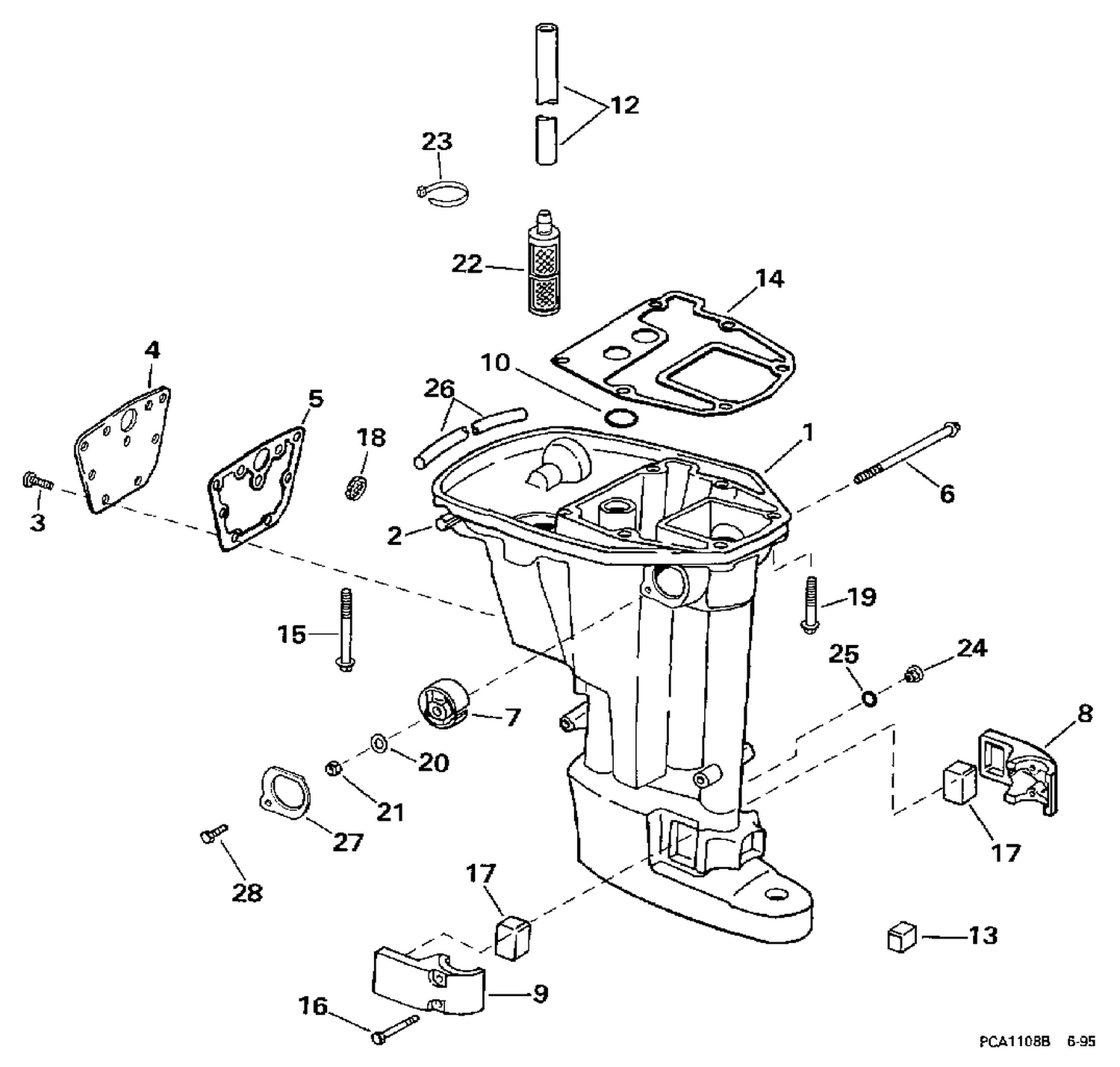

| Ref | Part Number | Description |
|---|
| 1 |
0438116 |
EXHAUST HOUSING ASSY. |
| 4 |
0343022 |
COVER, Exhaust |
| 5 |
0343023 |
GASKET, Cover |
| 6 |
0343093 |
SCREW, Upper mounts to housing |
| 7 |
0435688 |
MOUNT ASSY., Upper |
| 7 |
0437113 |
MOUNT ASSY., Upper |
| 8 |
0329021 |
MOUNT BRACKET, Lower port |
| 9 |
0329020 |
MOUNT BRACKET, Lower, stbd |
| 10 |
0123528 |
O-RING |
| 12 |
HOSE, |
Oil suction, screen to block, 8 in. (20 mm) |
| 13 |
0329046 |
THRUST MOUNT |
| 14 |
0337193 |
GASKET, Powerhead to exhaust hsg. |
| 15 |
0337379 |
CABLE ASSEMBLY, 19 ft. |
| 16 |
0319042 |
SCREW BRACKET AND CLAMPSCREW ASSY., Port |
| 17 |
0318997 |
LATERAL MOUNT, Lower |
| 18 |
0338159 |
FILTER, Exhaust |
| 21 |
0338935 |
LOCKNUT, M8 |
| 23 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 26 |
0332414 |
SEAL |
| 27 |
0341731 |
RETAINER, Upper mount |
