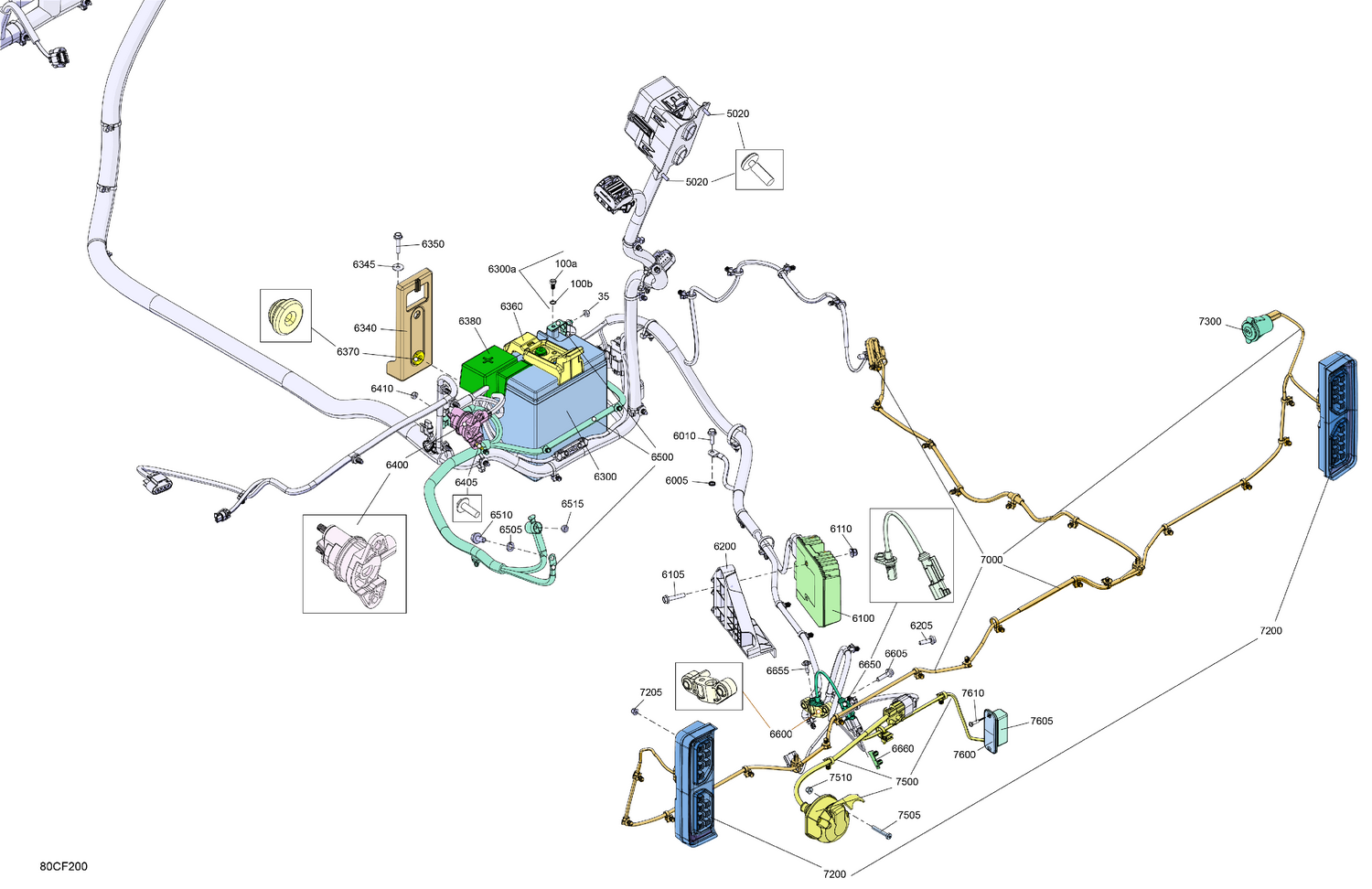

08- Electric - Rear Section
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 35 | 232561200 | Brass Elastic Stop Nut M6 |
| 100a | 710009084 | Screw |
| 100b | 710009082 | Washer |
| 5020 | 250000720 | Torx Screw K50 X 16 |
| 6005 | 234461608 | External Serrated Lock Washer 6 mm |
| 6010 | 207662054 | Hex. Flange Screw M6 X 20 |
| 6100 | 710010540 | Voltage Regulator |
| 6105 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 6110 | 233261494 | Hex. Flange Elastic Nut M6 |
| 6200 | 710009970 | Regulator Support |
| 6205 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 6300a | 515176081 | Battery Bolt Kit |
| 6340 | 710004788 | Fixation Plate |
| 6345 | 234062410 | Flat Washer 6 mm |
| 6350 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 6360 | 710009128 | Battery Support |
| 6370 | 705014429 | Rubber Stopper |
| 6380 | 710010386 | Battery Cable Cap |
| 6400 | 278003012 | Starter Relay |
| 6405 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 6410 | 232561200 | Brass Elastic Stop Nut M6 |
| 6500 | 710009816 | Power Starter Wiring Harness |
| 6505 | 234181401 | Lock Washer 8 mm |
| 6510 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 6515 | 232561414 | Elastic Stop Nut M6 |
| 6600 | 710010499 | Support Abs Sensor |
| 6605 | 207662556 | Hex. Flange Screw M6 X 25 |
| 6650 | 710011077 | Speed Sensor |
| 6655 | 250000959 | Screw PT Type K-50 X 16 |
| 6660 | 278002910 | Clip (double dart) |
| 7000 | 710009341 | Wiring Harness_Taillight |
| 7200 | 710009427 | Light_Turn Signal |
| 7205 | 233251494 | Elastic Flange Nut M5 |
| 7500 | 710009703 | Addon License Plate Trailer |
| 7505 | 208653560 | Phillips Screw M5 X 35 |
| 7510 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 7600 | 710005501 | License Light |
| 7605 | 710008469 | Rear Connector Guard |
