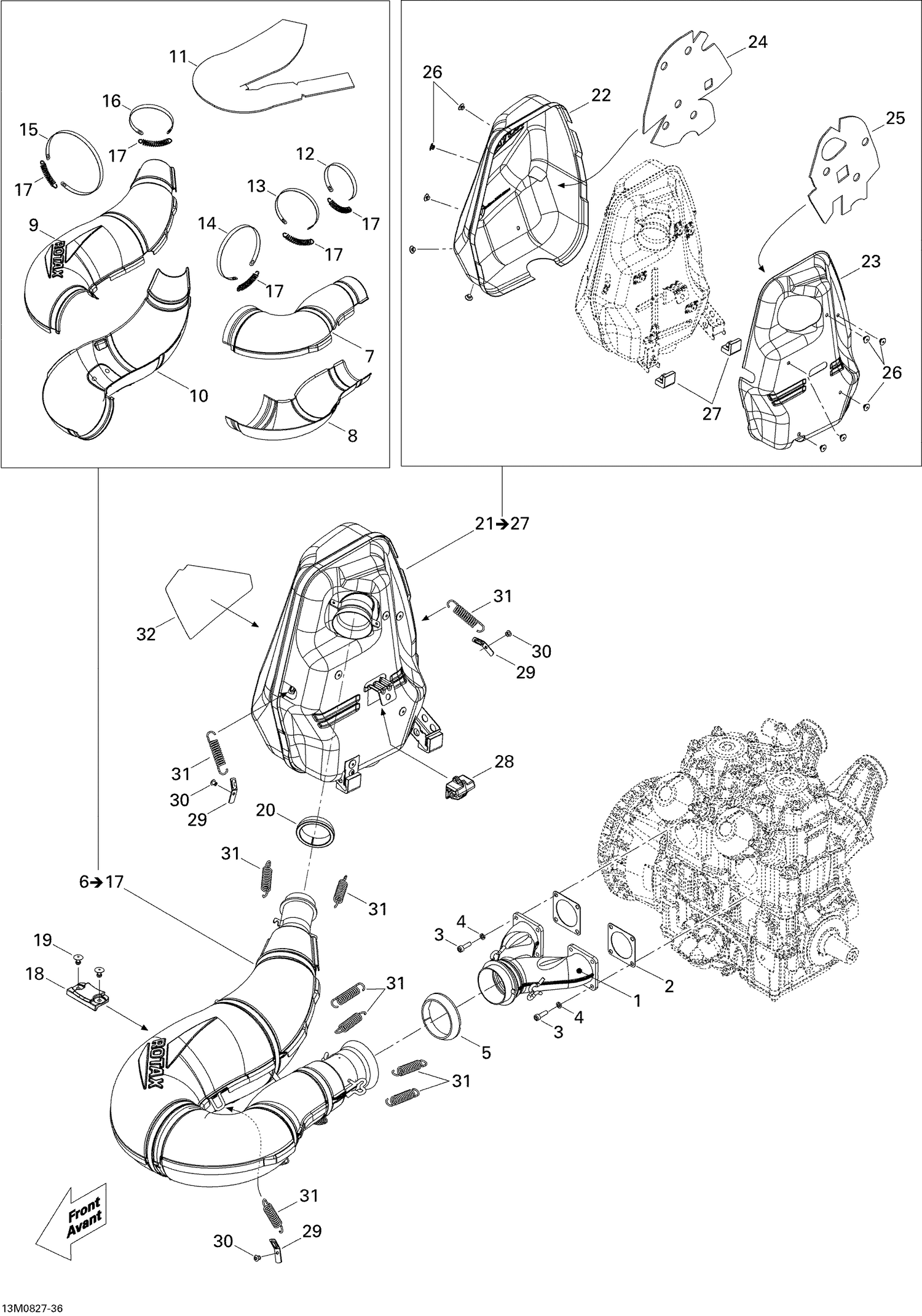

01- Exhaust System
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420673370 | Exhaust Manifold |
| 2 | 420430480 | Gasket |
| 3 | 250001077 | Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054047. |
| 4 | 514053953 | Washer |
| 5 | 514053487 | Exhaust Gasket |
| 7 | 514054988 | FRONT UPPER HALF ENVELOPPE - Call your local BRP dealership This part replaces 514054219. |
| 8 | 514054989 | FRONT LOWER HALF ENVELOPPE - Call your local BRP dealership This part replaces 514054220. |
| 9 | 514055039 | Rear Upper Half Enveloppe This part replaces 514054435. |
| 10 | 514054990 | Rear Lower Half Enveloppe This part replaces 514054279. |
| 11 | 514054273 | INSULATING WOOL - Call your local BRP dealership |
| 12 | 514053536 | Retaining Strap |
| 13 | 514054408 | Retaining Strap |
| 14 | 514054409 | Retaining Strap |
| 15 | 514054410 | Retaining Strap |
| 16 | 514053499 | Retaining Strap |
| 17 | 514053643 | Spring |
| 18 | 514054275 | Bumper |
| 19 | 293150103 | Pop Rivet 3/16" |
| 20 | 514054174 | Exhaust Gasket |
| 22 | 514054984 | RH Deflector This part replaces 514054433. |
| 23 | 514054202 | LH DEFLECTOR - Call your local BRP dealership |
| 24 | 514054298 | RH INSULATING WOOL - Call your local BRP dealership |
| 25 | 514054299 | LH Insulating Wool |
| 26 | 390910000 | Pop Rivet 3/16” |
| 27 | 514054274 | Lower Stopper |
| 28 | 514054606 | Upper Stopper This part replaces 514054282. |
| 29 | 514054522 | Spring Bracket This part replaces 514054391. |
| 30 | 390402200 | Pop Rivet 3/16" |
| 31 | 514054226 | Spring |
