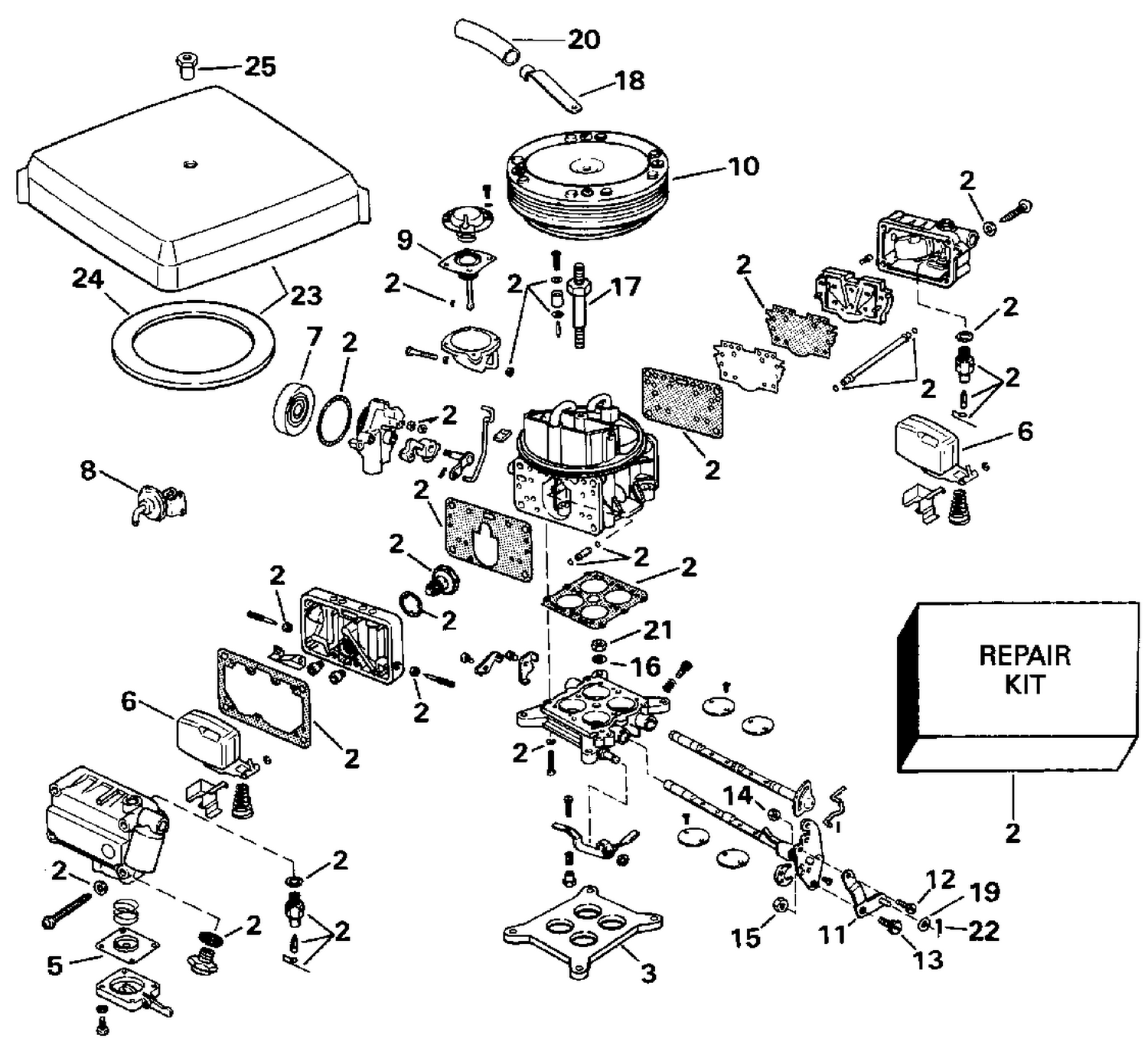

| Ref | Part Number | Description |
|---|
| 1 |
0987190 |
CARBURETOR ASSEMBLY |
| 2 |
0987315 |
REPAIR KIT |
| 3 |
3853275 |
GASKET, Adapter to manifold This part replaces 0914574. |
| 5 |
3854257 |
DIAPHRAGM, Accelerator pump This part replaces 0987277. |
| 6 |
3853575 |
FLOAT This part replaces 0986787. |
| 7 |
3856920 |
ELECTRIC CHOKE This part replaces 0986789. |
| 8 |
0986822 |
CHOKE DIAPHRAGM |
| 9 |
3853991 |
SECONDARY DIAPHRAGM This part replaces 0986577. |
| 10 |
3854026 |
FLAME ARRESTOR This part replaces 0986865. |
| 11 |
3853861 |
THROTTLE LEVER & PIN This part replaces 0985720. |
| 12 |
0307466 |
SCRES, Bowl to body |
| 13 |
0319292 |
SCREW, Clamp |
| 15 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 17 |
0914595 |
STUD, Flame arrestor |
| 18 |
3852695 |
CONNECTOR, Crankcase vent hose This part replaces 0913404. |
| 20 |
3852668 |
HOSE Crankcase vent This part replaces 0913092. |
| 21 |
0914593 |
NUT, Carburetor |
| 23 |
0986728 |
COVER, Flame arrestor This part replaces 0986003. |
| 24 |
3850458 |
PAD, Flame arrestor This part replaces 0914769. |
