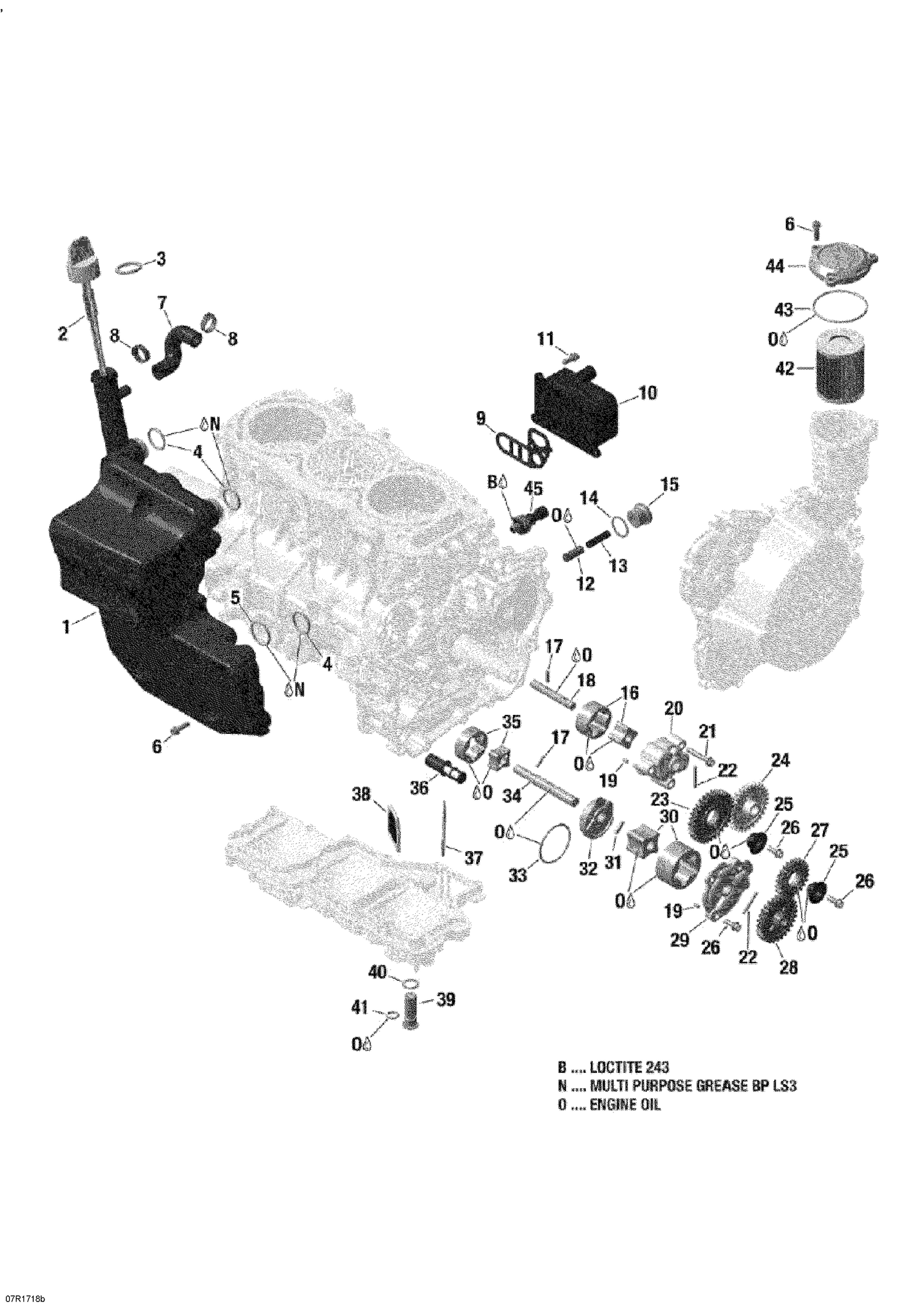

02- Engine Lubrication - 1200 4-TEC
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| B | Not | Available As Spare Part - Loctite 243 |
| N | Not | Available As Spare Part - Dow Corning 111 |
| 3 | 420431790 | Gasket Ring |
| 7 | 420460021 | Air Vent Line |
| 8 | 420951273 | Clamp |
| 10 | 420891914 | Oil Radiator |
| 12 | 420256510 | Pressure Regulating Piston |
| 13 | 420239445 | Spring DM6,95 D1,15 L46 |
| 16 | 420256681 | Rotor Set |
| 17 | 420232731 | Needle Pin |
| 18 | 420837911 | OIL PUMP SHAFT - Call your local BRP dealership |
| 19 | 420929075 | Needle Pin ISO 8734-4X8-A-ST |
| 20 | 420611861 | Oil Pump Housing |
| 22 | 420232431 | Needle Pin |
| 23 | 420835055 | Idle Gear (31 T) |
| 24 | 420834882 | Oil Pump Gear (29 T) |
| 25 | 420947396 | Graduated Spacer This part replaces 420947390. |
| 27 | 420835051 | Idle Gear (22 T) |
| 28 | 420834887 | Oil Pump Gear (28 T) |
| 29 | 420611980 | Oil Pump Cover |
| 30 | 420256831 | Oil Pump Rotor |
| 31 | 420632221 | Needle Pin This part replaces 420632220. |
| 32 | 420611950 | Oil Pump Cover |
| 34 | 420837915 | OIL PUMP SHAFT - Call your local BRP dealership |
| 35 | 420256671 | Rotor Set |
| 36 | 420856658 | OIL SIEVE - Call your local BRP dealership |
| 37 | 420856650 | Oil Sieve |
| 38 | 420856655 | Oil Sieve |
| 42 | 420956124 | Oil Filter |
| 44 | 420612135 | Oil Filter Cover This part replaces 420612132. |
