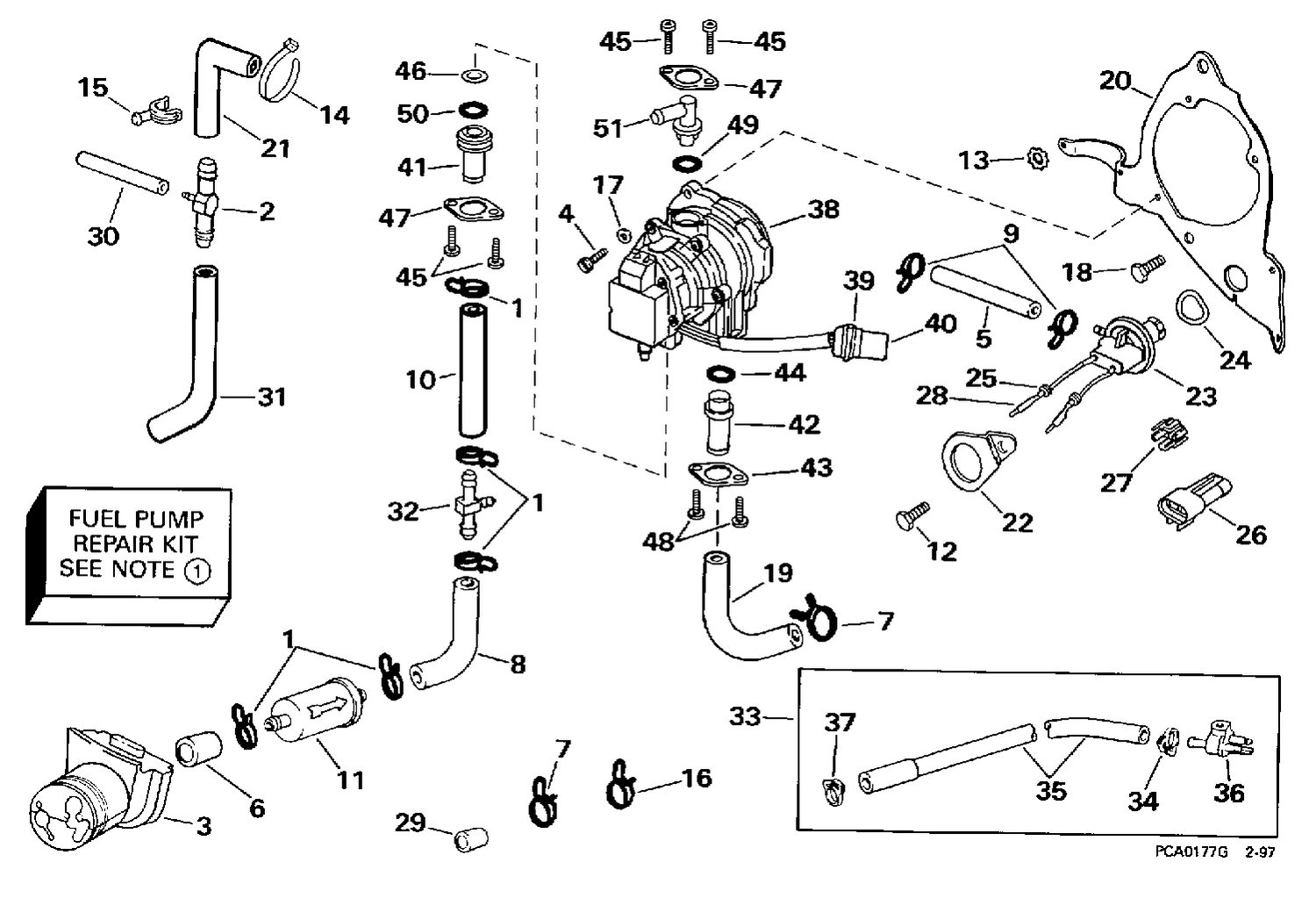

| Ref | Part Number | Description |
|---|
| 1 |
0339279 |
COLLIER DE SERRAGE, conduite de carburant |
| 2 |
0338896 |
RACCORD, T flexible d'eau |
| 3 |
0340721 |
GROMMET, Control cables & fuel hoses |
| 4 |
0344278 |
SCREW, Fuel pump to mount |
| 5 |
0333390 |
FLEXIBLE, palier inférieur vers vanne de contrôle |
| 6 |
0331649 |
CAP, Connector - fuel |
| 7 |
0339278 |
COLLIER DE SERRAGE |
| 8 |
0332281 |
HOSE, Fuel filter to pump |
| 9 |
0339276 |
SERRE-FILS |
| 10 |
HOSE, |
Tee to fuel pump, 3 in. (76mm) |
| 11 |
0360941 |
FUEL FILTER, 65 micron This part replaces 0398319. |
| 12 |
0331036 |
VIS, attache de palier |
| 14 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 15 |
0329661 |
SUPPORT/BOUCHON |
| 16 |
0339277 |
CLAMP, Exh back pressure hose |
| 18 |
0122147 |
VIS, connecteur |
| 19 |
HOSE, |
Pulse, 6 1/4 in. (159mm) |
| 20 |
0338894 |
BRACKET, Fuel components |
| 21 |
0332845 |
HOSE |
| 22 |
0338950 |
RETAINER, Vacuum switch |
| 23 |
0586544 |
VACUUM SWITCH This part replaces 0586034. |
| 24 |
0909678 |
JOINT TORIQUE, interrupteur d'aspiration vers support |
| 30 |
0331674 |
HOSE, Carb. to primer |
| 31 |
0339335 |
HOSE, Fuel tee to manifold |
| 32 |
0331995 |
TEE, Fuel hose to vacuum switch |
| 33 |
0398339 |
FUEL CONNECTOR & HOSE |
| 36 |
0393334 |
CONNECTEUR, carburant - mâle |
| 37 |
0329653 |
CLAMP |
| 38 |
5007420 |
Kit Ay This part replaces 0438400. |
| 43 |
0340201 |
RETAINER |
| 49 |
0335230 |
O-RING |
