Home / BRP / Can-Am ATV / 2015 / Outlander / Outlander 400 EFI, STD(International only), 2015 0005AFF00 / 10- Electrical System _20T1526

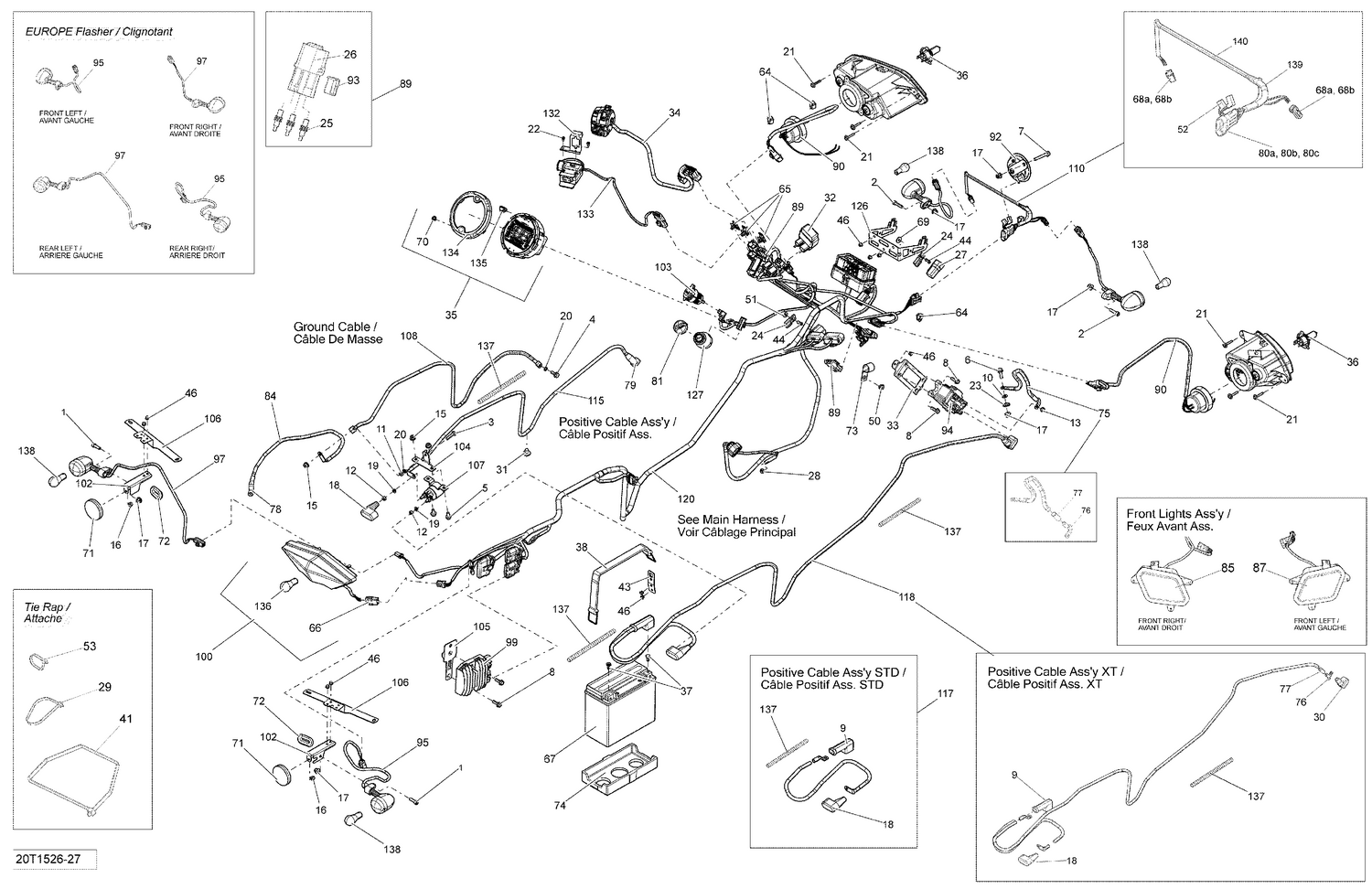

10- Electrical System _20T1526

10- Electrical System _20T1526

Parts (93)

RefPart NumberDescription
1 XXX Not Available As Spare Parts
2 XXX Not Available As Spare Parts
3 207162544 Hex. Screw M6 X 25
4 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
5 207661244 Hex. Flange Screw M6 X 12
6 XXX Not Available As Spare Parts
7 XXX Not Available As Spare Parts
8 210262050 Hexagonal Head Screw This part replaces 210262080.
10 XXX Not Available As Spare Parts
11 232061414 Hex. Nut M6
12 232061600 Hex. Nut M6
13 232561414 Elastic Stop Nut M6
15 233061414 Hex. Flange Nut M6
16 XXX Not Available As Spare Parts
17 233261414 Hex. Flange Elastic Nut M6 x 1.0
18 710001817 Protector Cap
19 234161601 Lock Washer Helical M6
20 234461608 External Serrated Lock Washer 6 mm
21 250000101 Plastite Screw Type K-40, M4 X 25
22 XXX Not Available As Spare Parts
23 XXX Not Available As Spare Parts
24 270000141 Clip
27 278002704 Diagnostic Connector
28 293650100 Oetiker Clamp
29 293750008 Tie Wrap 368 mm
30 XXX Not Available As Spare Parts
31 293730040 Mount Dart
32 XXX Not Available As Spare Parts
33 XXX Not Available As Spare Parts
34 XXX Not Available As Spare Parts
35 710003100 Speedometer Ass'y
36 710000871 Bulb, 12V 35/35W
37 250000282 Battery Bolt Kit This part replaces 295500849.
38 293850097 Retainer Strap
41 XXX Not Available As Spare Parts
43 293850030 Strap Clip
44 390402300 Pop Rivet 3/16"
46 390402400 Pop Rivet 3/16"
50 390406500 Pop Rivet 3/16"
51 250200081 FLAT WASHER - Call your local BRP dealership
52 XXX Not Available As Spare Parts
53 414115200 Tie-Rap 180 mm
64 414227300 Clip
65 515175283 Housing Support
66 515175494 Male Housing, 3 Circuits
67 410301203 Battery YUASA YTX20L
68a XXX Not Available As Spare Parts
68b XXX Not Available As Spare Parts
69 517124300 Washer
70 704904615 BRP Logo13 mm This part replaces 704901270.
71 XXX Not Available As Spare Parts
72 XXX Not Available As Spare Parts
73 705600311 CLAMP - Call your local BRP dealership
74 710000279 INSULATOR PAD - Call your local BRP dealership
75 XXX Not Available As Spare Parts
76 XXX Not Available As Spare Parts
77 219704447 Was 710000483 Heat Shrink Tubing
78 710000518 Open Barrel
79 710000526 Protector Cap
80a XXX Not Available As Spare Parts
80b XXX Not Available As Spare Parts
80c XXX Not Available As Spare Parts
84 710000830 Battery/Frame Ground Cable Ass'y
85 XXX Not Available As Spare Parts
87 XXX Not Available As Spare Parts
92 XXX Not Available As Spare Parts
93 XXX Not Available As Spare Parts
94 XXX Not Available As Spare Parts
95 XXX Not Available As Spare Parts
97 XXX Not Available As Spare Parts
99 710001103 Voltage Regulator
100 XXX Not Available As Spare Parts
102 XXX Not Available As Spare Parts
103 710001248 DC Outlet
104 710001260 SOLENOID SUPPORT - Call your local BRP dealership
105 710001262 RECTIFIER SUPPORT - Call your local BRP dealership
106 XXX Not Available As Spare Parts
107 710007777 Starter Relay This part replaces 710001364.
108 710001443 Ground Cable
110 XXX Not Available As Spare Parts
115 710001820 POSITIVE CABLE ASS'Y - Call your local BRP dealership
118 XXX Not Available As Spare Parts
120 XXX Not Available As Spare Parts
126 710002176 FUSE SUPPORT - Call your local BRP dealership
127 710002324 Ignition Switch
132 XXX Not Available As Spare Parts
133 XXX Not Available As Spare Parts
134 710001416 Trim Ring
135 710001473 Button
136 520000758 Bulb
137 710000497 PROTECTOR TUBE, 9 MM - Call your local BRP dealership
138 XXX Not Available As Spare Parts
139 XXX Not Available As Spare Parts
