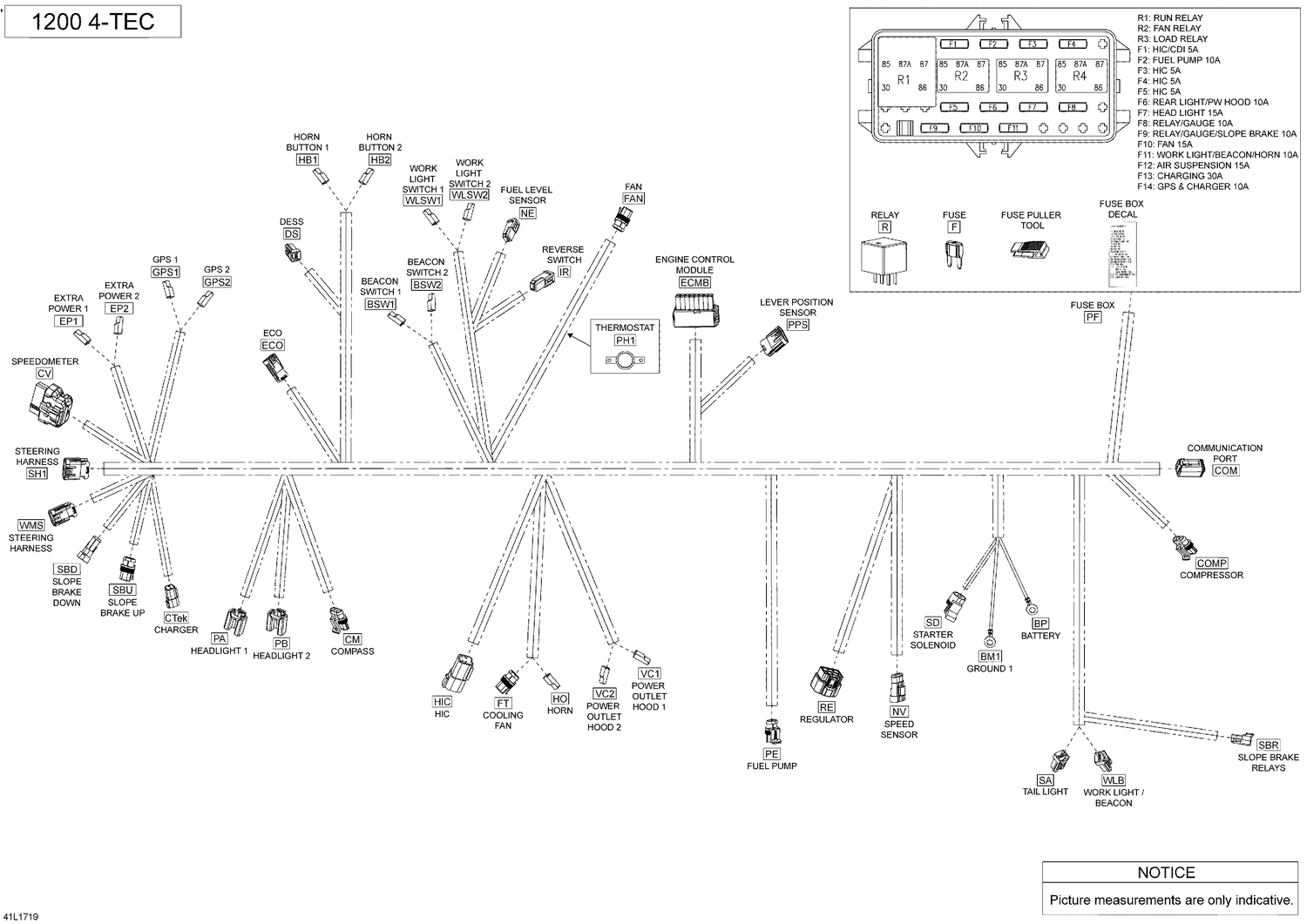

| Ref | Part Number | Description |
|---|
| BM1 |
278000992 |
Open Barrel |
| BP |
278000992 |
Open Barrel |
| BSW1 |
409010100 |
Female Terminal |
| BSW1 |
409010400 |
Female Housing, 1 Circuit |
| BSW2 |
409010100 |
Female Terminal |
| BSW2 |
409010400 |
Female Housing, 1 Circuit |
| CM |
278001014 |
Female Terminal |
| CM |
293750002 |
Tie-Rap 142 mm |
| CM |
409209600 |
Female Housing, 3 Circuits |
| CM |
515176621 |
Wire Seal |
| COM |
278000632 |
Female Terminal |
| COM |
293000052 |
Sealing Cap |
| COM |
515175673 |
Male Housing, 6 Circuits |
| COM |
515175678 |
Male Wedge, 6 Circuits |
| COMP |
278001014 |
Female Terminal |
| COMP |
409209600 |
Female Housing, 3 Circuits |
| COMP |
515176621 |
Wire Seal |
| CTek |
278001672 |
Lock |
| CTek |
278001674 |
Female Housing |
| CTek |
515175568 |
Male Terminal |
| CV |
515175801 |
Female Housing, 24 Circuits |
| CV |
515175802 |
Retainer Block |
| CV |
515175803 |
Wire Seal |
| CV |
515175804 |
BLOCK - Call your local BRP dealership |
| CV |
515175805 |
LOCK - Call your local BRP dealership |
| CV |
515175806 |
Female Terminal |
| CV |
515175812 |
Plug |
| CV |
710000399 |
Female Housing |
| ECMB |
710001589 |
Female Terminal |
| ECMB |
710001590 |
Female Terminal |
| ECMB |
710001591 |
Cover, 48 positions |
| ECMB |
710001592 |
Plug |
| ECMB |
710001593 |
Plug |
| ECMB |
710001967 |
Molex Housing, 48 Circuits |
| ECO |
710002593 |
Male Housing, 3 Circuits |
| EP1 |
409010100 |
Female Terminal |
| EP1 |
409010400 |
Female Housing, 1 Circuit |
| EP2 |
409010100 |
Female Terminal |
| EP2 |
409010400 |
Female Housing, 1 Circuit |
| F |
710000742 |
Little Fuse, 5 Ampere |
| F |
710000743 |
Fuse 7,5A |
| F |
710000744 |
Little Fuse, 10 Ampere |
| F |
710000745 |
Little Fuse, 15 Ampere |
| F |
710000746 |
Little Fuse, 20 Ampere |
| F |
710000747 |
Little Fuse, 30 Amperes |
| FAN |
278001013 |
Wire Seal |
| FAN |
278001014 |
Female Terminal |
| FAN |
409013700 |
Plug |
| FAN |
409209500 |
Female Housing, 2 Circuits |
| FT |
278001013 |
Wire Seal |
| FT |
278001014 |
Female Terminal |
| FT |
409013700 |
Plug |
| FT |
409209500 |
Female Housing, 2 Circuits |
| GPS1 |
409010100 |
Female Terminal |
| GPS1 |
409010400 |
Female Housing, 1 Circuit |
| GPS2 |
409010100 |
Female Terminal |
| GPS2 |
409010400 |
Female Housing, 1 Circuit |
| HB1 |
409010100 |
Female Terminal |
| HB1 |
409010400 |
Female Housing, 1 Circuit |
| HB2 |
409010100 |
Female Terminal |
| HB2 |
409010400 |
Female Housing, 1 Circuit |
| HIC |
278000632 |
Female Terminal |
| HIC |
278000738 |
Male Lock, 4 Circuits |
| HIC |
278000739 |
Male Housing, 4 Circuits |
| HIC |
293000052 |
Sealing Cap |
| HO |
409010100 |
Female Terminal |
| HO |
409010400 |
Female Housing, 1 Circuits |
| IR |
515175231 |
Female Terminal |
| IR |
515176296 |
Female Housing, 2 Circuits |
| NE |
515175232 |
Male Terminal |
| NE |
515175654 |
Male Housing, 2 Circuits |
| NV |
515176164 |
Male Terminal |
| NV |
515176621 |
Wire Seal |
| NV |
710000568 |
Male terminal housing |
| NV |
710000992 |
Clip |
| PA |
515176908 |
Female Housing |
| PA |
515176909 |
Terminal |
| PB |
515176908 |
Female Housing |
| PB |
515176909 |
Terminal |
| PE |
710000643 |
Wire Seal |
| PE |
710001132 |
Female Housing, 2 Circuits |
| PE |
710001133 |
Lock |
| PE |
710001134 |
Female Terminal |
| PF |
278000999 |
Wire Seal |
| PF |
278002172 |
Foam |
| PF |
415128501 |
Seal |
| PF |
415129856 |
Fuse Box Base Ass´y |
| PF |
516006398 |
Fuse Box Decal |
| PF |
710000781 |
Fuse Puller Tool |
| PF |
710000836 |
Female Terminal |
| PF |
710000837 |
Female Terminal |
| PF |
710000840 |
Plug |
| PF |
710001026 |
Fuse Box Cover |
| PH1 |
Not |
Available As Spare Part - Thermostat |
| PPS |
710000992 |
Clip |
| PPS |
Not |
Available As Spare Part - Male Housing, 6 Circuits |
| R |
515176774 |
Relay, 30 AMP |
| R |
515176775 |
Relay 50A |
| RE |
710000877 |
Female Terminal |
| RE |
710000879 |
Female Housing, 3 Circuits |
| RE |
710000881 |
Seal |
| RE |
710000882 |
Cap |
| RFID |
710000926 |
Seal |
| RFID |
710001114 |
Cap |
| RFID |
710001161 |
Housing |
| RFID |
710001162 |
Lock |
| RFID |
710001164 |
Female Terminal |
| SA |
515175231 |
Female Terminal |
| SA |
515175495 |
Female Housing, 3 Circuits |
| SBD |
409012900 |
Male Terminal |
| SBD |
409013700 |
Plug |
| SBD |
409209400 |
Male Housing, 2 Circuits |
| SBD |
515176621 |
Wire Seal |
| SBD |
710001343 |
Clip |
| SBR |
293000052 |
Sealing Cap |
| SBR |
409207600 |
Lock |
| SBR |
515175666 |
Male Housing, 3 Circuits |
| SBR |
515175821 |
Clip |
| SBR |
515175823 |
Male Terminal |
| SBU |
278001013 |
Wire Seal |
| SBU |
278001014 |
Female Terminal |
| SBU |
409013700 |
Plug |
| SBU |
409209500 |
Female Housing, 2 Circuits |
| SD |
515177192 |
Female Housing, 2 Circuits |
| SH1 |
710001929 |
Male Housing, 12 Circuit |
| VC1 |
409010100 |
Female Terminal |
| VC1 |
409010400 |
Female Housing, 1 Circuit |
| VC2 |
409010100 |
Female Terminal |
| VC2 |
409010400 |
Female Housing, 1 Circuit |
| WLB |
515175232 |
Male Terminal |
| WLB |
515175494 |
Male Housing, 3 Circuits |
| WLSW1 |
409010100 |
Female Terminal |
| WLSW1 |
409010400 |
Female Housing, 1 Circuit |
| WLSW2 |
409010100 |
Female Terminal |
| WLSW2 |
409010400 |
Female Housing, 1 Circuit |
| 1 |
515178125 |
Main Harness. Includes 1 To WMS |
| 2 |
409901600 |
Tubing 19mm |
| 2 |
409901700 |
Tubing 9mm |
| 2 |
409901800 |
Tubing 13mm |
| 2 |
409902200 |
Tubing 25mm |
| 2 |
415079900 |
Tubing 11mm |
| 2 |
415080000 |
Tubing 16mm |
| 2 |
515175442 |
Tubing 6mm |
| 2 |
Not |
Available As Spare Part - Tubing 22mm |
| 3 |
Not |
Available As Spare Part - Blue Coding Vinyl Tape |
