Home / BRP / EVINRUDE / 1995 / 60 / 03- Magneto 12V 290W

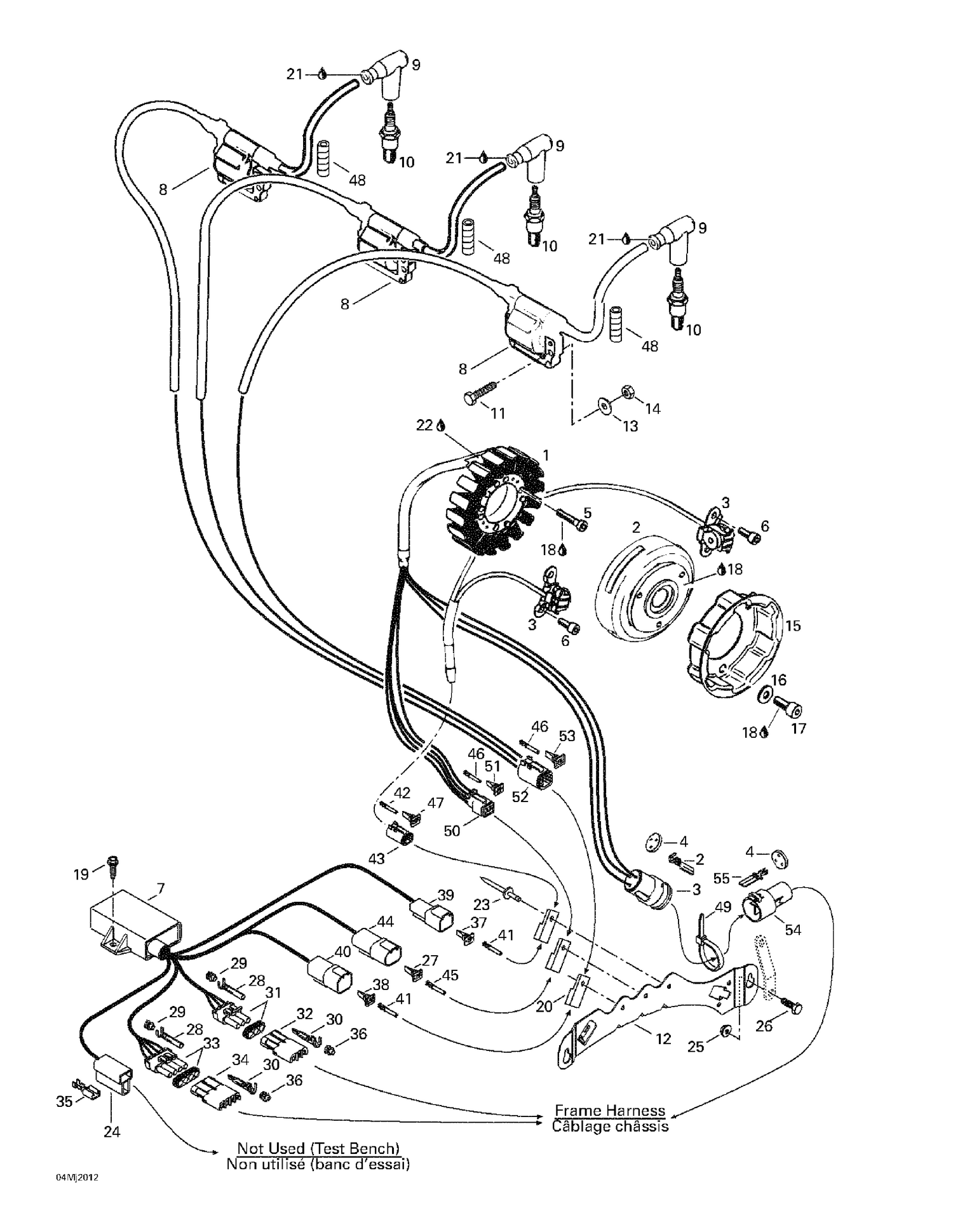

03- Magneto 12V 290W

03- Magneto 12V 290W

Parts (53)

RefPart NumberDescription
1 410922927 Stator Ass'y
2 410922930 Magneto Flywheel
3 410922909 Pick Up Ass'y
4 409208500 SEAL - Call your local BRP dealership
5 420840887 SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.
6 420840391 Allen Screw M6 X 14
7 515175457 Calibration Module
9 278000237 SPARK PLUG CAP - Call your local BRP dealership
10 219703120 Spark Plug NGK BR9ES This part replaces 414961100.
11 207162044 Hex. Screw M6 X 20
12 515175148 Housing Support
13 420945751 WASHER-LOCK DIN.128 - Call your local BRP dealership
14 232061414 Hex. Nut M6
15 420852418 Starting Pulley
16 420827405 Flat Washer
17 420841520 Socket Head Screw M8 X 12
18 293800060 Loctite 243, 10 ml
19 243141630 Hex. Plastic Screw M4.8 X 16 This part replaces 243141640.
20 270000141 Clip
21 219704453 Was 293550004 Dielectric Grease, 150 g
22 Not Available As Spare Part - Silastic 732 RTV, 100 ml
23 Not Available As Spare Part - Pop Rivet 3/16
24 409204600 FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership
25 233251434 Flange Elastic Nut M5 This part replaces 233251414.
26 207151444 Hex. Screw M5 X 14
27 710000046 MALE LOCK, 4 CIRCUITS - Call your local BRP dealership
28 278000223 Female Terminal
29 278000218 Wire Seal
30 278000222 Male Terminal
31 278000273 Male Housing, 3 Circuits
32 278000281 Female Terminal Housing, 3 Circuits
33 278000395 Male Housing, 4 Circuits
34 278000394 FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
35 561503100 FEMALE TERMINAL - Call your local BRP dealership This part replaces 515175252.
36 409208300 Seal
37 278000636 Female Wedge, 4 Circuits
38 278000735 Female Lock, 6 Circuits
39 278000635 Female Housing, 4 Circuits
40 278000137 Fuse Holder 8 Amp
41 278000631 Male Terminal
42 278000632 Female Terminal
43 278000739 Male Connector, 4 Circuits
44 710000045 MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership
45 409014800 MALE TERMINAL - Call your local BRP dealership
46 409015100 FEMALE TERMINAL - Call your local BRP dealership
47 278000738 Male Lock, 4 Circuits
48 219704407 Tubing 10 MM 1000MM Long
49 414115200 Tie-Rap 180 mm
50 515175245 Female Terminal Housing (4 circuits)
51 515175246 Female Lock (4 circuits)
52 710001540 CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736.
53 278000737 MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
54 409207900 MALE HOUSING - Call your local BRP dealership
