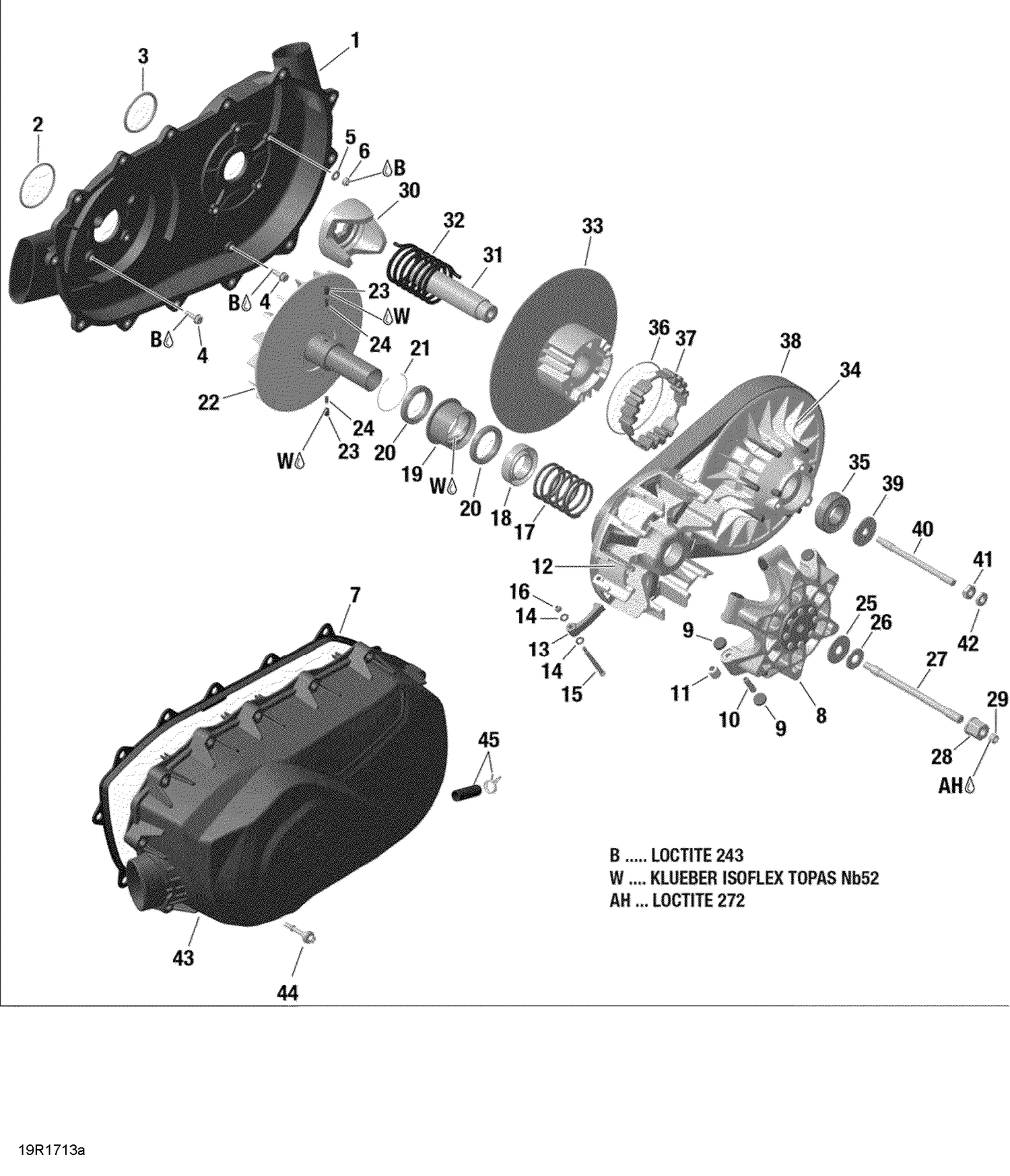

05- Transmission - 1000R EFI (Renegade)

Parts (43)

Ref	Part Number	Description
1	420612304	CVT Air Guide
2	420430409	O-Ring This part replaces 420430408.
3	420631089	O-Ring This part replaces 420631088.
4	420441311	Hex.Screw M6 X 20
5	224061121	Flat Washer
6	232561434	Elastic Stop Nut M6 This part replaces 420842040.
7	420430126	Gasket
8	420280664	Governor Cup
9	420281296	Slider Shoe Set
10	417223257	Roller Axle This part replaces 420233896.
11	417223767	Roller This part replaces 420229994.
12	420280467	Outer Haft
13	Not	Available As Spare Part - Lever
14	Not	Available As Spare Part - Thrust Washer
15	Not	Available As Spare Part - Screw
16	Not	Available As Spare Part - Lock Nut M5
17	420238617	Compression Spring, Drive Pulley
18	420627578	Seat Spring This part replaces 420627577.
19	420257195	Drive Pulley Clutch
20	420632377	Ball Bearing
21	420245951	Retaining Ring
22	420280374	Inner Half
23	420229577	Spring Sleeve
24	420239134	Spring
25	420427061	Washer 40 MM This part replaces 420282830.
26	420427054	Washer 30 MM This part replaces 420282820.
27	420441801	Stud Screw 12 X 172
28	420242381	Socket Set Screw
29	420441811	Nut
30	420280701	Cam This part replaces 420280700.
31	420220914	Driven Pulley Shaft
32	420638040	Compression Spring
33	420280499	Inner Half Ass'y
35	420932421	Ball Bearing
36	420245911	Retaining Ring
37	420660124	Torque Gear
38	422280366	V-Belt This part replaces 715000302.
39	420627594	Thrust Washer This part replaces 420627590.
40	420441900	Stud Screw M10 X 136
41	420242097	Nut M10
42	420242403	Hexagonal Nut M10 This part replaces 420242402.
43	420612316	Variator Cover This part replaces 420612310.
44	420440568	Hex Screw M6 X 30 This part replaces 420440567.
