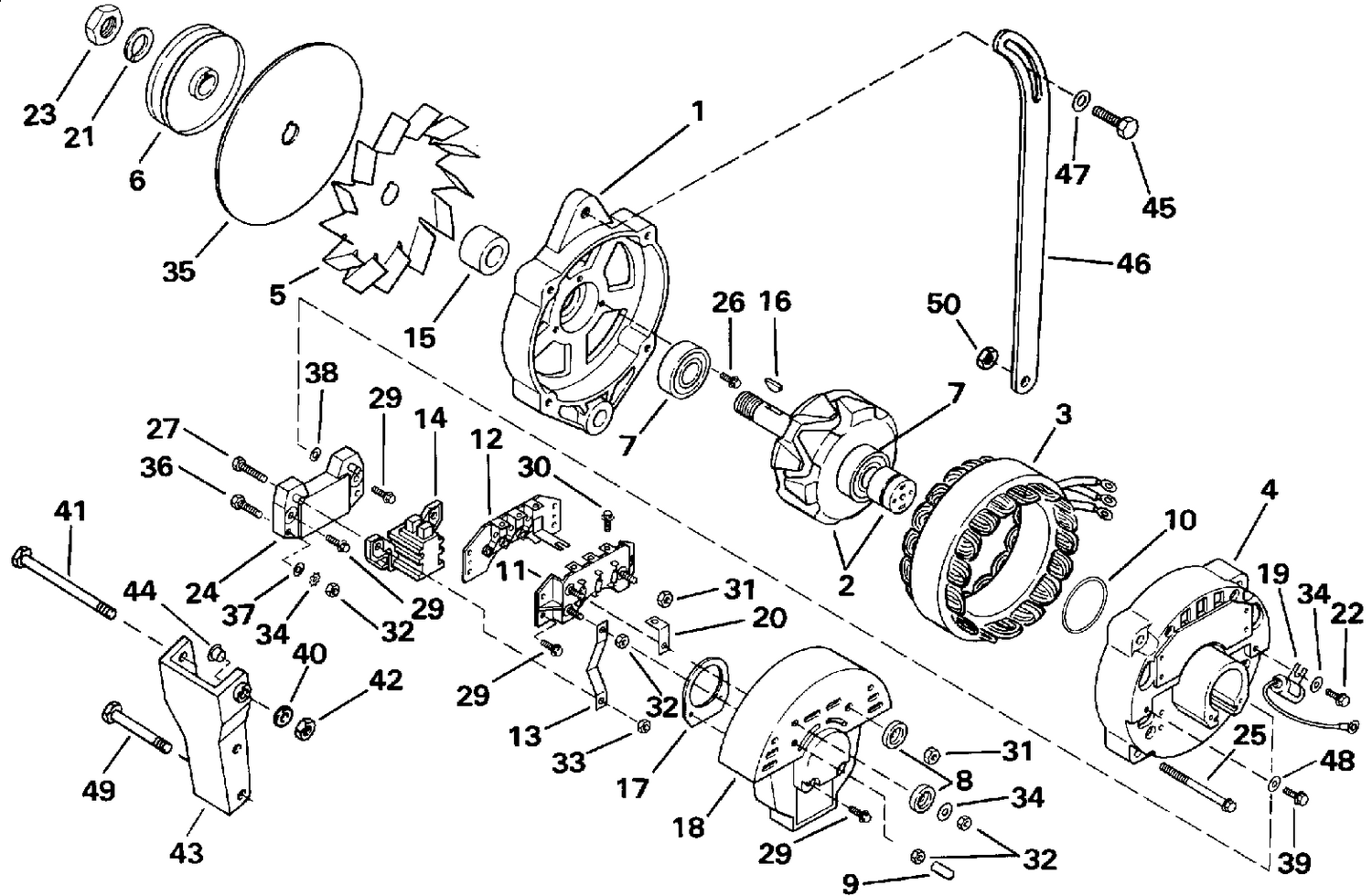

| Ref | Part Number | Description |
|---|
| 1 |
3852647 |
HOUSING, Front This part replaces 0912919. |
| 2 |
3853838 |
ROTOR ASSY. This part replaces 0985029. |
| 3 |
3853837 |
STATOR ASSY. This part replaces 0985028. |
| 4 |
3852646 |
HOUSING, Rear This part replaces 0912918. |
| 5 |
3852645 |
FAN This part replaces 0912917. |
| 6 |
3852644 |
PULLEY This part replaces 0912916. |
| 7 |
3852643 |
BEARING, Front & rear This part replaces 0912915. |
| 8 |
3852624 |
INSULATOR, Red This part replaces 0912893. |
| 9 |
3852623 |
INSULATOR, Boot This part replaces 0912892. |
| 10 |
3852642 |
RETAINER, Rear bearing This part replaces 0912914. |
| 11 |
3852641 |
DIODE FIELD This part replaces 0912913. |
| 12 |
3853836 |
DIODE BRIDGE This part replaces 0985027. |
| 13 |
3852640 |
STRAP, B+ This part replaces 0912912. |
| 14 |
3853835 |
BRUSH ASSEMBLY This part replaces 0985026. |
| 15 |
3852639 |
SPACER, Fan This part replaces 0912911. |
| 16 |
3852638 |
KEY, Woodruff This part replaces 0912910. |
| 17 |
3852637 |
FELT GASKET This part replaces 0912909. |
| 18 |
3853834 |
COVER ASSEMBLY This part replaces 0985025. |
| 19 |
3852636 |
CAPACITOR This part replaces 0912908. |
| 20 |
3852635 |
STRAP, AC Tap This part replaces 0912907. |
| 21 |
3852625 |
LOCK WASHER, Pulley This part replaces 0912894. |
| 22 |
3852736 |
SCREW, Alternator ground This part replaces 0913580. |
| 23 |
3852630 |
NUT, Pulley This part replaces 0912902. |
| 24 |
0985713 |
SCREW, Front housing |
| 25 |
3852634 |
BOLT, Through This part replaces 0912906. |
| 26 |
3852734 |
SCREW, Front housing This part replaces 0913578. |
| 27 |
3852629 |
SCREW, Regulator This part replaces 0912900. |
| 28 |
3852627 |
Washer This part replaces 0912896. |
| 29 |
3852735 |
SCREW, Diode field This part replaces 0913579. |
| 30 |
3852628 |
SCREW, Diode field This part replaces 0912898. |
| 31 |
3852633 |
NUT This part replaces 0912905. |
| 32 |
3852632 |
LOCKNUT This part replaces 0912904. |
| 33 |
3852631 |
Nut This part replaces 0912903. |
| 34 |
3852626 |
WASHER This part replaces 0912895. |
| 35 |
3853881 |
FAN BAFFLE This part replaces 0985889. |
| 36 |
3852737 |
SCREW, Terminal This part replaces 0913581. |
| 37 |
3852733 |
Washer This part replaces 0913577. |
| 38 |
3852732 |
WASHER, Insulator This part replaces 0913576. |
| 39 |
3852736 |
SCREW, Alternator ground This part replaces 0913580. |
| 41 |
3853367 |
SCREW Bracket This part replaces 0914901. |
| 42 |
0305496 |
LOCKNUT, Alternator to bracket |
| 43 |
3861465 |
Bracket & Bushing This part replaces 0985898. |
| 44 |
3852740 |
BUSHING, Alternator This part replaces 0913589. |
| 45 |
3853396 |
SCREW, Brace to alternator This part replaces 0915005. |
| 46 |
3852761 |
BRACE, Alternator This part replaces 0913691. |
| 49 |
3853547 |
SCREW, Bracket This part replaces 0915726. |
| 0985466 |
3860769 |
Alternator Kit This part replaces 0985466. |
