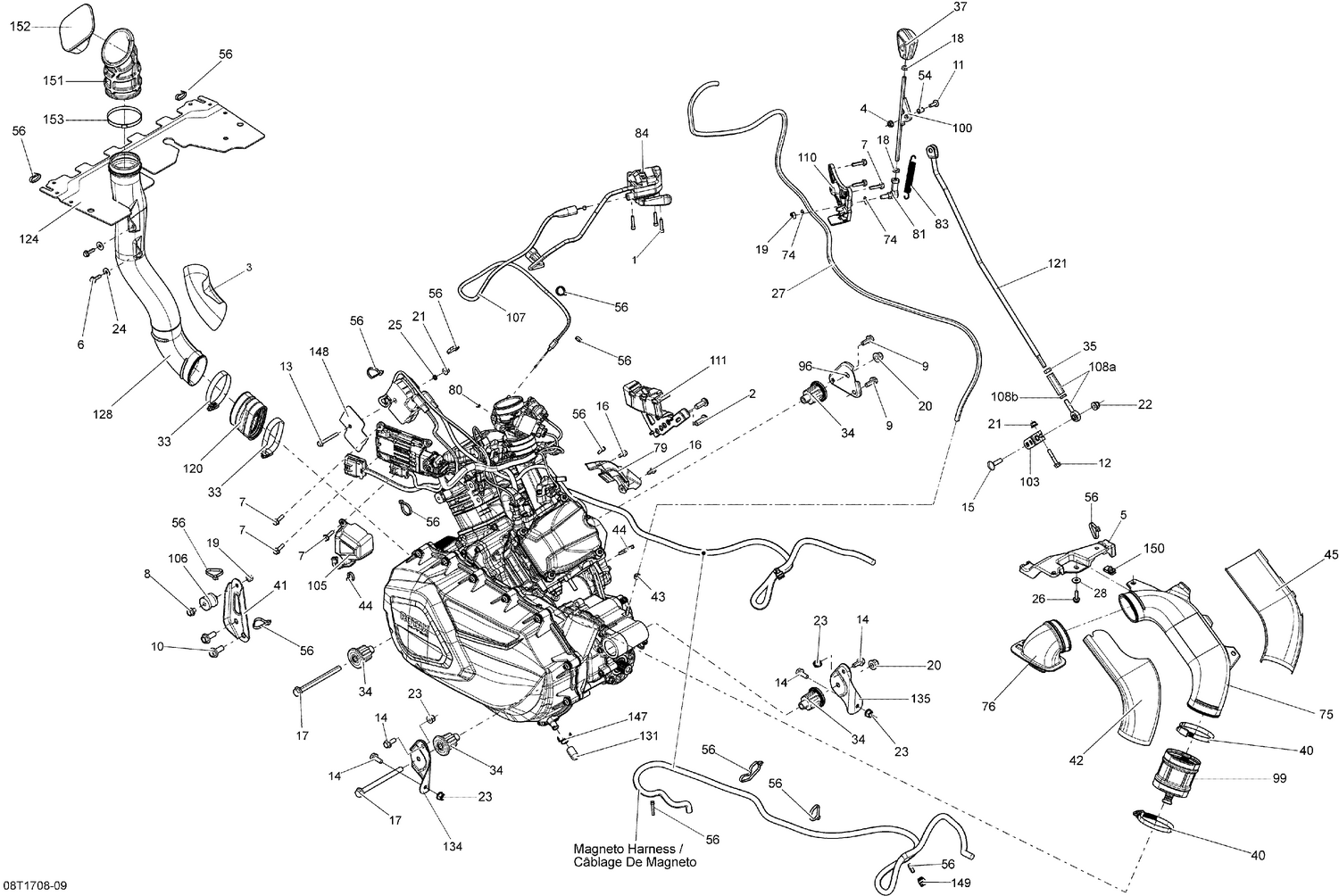

01- Engine And Engine Support
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205052588 | Socket Head Screw M5 X 25 |
| 2 | 205402556 | Screw Socket M10 X 25 This part replaces 205402596. |
| 3 | 707001654 | Heat Shield |
| 4 | 233161414 | Hex. Flange Nut M6 |
| 5 | 707001262 | Air Outlet Support |
| 6 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 7 | 207562544 | Hex. Flange Screw M6 X 25 |
| 8 | 207581046 | Flange Screw M8 x 10, Scotch Grip |
| 9 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 10 | 207602544 | Hex. Flange Screw M10 X 25 |
| 11 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 12 | 207663544 | Hex. Flange Screw M6 X 35 |
| 13 | 207665044 | Hex. Flange Screw M6 X 50 |
| 14 | 207682046 | Hex. Flange Screw M8 X 20 |
| 15 | 207783044 | Carriage Bolt M8 X 30 |
| 16 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 17 | 230602546 | Hex. Flange Screw M10 X 125 |
| 18 | 232180600 | Hex. Jam Nut M8 |
| 19 | 232581414 | Hex. Elastic Stop Nut M8 |
| 20 | 233201436 | Hex. Flange Elastic Nut M10 |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 22 | 233281414 | Hex. Flange Elastic Nut M8 |
| 23 | 233281416 | Hex. Elastic Flange Nut M8 |
| 24 | 234062600 | Flat Washer M6, Stainless |
| 25 | 234461608 | External Serrated Lock Washer 6 mm |
| 26 | 207662044 | Hex. Flange Screw M6 X 20 |
| 27 | 219704410 | Polyurethane Hose 10000Mm Long |
| 28 | 234062410 | Flat Washer 6 mm |
| 33 | 293650091 | Norma Clamp |
| 34 | 707001169 | Vibration Damper |
| 35 | 250100144 | Hex. Nut M8, LH Threads |
| 37 | 707003211 | Lever Trim This part replaces 707000965. |
| 40 | 293650118 | Norma Gear Clamp |
| 42 | 707001205 | Heat Shield |
| 43 | 293650195 | Clamp, Oetiker |
| 44 | 293750002 | Tie Wrap 142 mm |
| 45 | 707001206 | Heat Shield |
| 54 | 293900019 | Bushing |
| 56 | 414115200 | Tie-Rap 180 mm |
| 74 | 506151252 | Washer |
| 75 | 706600019 | Air Outlet |
| 76 | 706600400 | CVT Cooling Duct Out This part replaces 706600024. |
| 79 | 707000410 | Cover OPS |
| 80 | 707000434 | Cable Guide |
| 81 | 707001959 | RH Ball Joint This part replaces 707000546. |
| 83 | 707000577 | Spring |
| 84 | 707001518 | Throttle Handle |
| 96 | 707003319 | Engine Support This part replaces 707000761. |
| 99 | 707001168 | CVT Air Outlet Adaptor |
| 103 | 707000911 | Lever |
| 105 | 707000945 | Cover |
| 106 | 707000949 | Rubber Isolator |
| 107 | 707000955 | Throttle Cable |
| 108b | 232180600 | Hex. Jam Nut M8 |
| 110 | 707003054 | Lever Support This part replaces 707000971. |
| 111 | 707003053 | Cable Support This part replaces 707001637. |
| 120 | 707002585 | Flexibale Adaptor This part replaces 707001467. |
| 121 | 707002068 | Shifter Rod This part replaces 707001015. |
| 124 | 707001124 | Upper Water Deflector |
| 128 | 707002067 | CVT Air Inlet This part replaces 707001163. |
| 131 | 707001185 | Plug |
| 134 | 707001191 | LH Rear Engine Bracket |
| 135 | 707001192 | RH Rear Engine Bracket |
| 147 | 707800506 | Retainer Clip |
| 148 | 710000073 | Insulator Pad |
| 149 | 710002896 | Tie-Rap Clip |
| 150 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 151 | 707001864 | CVT Inlet This part replaces 705008019. |
| 152 | 707001786 | CVT Filter This part replaces 707000776. |
