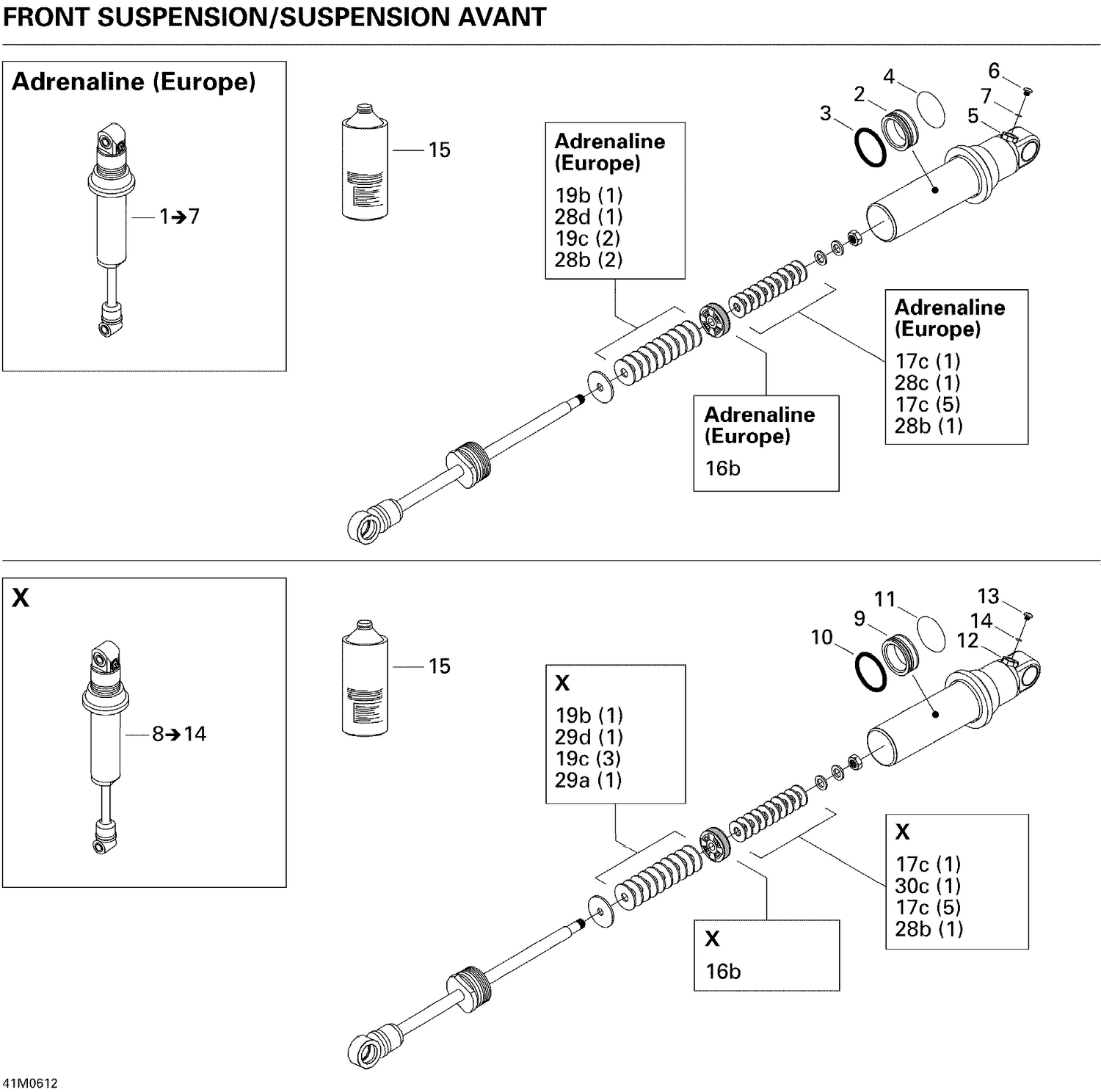

07- Take Apart Shock, Front 800HO

07- Take Apart Shock, Front 800HO

Parts (67)

RefPart NumberDescription
15 293600035 Shock Oil, 1 Liter
16a 414888304 Piston (C36)
16b Not Available As Spare Part - Piston (2 X 0.3-1) (C36)
16c 414888305 Piston (2 X 0.3-2) (C36)
16d Not Available As Spare Part - Piston (2 x 0.3-3) (C36)
16e 414888306 Piston (2 X 0.3-4) (C36)
16f Not Available As Spare Part - Piston (2 x 0.3-5) (C36)
16g 414888307 Piston (2 X 0.3-6) (C36)
17a 415039100 Leaf Valve Ø30 X 0.254 (C36)
17b 414888318 Leaf Valve Ø30 X 0.203 (C36)
17c 414888319 Leaf Valve Ø30 X 0.152 (C36)
17d Not Available As Spare Part - Leaf Valve Ø30 x 0.114 (C36)
18a Not Available As Spare Part - Leaf Valve Ø28 x 0.254 (C36)
18b 414888320 Leaf Valve Ø28 X 0.203 (C36)
18c 414888321 Leaf Valve Ø28 X 0.152 (C36)
18d Not Available As Spare Part - Leaf Valve Ø28 x 0.114 (C36)
19a 415039000 Leaf Valve Ø26 X 0.254 (C36)
19b 414888322 Leaf Valve Ø26 X 0.203 (C36)
19c 414888323 Leaf Valve Ø26 X 0.152 (C36)
19d Not Available As Spare Part - Leaf Valve Ø26 x 0.114 (C36)
20a Not Available As Spare Part - Leaf Valve Ø24 x 0.254 (C36)
20b Not Available As Spare Part - Leaf Valve Ø24 x 0.203 (C36)
20c Not Available As Spare Part - Leaf Valve Ø24 x 0.152 (C36)
20d Not Available As Spare Part - Leaf Valve Ø24 x 0.114 (C36)
21a Not Available As Spare Part - Leaf Valve Ø22 x 0.254 (C36)
21b 414888324 Leaf Valve Ø22 X 0.203 (C36)
21c 414888325 Leaf Valve Ø22 X 0.152 (C36)
21d Not Available As Spare Part - Leaf Valve Ø22 x 0.114 (C36)
22a Not Available As Spare Part - Leaf Valve Ø21 x 0.254 (C36)
22b Not Available As Spare Part - Leaf Valve Ø21 x 0.203 (C36)
22c Not Available As Spare Part - Leaf Valve Ø21 x 0.152 (C36)
22d 414888340 Leaf Valve Ø21 X 0.114 (C36)
23a Not Available As Spare Part - Leaf Valve Ø20 x 0.254 (C36)
23b 414888326 Leaf Valve Ø20 X 0.203 (C36)
23c 414888327 Leaf Valve Ø20 X 0.152 (C36)
23d 414888328 Leaf Valve Ø20 X 0.114 (C36)
24a Not Available As Spare Part - Leaf Valve Ø19 x 0.254 (C36)
24b Not Available As Spare Part - Leaf Valve Ø19 x 0.203 (C36)
24c Not Available As Spare Part - Leaf Valve Ø19 x 0.152 (C36)
24d Not Available As Spare Part - Leaf Valve Ø19 x 0.114 (C36)
25a Not Available As Spare Part - Leaf Valve Ø18 x 0.254 (C36)
25b 414888329 Leaf Valve Ø18 X 0.203 (C36)
25c 414888330 Leaf Valve Ø18 X 0.152 (C36)
25d Not Available As Spare Part - Leaf Valve Ø18 x 0.114 (C36)
26a Not Available As Spare Part - Leaf Valve Ø17 x 0.254 (C36)
26b Not Available As Spare Part - Leaf Valve Ø17 x 0.203 (C36)
26c Not Available As Spare Part - Leaf Valve Ø17 x 0.152 (C36)
26d Not Available As Spare Part - Leaf Valve Ø17 x 0.114 (C36)
27a 414888331 Leaf Valve Ø16 X 0.254 (C36)
27b 414888332 Leaf Valve Ø16 X 0.203 (C36)
27c 414888333 Leaf Valve Ø16 X 0.152 (C36)
27d 415038900 Leaf Valve Ø16 X 0.114 (C36)
28a 414888334 Leaf Valve Ø15 X 0.254 (C36)
28b 414888335 Leaf Valve Ø15 X 0.203 (C36)
28c 414888336 Leaf Valve Ø15 X 0.152 (C36)
28d 414888337 Leaf Valve Ø15 X 0.114 (C36)
29a Not Available As Spare Part - Leaf Valve Ø14 x 0.254 (C36)
29b Not Available As Spare Part - Leaf Valve Ø14 x 0.203 (C36)
29c Not Available As Spare Part - Leaf Valve Ø14 x 0.152 (C36)
29d Not Available As Spare Part - Leaf Valve Ø14 x 0.114 (C36)
30a Not Available As Spare Part - Leaf Valve Ø13 x 0.254 (C36)
30b Not Available As Spare Part - Leaf Valve Ø13 x 0.203 (C36)
30c Not Available As Spare Part - Leaf Valve Ø13 x 0.152 (C36)
30d Not Available As Spare Part - Leaf Valve Ø13 x 0.114 (C36)
31a 503189538 Leaf Valve Ø12 X 0.254 (C36)
31b 414888338 Leaf Valve Ø12 X 0.203 (C36)
31c 414888339 Leaf Valve Ø12 X 0.152 (C36)
