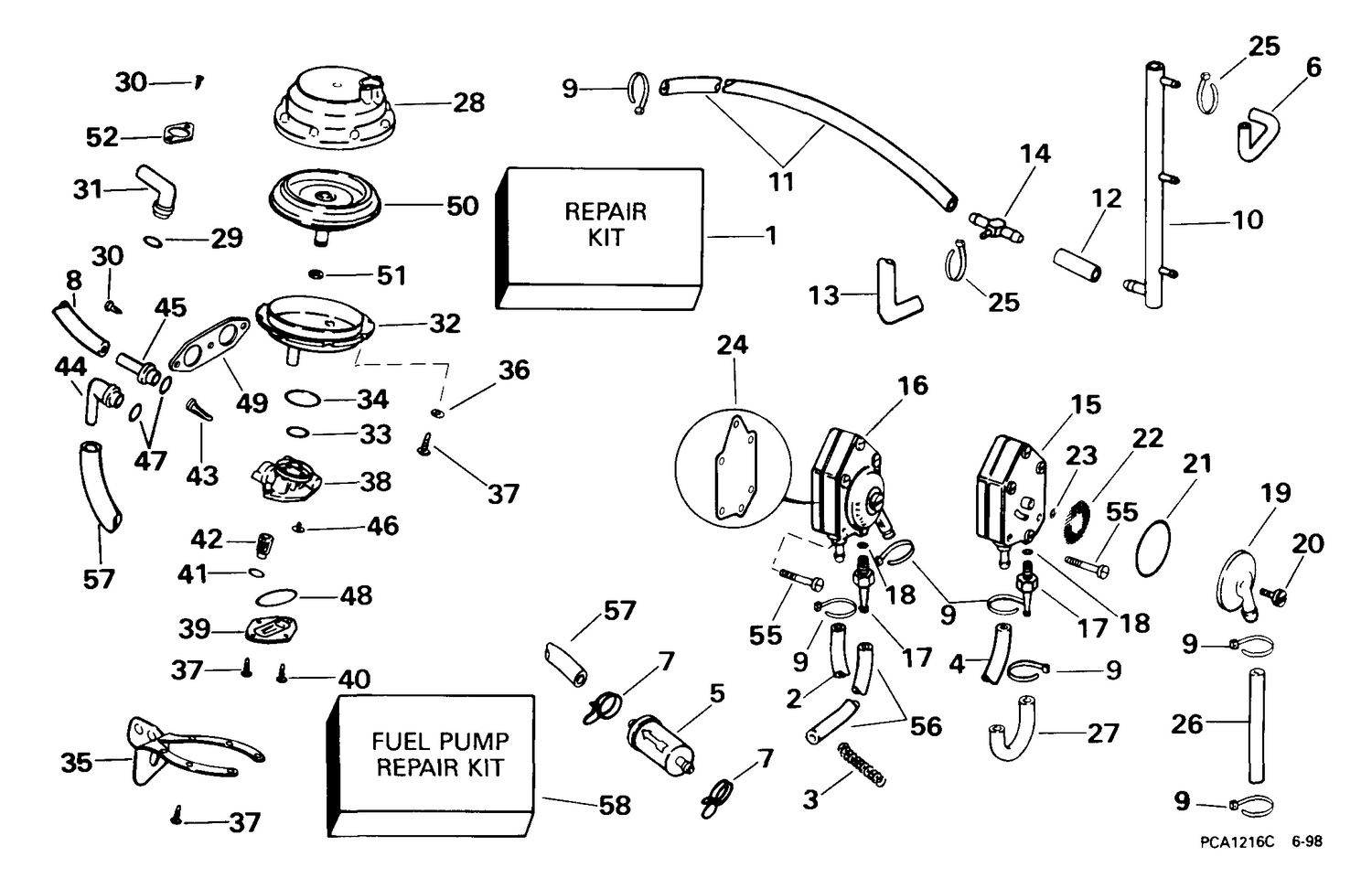

| Ref | Part Number | Description |
|---|
| 1 |
0436537 |
REPAIR KIT, Mixing unit |
| 2 |
0342865 |
PULSE HOSE, Stbd. pump |
| 3 |
0315942 |
SPRING |
| 4 |
0342866 |
HOSE, Port pump to crankcase |
| 5 |
0398327 |
FILTER, MAP sensor |
| 6 |
0339367 |
HOSE, Manifold to carburetor |
| 7 |
0339278 |
COLLIER DE SERRAGE |
| 8 |
HOSE |
ASSY., Tank to mixer, 2 in. (50mm) |
| 9 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 10 |
0436032 |
FUEL MANIFOLD ASSY. |
| 11 |
HOSE, |
Mixing unit to manifold, 16 1/2 in. (41 9mm) |
| 12 |
HOSE, |
Fuel tee to manifold, 1 1/2 in. (38mm) |
| 14 |
0338896 |
RACCORD, T flexible d'eau |
| 15 |
0438557 |
FUEL PUMP Assy |
| 16 |
0438559 |
FUEL PUMP ASSY., Lower |
| 26 |
0333635 |
HOSE, Filter to fuel manifold |
| 27 |
0334131 |
FLEXIBLE, impulsions |
| 38 |
5004724 |
Mixing Unit Ay This part replaces 0436613. |
| 42 |
5004724 |
Mixing Unit Ay This part replaces 0436708. |
| 48 |
0314491 |
O RING |
| 52 |
0340201 |
RETAINER |
| 55 |
0342389 |
SCREW, Fuel pump mounting, M5 |
| 56 |
0333395 |
HOSE, Connector to filter |
| 57 |
0332845 |
HOSE |
| 0438052 |
5004724 |
Mixing Unit Ay This part replaces 0438052. |
