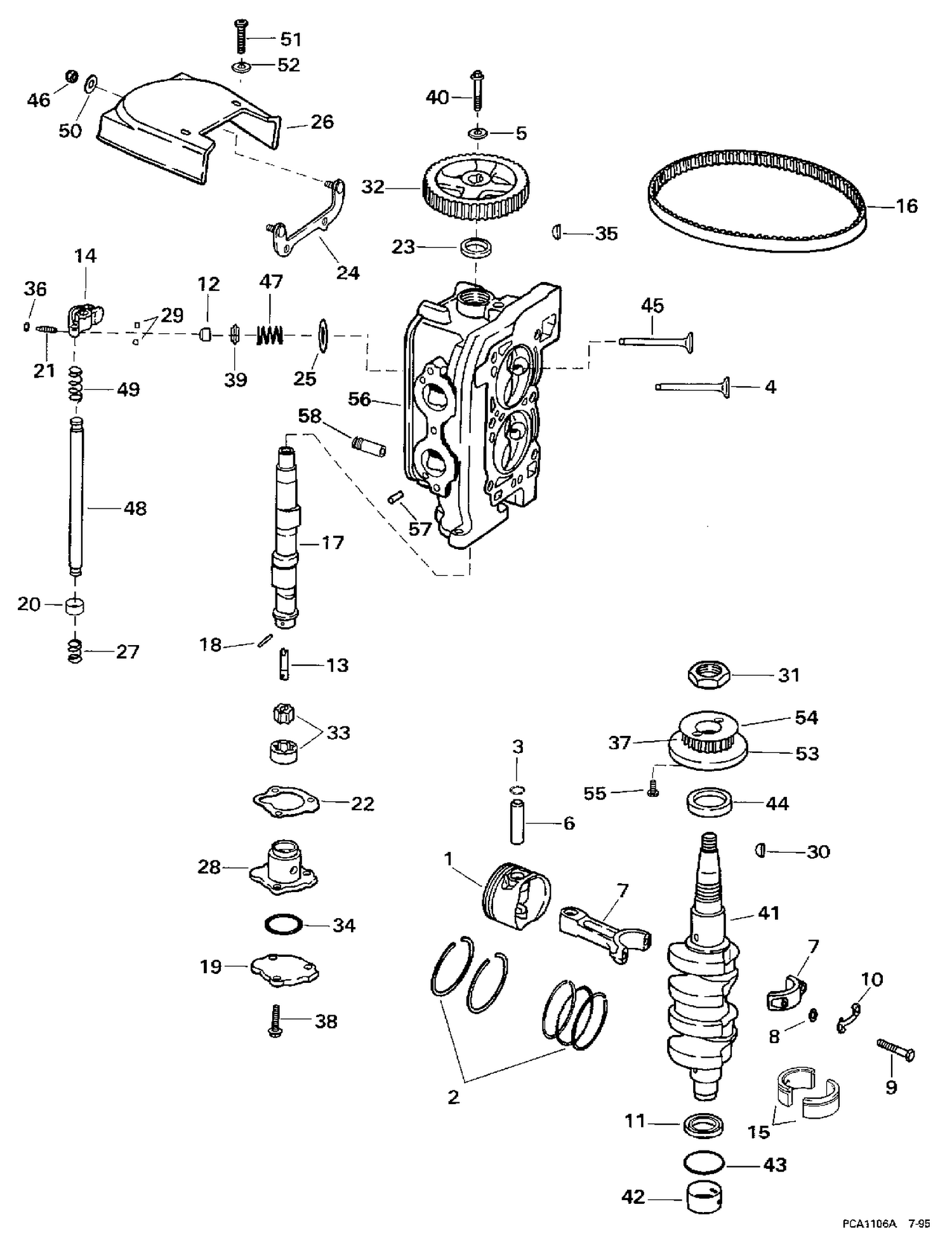

| Ref | Part Number | Description |
|---|
| 1 |
0437776 |
PISTON & RING, Standard |
| 1 |
0437777 |
PISTON & RING, 0.030 in. O.S. |
| 4 |
0337242 |
VALVE, Intake |
| 6 |
0337200 |
WRIST PIN |
| 7 |
0434837 |
CONNECTING ROD ASSY. |
| 8 |
0329241 |
RONDELLE This part replaces 0306482. |
| 10 |
0340168 |
TAB, Locking |
| 11 |
0337235 |
SEAL, Crankshaft, lower |
| 12 |
0337237 |
SEAL, Valve |
| 13 |
0338324 |
SHAFT, Camshaft to oil pump |
| 14 |
0438264 |
ARM ASSY., Rocker |
| 15 |
0437022 |
BEARING ASSY., Main |
| 16 |
0339320 |
BELT, Drive |
| 17 |
0435284 |
CAMSHAFT ASSY. |
| 19 |
0338166 |
COVER, Oil pump |
| 20 |
0340531 |
CUP, Spring to rocker arm |
| 21 |
0337233 |
SCREW, Cylinder valve adjustment |
| 22 |
0338167 |
GASKET, Oil pump to cylinder head |
| 24 |
0437122 |
BRACKET & STUD ASSY., Belt cover |
| 25 |
0337238 |
SEAT, Valve spring |
| 26 |
0341259 |
COVER, Drive belt |
| 27 |
0339209 |
SPRING, Shaft, rocker arm to cyl. hd. |
| 28 |
0343232 |
HOUSING, Oil pump |
| 29 |
0337229 |
KEEPER, Valve |
| 31 |
0337214 |
NUT, Pulley to crankshaft |
| 32 |
0337197 |
PULLEY, Cam |
| 33 |
0434831 |
PUMP ASSY., Oil |
| 34 |
0321921 |
JOINT TORIQUE |
| 36 |
0337226 |
NUT, Adjustment screw, rocker arm |
| 37 |
0346353 |
PULLEY ASSY., Belt drive, crkshft. This part replaces 0337199. |
| 39 |
0337230 |
RETAINER, Valve spring |
| 40 |
0339019 |
SCREW, Front, lower cover, M6x40 |
| 44 |
0337236 |
SEAL, Crankshaft, upper |
| 45 |
0337241 |
VALVE, Exhaust |
| 47 |
0337240 |
SPRING, Valve |
| 48 |
0337216 |
SHAFT, Rocker arm |
| 49 |
0337210 |
SPRING, Shaft, rocker arm |
| 50 |
0329241 |
RONDELLE |
| 51 |
0341261 |
SCREW, Belt cover to lift bracket |
| 53 |
0338338 |
GUIDE, Belt, lower |
| 54 |
0338337 |
GUIDE, Belt, upper |
| 55 |
0338317 |
SCREW, Lower belt guide |
| 56 |
0437992 |
CYLINDER HEAD (Bare) |
| 0435950 |
0435950 |
CRANKSHAFT ASSY. |
