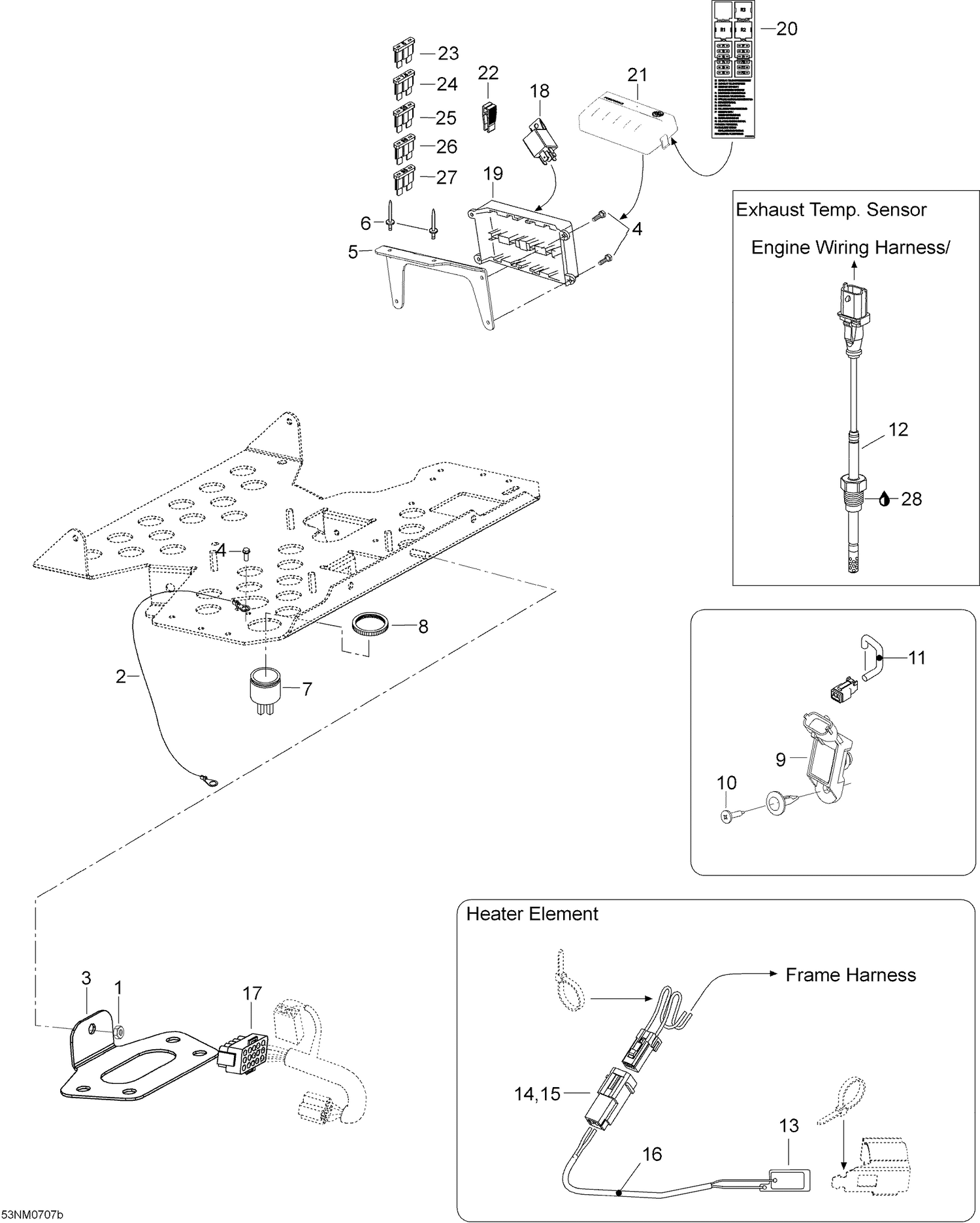

| Ref | Part Number | Description |
|---|
| 1 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 2 |
605153857 |
Ground wire |
| 3 |
605454122 |
Support |
| 4 |
210251650 |
Screw-Forming Hex.Hd.Fl.Bzn This part replaces 210251680. |
| 5 |
605352413 |
Support, fuse housing |
| 6 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 7 |
515176035 |
HORN - Call your local BRP dealership |
| 8 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 9 |
270600040 |
Pressure Sensor This part replaces 420274055. |
| 10 |
414745900 |
Phillips-screw |
| 11 |
39023 |
Plastic Tubing d=6, musta - Call your local BRP dealership |
| 12 |
514054641 |
Temperature Sensor This part replaces 515176490. |
| 13 |
515176256 |
Heater element |
| 14 |
515175654 |
Male terminal housing (2 circuits) |
| 15 |
515175232 |
Male terminal |
| 16 |
42066 |
Tubing |
| 17 |
42617 |
Male housing |
| 18 |
515177672 |
Relais *Relay This part replaces 410113604. |
| 19 |
515176065 |
FUSE BOX BASE - Call your local BRP dealership |
| 20 |
605452667 |
Decal |
| 21 |
515176066 |
COVER - Call your local BRP dealership |
| 22 |
515175811 |
FUSE TOOL - Call your local BRP dealership |
| 23 |
42040 |
Fuse 5A |
| 24 |
42041 |
Fuse 7.55A |
| 25 |
42045 |
Fuse 15A |
| 26 |
42042 |
Fuse 20A |
| 27 |
42043 |
Fuse 30A |
