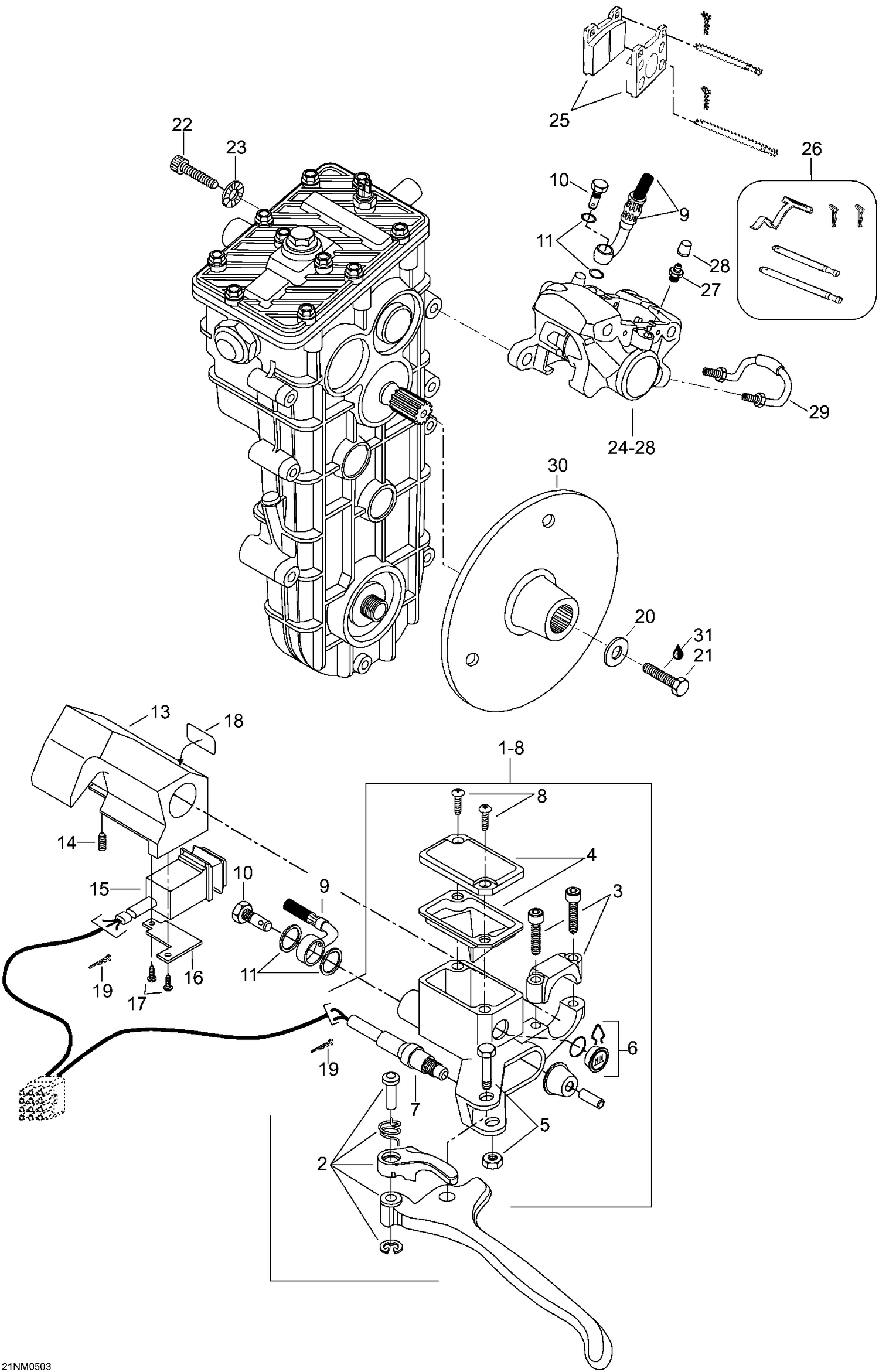

| Ref | Part Number | Description |
|---|
| 2 |
507032268 |
BRAKE SHORT LEVER ASSY - Call your local BRP dealership |
| 3 |
507032477 |
Clamp This part replaces 415029800. |
| 4 |
415029900 |
Cover |
| 5 |
415030000 |
Pin Ass'y |
| 6 |
414990600 |
WINDOW - Call your local BRP dealership |
| 7 |
507032366 |
Microswitch ass'y This part replaces 507032334. |
| 8 |
216141260 |
SCREW M4 X 12 - Call your local BRP dealership |
| 9 |
507032219 |
HOSE - Call your local BRP dealership |
| 10 |
414920500 |
Bolt |
| 11 |
414920600 |
Washer |
| 13 |
572079500 |
DIMMER SWITCH HOUSING - Call your local BRP dealership |
| 14 |
414440800 |
Socket Set Screw M8 X 10 |
| 15 |
515175371 |
Switch |
| 16 |
517283800 |
Housing-plate |
| 17 |
414473200 |
Screw |
| 18 |
415025500 |
Switch decal |
| 19 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 20 |
546336 |
Washer |
| 21 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 22 |
40277 |
Socket head screw M10 x 65 |
| 23 |
20068 |
Lock washer |
| 25 |
415084600 |
Brake lining kit |
| 26 |
414990700 |
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership |
| 27 |
414989800 |
BLEEDER SCREW - Call your local BRP dealership |
| 28 |
414989700 |
BOOT-QTS 20 - Call your local BRP dealership |
| 29 |
414989900 |
RIGID TUBING - Call your local BRP dealership |
