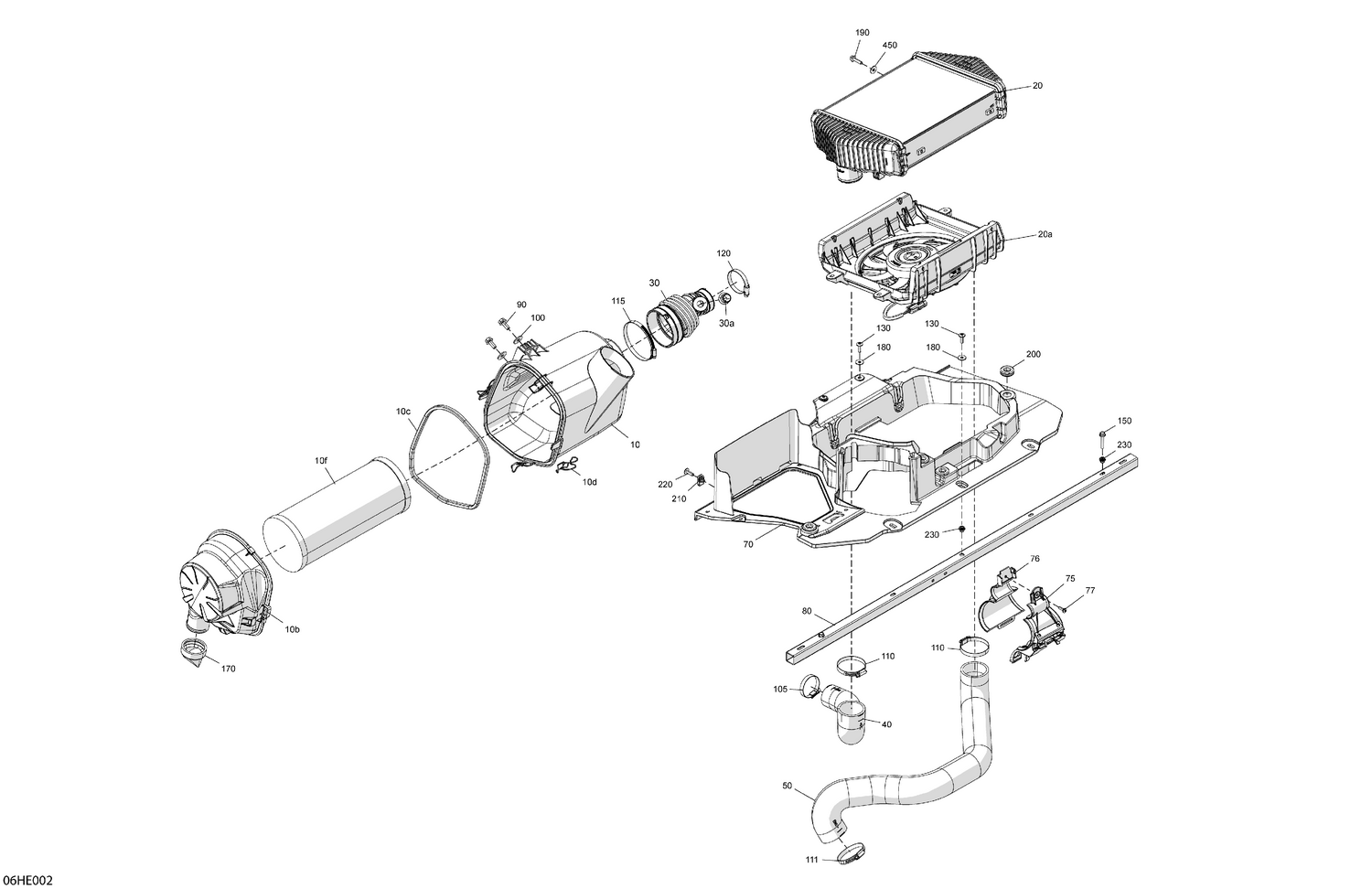

02- Engine - Air Intake
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 707800852 | Cover |
| 10c | 707800853 | Gasket Intake Silencer |
| 10d | 293730086 | Clip |
| 10f | 715900422 | Premium Air Filter |
| 20a | 715900625 | Fan C876-016-5000 |
| 30a | 273000234 | Breather Valve |
| 40 | 707800866 | Hose |
| 50 | 707800867 | Hose |
| 70 | 707801049 | Radiator Support |
| 75 | 707900934 | Hose Support |
| 76 | 707900762 | Hose Support |
| 77 | 250000720 | Torx Screw K50 X 16 |
| 80 | 707801133 | Square Tube |
| 90 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 100 | 234082410 | Flat Washer 8 mm |
| 105 | 293650303 | Mounting Clamp |
| 110 | 293650302 | Mounting Clamp |
| 111 | 293650302 | Mounting Clamp |
| 115 | 514052924 | Norma Clamp |
| 120 | 293650303 | Mounting Clamp |
| 130 | 250000722 | Torx Screw M6 X 20 |
| 150 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 170 | 715003114 | Duct Bill Valve |
| 180 | 234062670 | Stainless Steel Flat Washer |
| 190 | 207562544 | Hex. Flange Screw M6 X 25 |
| 200 | 517303756 | Grommet |
| 210 | 250100198 | Panel Nut M6 X 1.0 |
| 220 | 250000722 | Torx Screw M6 X 20 |
| 230 | 250100199 | Insert Half Hex Body M6 x 1.0 |
