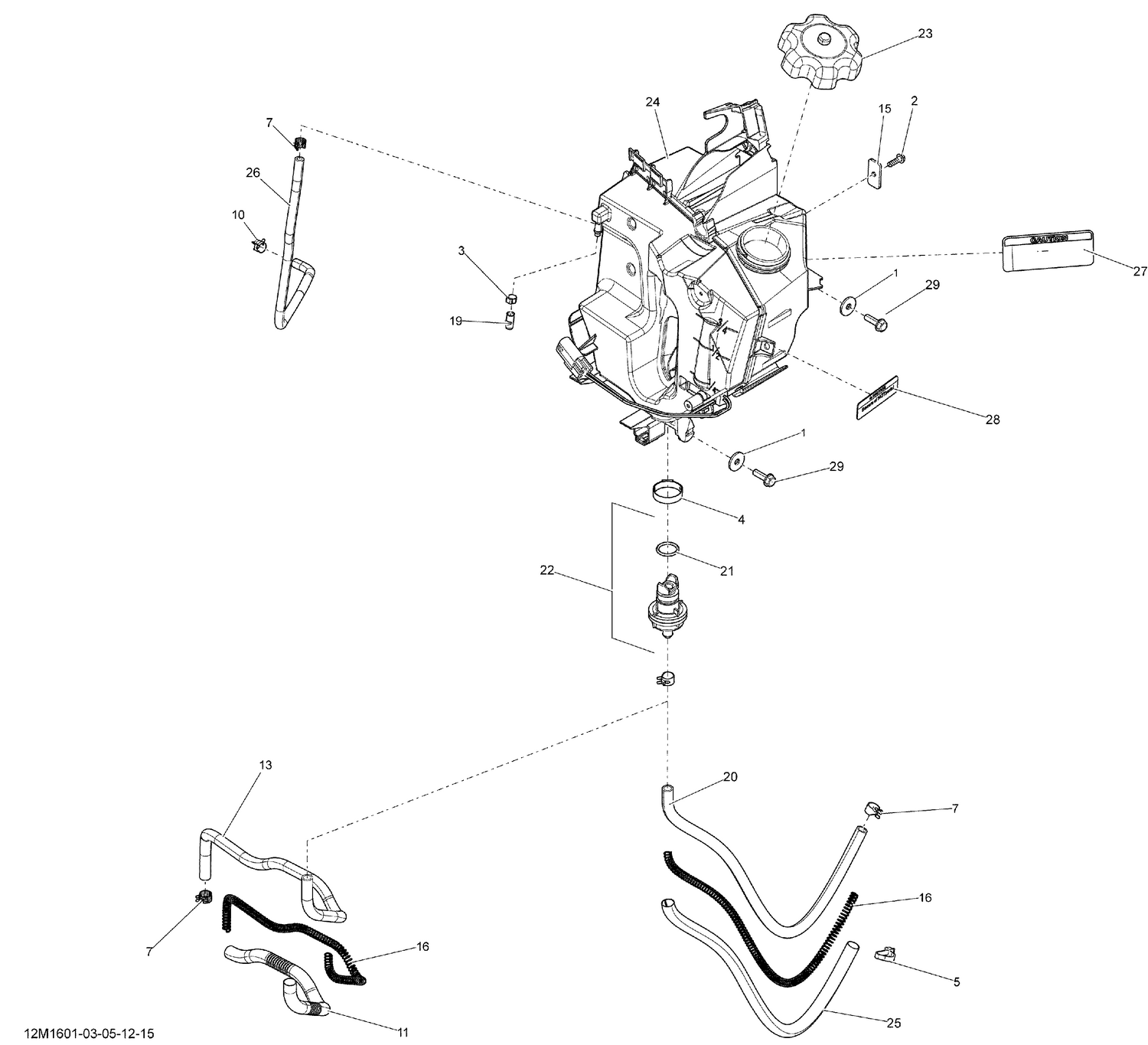

02- Oil System - 600 CARB
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 224061201 | Flat Washer |
| 2 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 3 | 293650043 | Oetiker Gear Clamp |
| 4 | 293650099 | Crimp Clamp |
| 5 | 414415200 | Spring Clamp |
| 7 | 414420700 | Spring Clamp |
| 10 | 414554800 | Spring Clamp |
| 11 | 219704407 | Tubing 10 MM 1000MM Long |
| 13 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 15 | 519000179 | Bracket |
| 16 | 519000196 | Spring |
| 19 | 519000216 | Cap |
| 20 | 415080700 | Polyurethane Hose, 8 mm This part replaces 519000230. |
| 21 | 519000242 | Oil Filter |
| 22 | 519000242 | Oil Filter |
| 23 | 519000273 | Cap |
| 24 | 519000312 | Oil Tank |
| 25 | 415079900 | Tubing 10 mm This part replaces 710001437. |
| 26 | 219704410 | Polyurethane Hose 10000Mm Long |
| 27 | 516008439 | Oil Warning Decal This part replaces 516007443. |
| 28 | 516005280 | Caution Decal Hot Parts |
