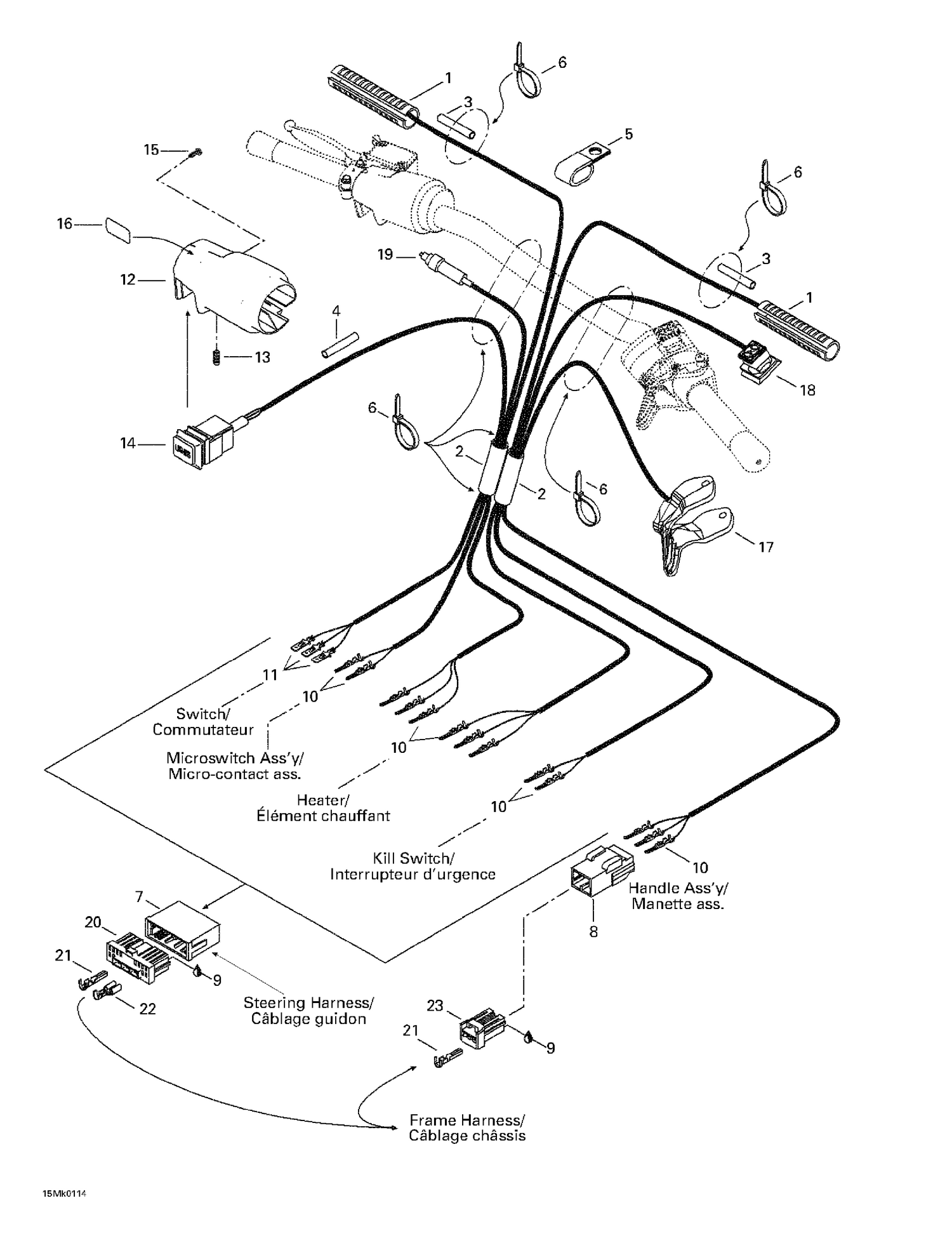

07- Steering System
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515175573 | Heating Grip |
| 3 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
| 6 | 414115200 | Tie-Rap 180 mm |
| 7 | 515175352 | MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 8 | 515175494 | Male Housing, 3 Circuits |
| 9 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 10 | 515175232 | Male Terminal |
| 11 | 515175273 | MALE TERMINAL - Call your local BRP dealership |
| 12 | 515175307 | Brake Housing |
| 13 | 414440800 | Socket Set Screw M8 X 10 |
| 14 | 515175563 | Dimmer Switch |
| 15 | 250000022 | SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 16 | 415025500 | Switch Decal |
| 20 | 515175350 | Female Terminal Housing, 13 Circuits |
| 21 | 515175231 | Female Terminal |
| 22 | 515175282 | Female Terminal |
