Parts Catalog

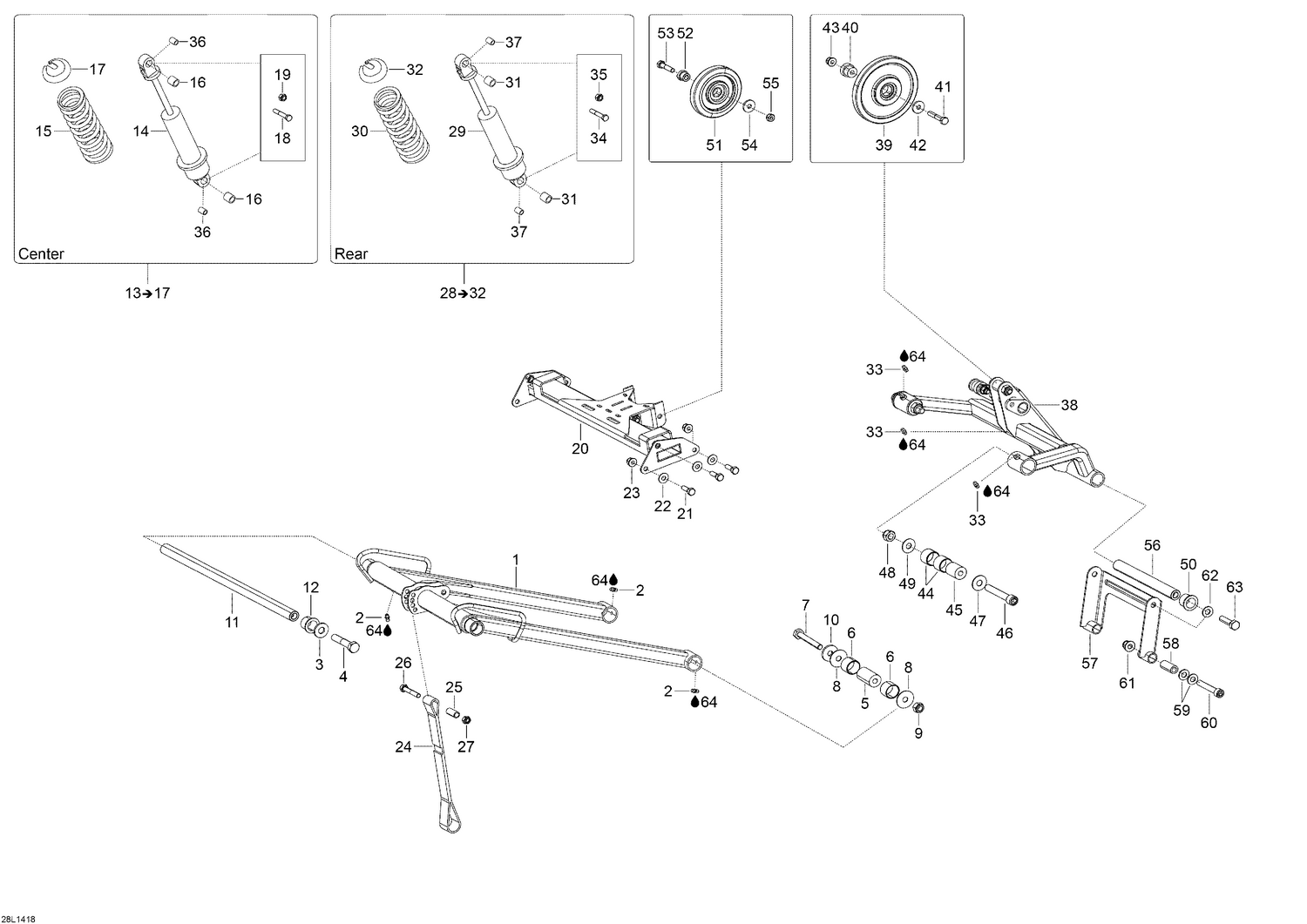

08- Rear Suspension

Parts (61)

Ref	Part Number	Description
1	503192557	Front Arm
2	408200700	Grease Fitting
3	250200131	Washer Spring Conical
4	250000555	Hex. Cap Screw M12 x 60
5	605354157	Shaft
6	503193700	Bushing
7	207007044	Hex. Cap Screw M10 x 70
8	605355801	Washer
9	232500416	Elastic Stop Nut M10
10	503183300	Washer
11	503192046	Shaft
12	31024	Cushion
14	503193039	Shock, Front Arm
15	250500011	Spring, Front Arm
16	31094	Cushion
17	605354631	Spring Lock
18	207004544	Hex. Screw M10 X 45
19	232500416	Elastic Stop Nut M10
20	503192566	Middle Beam
21	250000556	Hex. Cap Screw M8 x 25
22	503193095	WASHER A8.4X20X1.25 HV140 BLACK ZINC - Call your local BRP dealership
23	233281414	Hex. Flange Elastic Nut M8
24	605355116	Limiter Strap
25	605455335	Sleeve
26	207084544	Hex. Screw M8 X 45
27	232581414	Hex. Elastic Stop Nut M8
29	503193041	Shock, Rear Arm
30	503193513	Spring, Rear Arm
31	31094	Cushion
32	605354631	Spring Lock
33	408200700	Grease Fitting
34	40134	Screw Socket HD.DIN 912
35	232500416	Elastic Stop Nut M10
36	5446652	Bushing
37	5446652	Bushing
38	503192524	Rear Arm
39	503193644	Idler Wheel 133mm
40	605454461	Sleeve
41	207084544	Hex. Screw M8 X 45
42	20077	M8 Washer
43	233281414	Hex. Flange Elastic Nut M8
44	503193700	Bushing
45	605354157	Shaft
46	250000560	Socket Head Screw M10 x 65
47	503191926	Washer
48	232500416	Elastic Stop Nut M10
49	605355801	Washer
50	31024	Cushion
51	572043500	Idler Wheel
52	503193330	Sleeve
53	207083544	Hex. Screw M8 X 35
54	20077	M8 Washer
55	232581414	Hex. Elastic Stop Nut M8
56	605355118	Shaft
57	503192571	Rear Swing
58	503192341	Rear Swing Shaft
59	234001410	Flat Washer 10 mm
60	205006044	Socket Head Screw M10 x 60
61	233201414	Hex. Flanged Elastic Nut M10
62	234001410	Flat Washer 10 mm
63	207204044	Hex Cap Screw Din.931 S.grip
