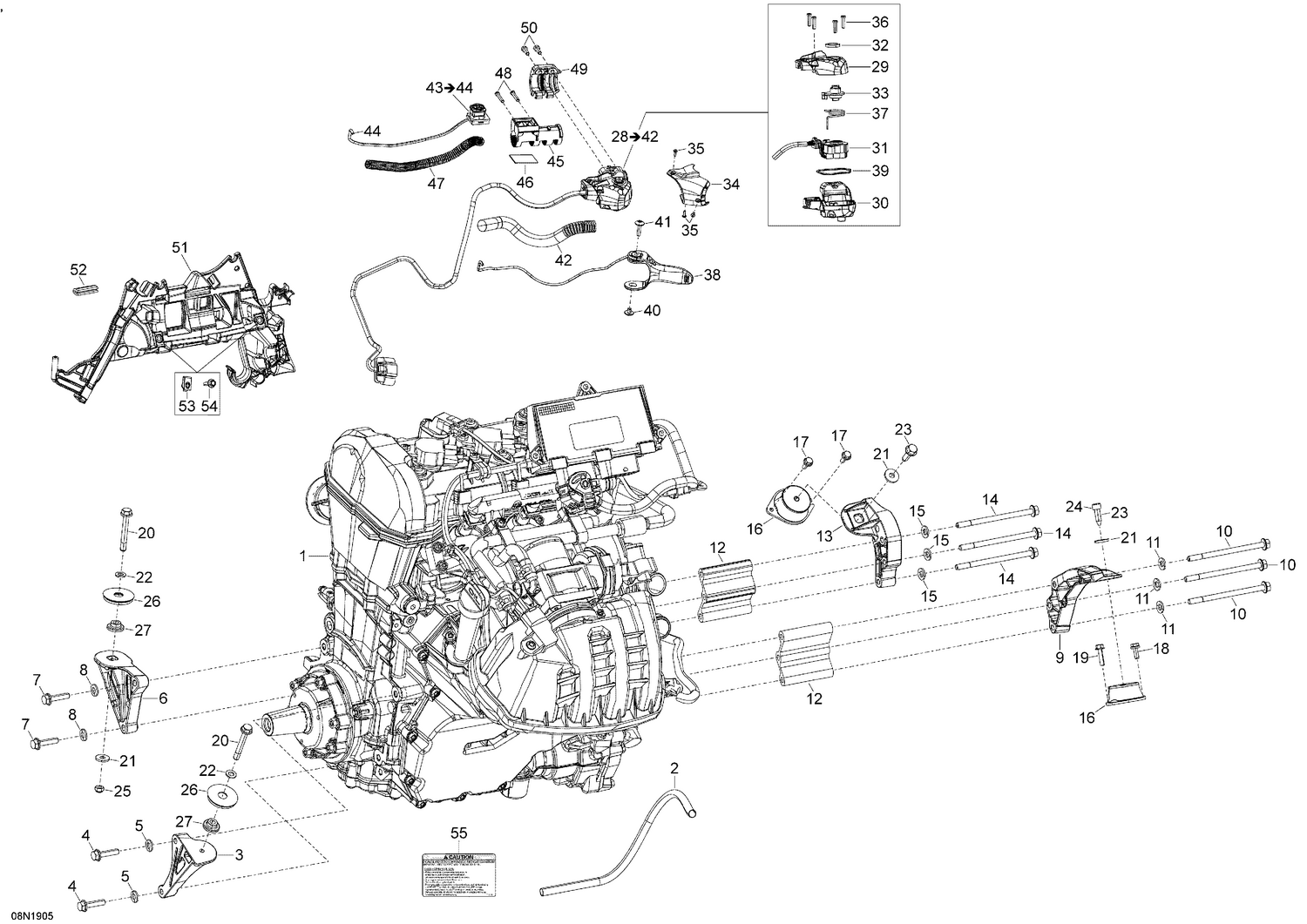

01- Engine - 600 ACE
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 512061067 | Protector Tube |
| 3 | 512061139 | Rear Support PTO |
| 5 | 250200146 | Conical Spring Washer M8 |
| 6 | 512061140 | Front Support PTO |
| 8 | 250200146 | Conical Spring Washer M8 |
| 9 | 512061142 | Rear Support MAG |
| 10 | 230582544 | Hex. Flange Screw M8 X 125, Scotch Grip |
| 11 | 250200157 | Conical Spring Washer M8 |
| 12 | 512060505 | Shim |
| 13 | 512061141 | Front Support MAG |
| 14 | 230582544 | Hex. Flange Screw M8 X 125, Scotch Grip |
| 15 | 250200157 | Conical Spring Washer M8 |
| 16 | 512060729 | Rubber Mount |
| 17 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 18 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 19 | 207562544 | Hex. Flange Screw M6 X 25 |
| 20 | 207586044 | Hex. Flange Screw M8 X 60, Scotch Grip |
| 21 | 503183200 | Yellow, Washer |
| 22 | 250200008 | Flat Washer With Teflon 8 mm |
| 23 | 250000257 | Cone Screw, M8 X 30 |
| 25 | 232581414 | Hex. Elastic Stop Nut M8 |
| 26 | 512061203 | Stopper This part replaces 512060647. |
| 27 | 512060285 | Spacer |
| 29 | 415130047 | Handle Ass'y kit |
| 30 | 512060862 | Cap |
| 31 | 250000623 | Torx Screw M2.9 x 9.5 |
| 32 | 250000671 | Torx Screw |
| 33 | 512060961 | Screw |
| 34 | 250000528 | Torx Screw M5 X 20 |
| 43 | 515177362 | Emergency Stop Switch |
| 45 | 512061453 | Switch Support This part replaces 512060844. |
| 46 | 294000973 | Friction Tape |
| 47 | 515177946 | Protector Tube |
| 48 | 250000263 | Torx Screw #8-18 |
| 49 | 512060987 | Front Housing |
| 50 | 250000632 | Torx Screw M5 X 14 |
| 51 | 512060994 | Module Support |
| 52 | 219704354 | Trim 1000Mm Long |
| 53 | 250000958 | Panel Nut M5 X 0.8 |
| 54 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 74 | 293300123 | O-Ring |
