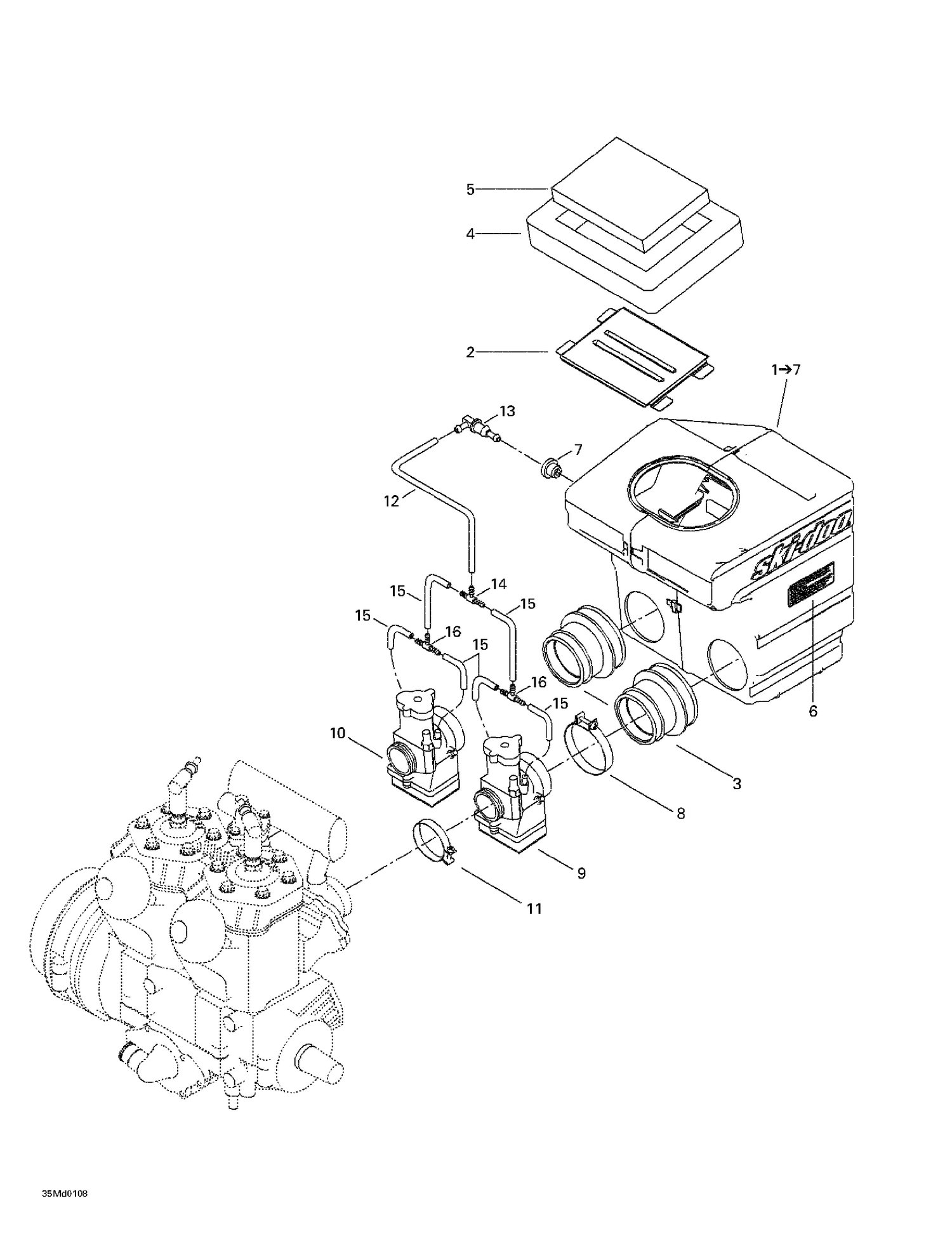

| Ref | Part Number | Description |
|---|
| 2 |
508000004 |
INTAKE GRILL - Call your local BRP dealership |
| 3 |
508000006 |
Air Intake Adaptor (34 mm) |
| 4 |
508000099 |
Lower Foam |
| 5 |
508000154 |
Air Filter |
| 6 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516000130. |
| 7 |
513032908 |
Grommet |
| 8 |
508000007 |
GEMI CLAMP - Call your local BRP dealership |
| 9 |
403138653 |
Carburator TMX-34-11 (PTO) |
| 10 |
403138694 |
Carburator TMX-34-13 (MAG) |
| 11 |
512059005 |
GEMI CLAMP - Call your local BRP dealership |
| 12 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 13 |
414580600 |
Elbow Male Connector |
| 14 |
572045500 |
T-Fitting |
| 15 |
404161821 |
HOSE - Call your local BRP dealership |
