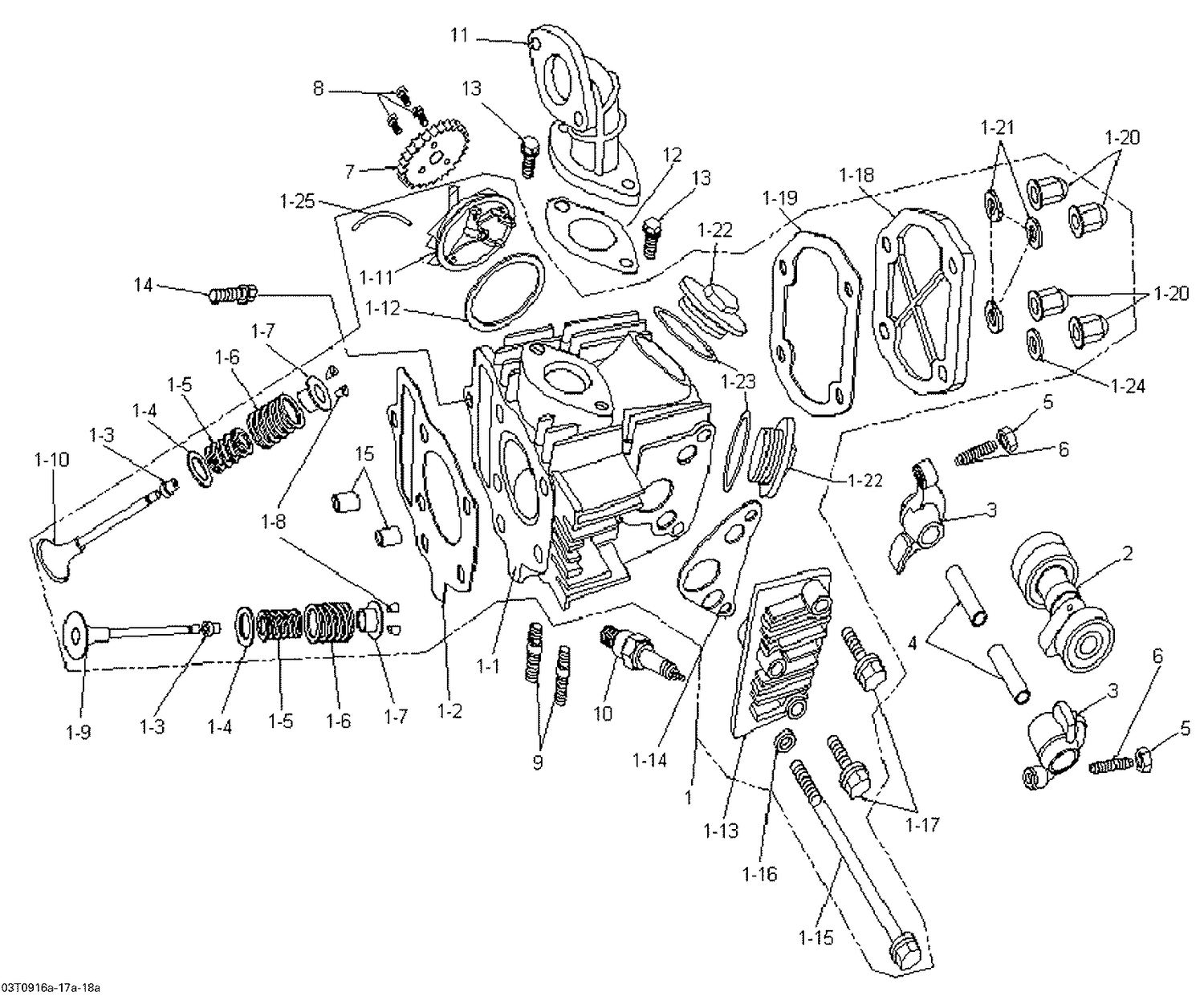

01- Cylinder Head And Intake Manifold
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | NASP/NDPR | Not Available As Spare Parts |
| 2 | V14400CJF010 | Camshaft |
| 3 | V14431CJF030 | Rocker Arm This part replaces V14431CJF000. |
| 4 | V14452CJF010 | Rocker Arm Shaft This part replaces V14452CJF000. |
| 5 | V90206GYK000 | Valve Gap Adjusting Nut |
| 6 | V14431CJF030 | Rocker Arm This part replaces V90012GYK000. |
| 7 | V14321CJF030 | Timer Sprocket This part replaces V14321CJF020. |
| 8 | 207151244 | Hex. Screw M5 X 12 This part replaces V920100501208. |
| 9 | V9270006033LL | Stud Bolt This part replaces V9270006033. |
| 10 | 219703175 | Spark Plug NGK CR7HSA This part replaces V9805656723. |
| 11 | V17111CJF07A | Intake Manifold This part replaces V17111CJF04A. |
| 12 | V16229GYK010 | Gasket This part replaces V16229GYK000. |
| 13 | 207662044 | Hex. Flange Screw M6 X 20 |
| 14 | 207662544 | Hex. Flange Screw M6 X 25 |
