03- Magneto 12V 220W

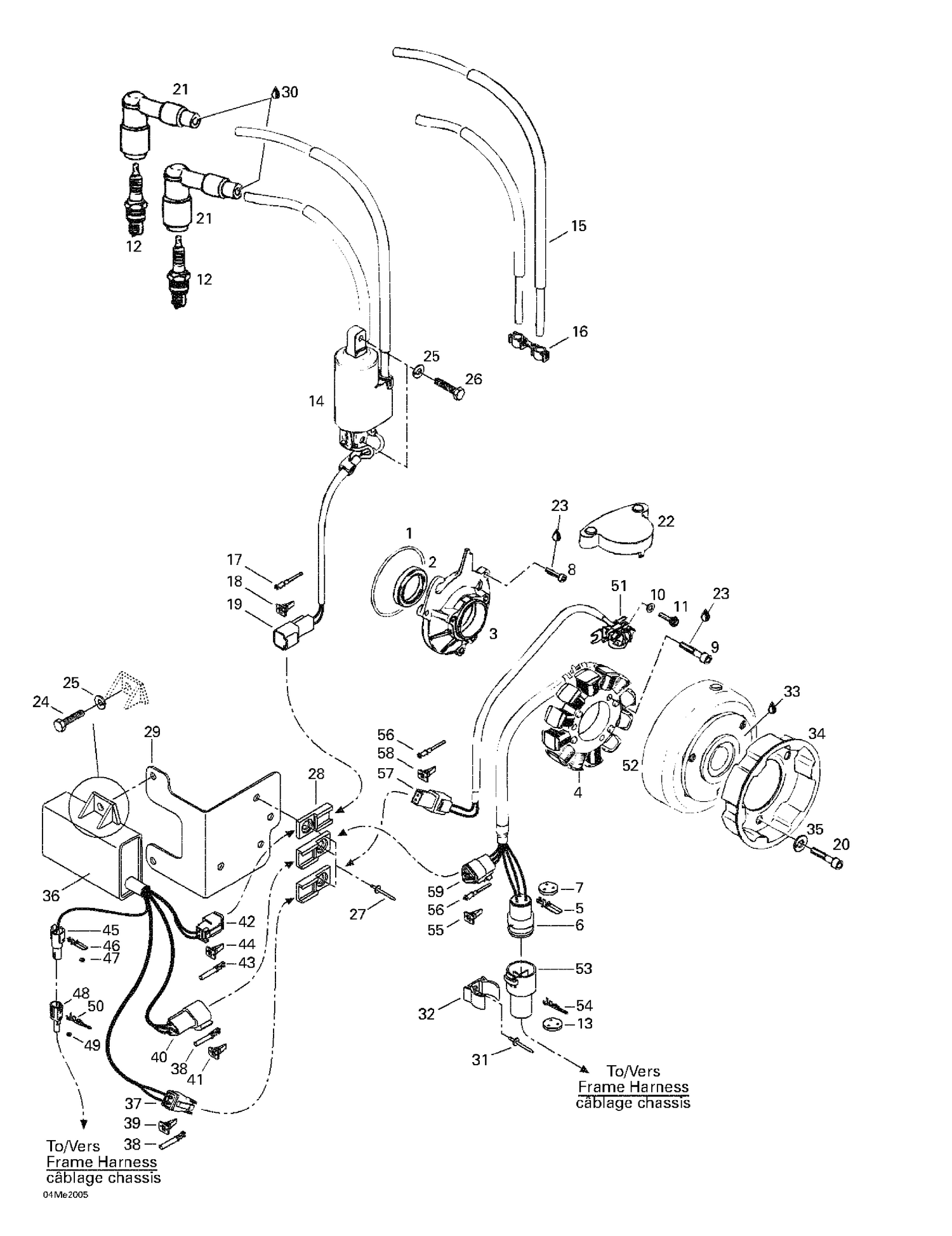

03- Magneto 12V 220W

Parts (55)

RefPart NumberDescription
1 420850430 O-RING - Call your local BRP dealership
2 420930695 SEAL-OIL - Call your local BRP dealership
3 420810265 Armature Plate
5 409011900 FEMALE TERMINAL - Call your local BRP dealership
6 409208200 FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
7 409208500 SEAL - Call your local BRP dealership
8 420941540 SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership
9 420840887 SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.
10 420827800 WASHER - Call your local BRP dealership
11 420840514 Allen Screw M5 x 16 This part replaces 420840511.
12 219703120 Spark Plug NGK BR9ES This part replaces 414961100.
13 409208500 SEAL - Call your local BRP dealership
15 278002198 SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
16 410914600 Plastic Clip, Spark Plug Wire
17 278000631 Male Terminal
18 409207500 Male Lock, 2 Circuits
19 409206900 Male Housing, 2 Circuits
20 420841520 Socket Head Screw M8 X 12
21 278000237 SPARK PLUG CAP - Call your local BRP dealership
22 420810700 Pick-Up Cover
23 293800060 Loctite 243, 10 ml
24 207161644 Hex. Screw M6 X 16
25 234161471 Lock Washer M6, Black
26 207162044 Hex. Screw M6 X 20
27 390402400 Pop Rivet 3/16"
28 270000141 Clip
29 515175107 Cable Support
30 293550004 Dielectric Grease, 150 g This part replaces 413701700.
31 390402500 RIVET_POP 1/8 - Call your local BRP dealership
32 415089700 Clip
33 219703000 Sealant Loctite 648 This part replaces 413711400.
34 420852590 Starting Pulley This part replaces 420852416.
35 420945832 Washer-Lock Din.128 This part replaces 420945752.
37 409206900 Male Housing, 2 Circuits
38 278000631 Male Terminal
39 409207500 Male Lock, 2 Circuits
40 278002378 Male Housing This part replaces 409207000.
41 409207600 Male Lock, 3 Circuits
42 409207300 Female Connector, 2 Circuits
43 278000632 Female Terminal
44 409207100 FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership
45 Not Available As Spare Part - Female Connector Housing (1 Circuit)
46 409012100 Female Terminal
47 409012300 Seal
48 409208800 Male Connector Housing (1 Circuit)
49 409012300 Seal
50 409011300 Male Terminal
51 420965642 Pick Up Ass'y
52 410922906 Magneto Flywheel
53 409207900 MALE HOUSING - Call your local BRP dealership
54 409011100 MALE TERMINAL - Call your local BRP dealership
55 409207200 Female Lock
56 278000632 Female Terminal
57 409207300 Female Connector, 2 Circuits
58 409207100 FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership
