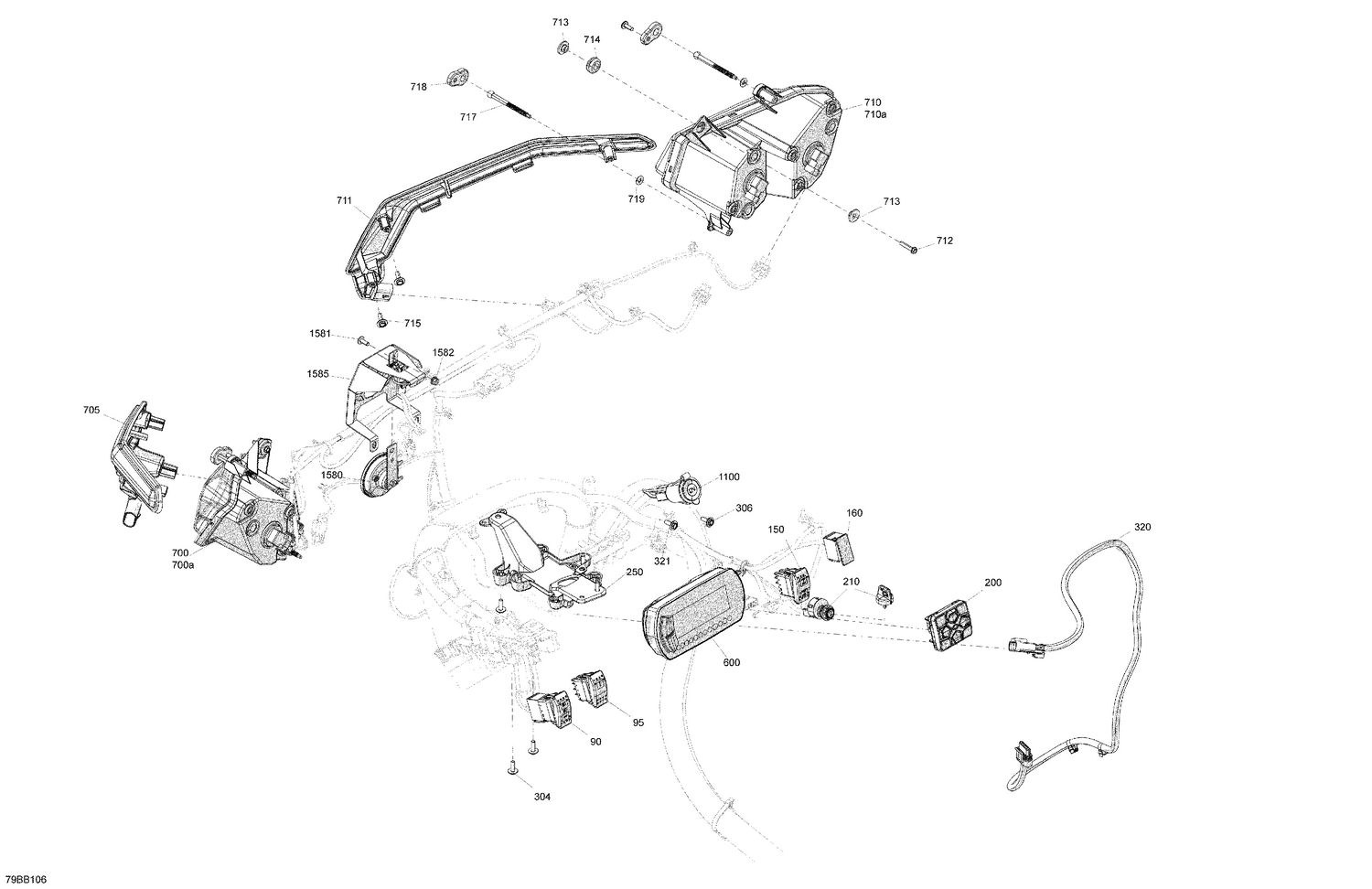

08- Electric - Front Section - No ABS
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 710005489 | Switch 2X4 |
| 200 | 710006650 | Multifonction Switch |
| 250 | 710005672 | Housing Support |
| 304 | 250000959 | Screw PT Type K-50 X 16 |
| 306 | 250000959 | Screw PT Type K-50 X 16 |
| 320 | 710005929 | Trottle Pedal Harness |
| 321 | 250000959 | Screw PT Type K-50 X 16 |
| 700 | 710008230 | LH Headlamp |
| 700a | 715900141 | Bulb 12V 55W |
| 705 | 705011485 | LH Fascia Trim |
| 710 | 710008231 | RH Headlamp |
| 710a | 715900141 | Bulb 12V 55W |
| 711 | 705011486 | RH Fascia Trim |
| 712 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 713 | 710004749 | Shoulder Bushing |
| 714 | 709000582 | Grommet |
| 715 | 250000959 | Screw PT Type K-50 X 16 |
| 717 | 710005837 | Ajustment Screw |
| 718 | 710005097 | Adjustment Guide |
| 719 | 293300192 | O-Ring |
| 1580 | 710004791 | Horn |
| 1581 | 250000721 | Torx Truss Screw M6 X 16 |
| 1582 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1585 | 710006055 | Horn Bracket |
