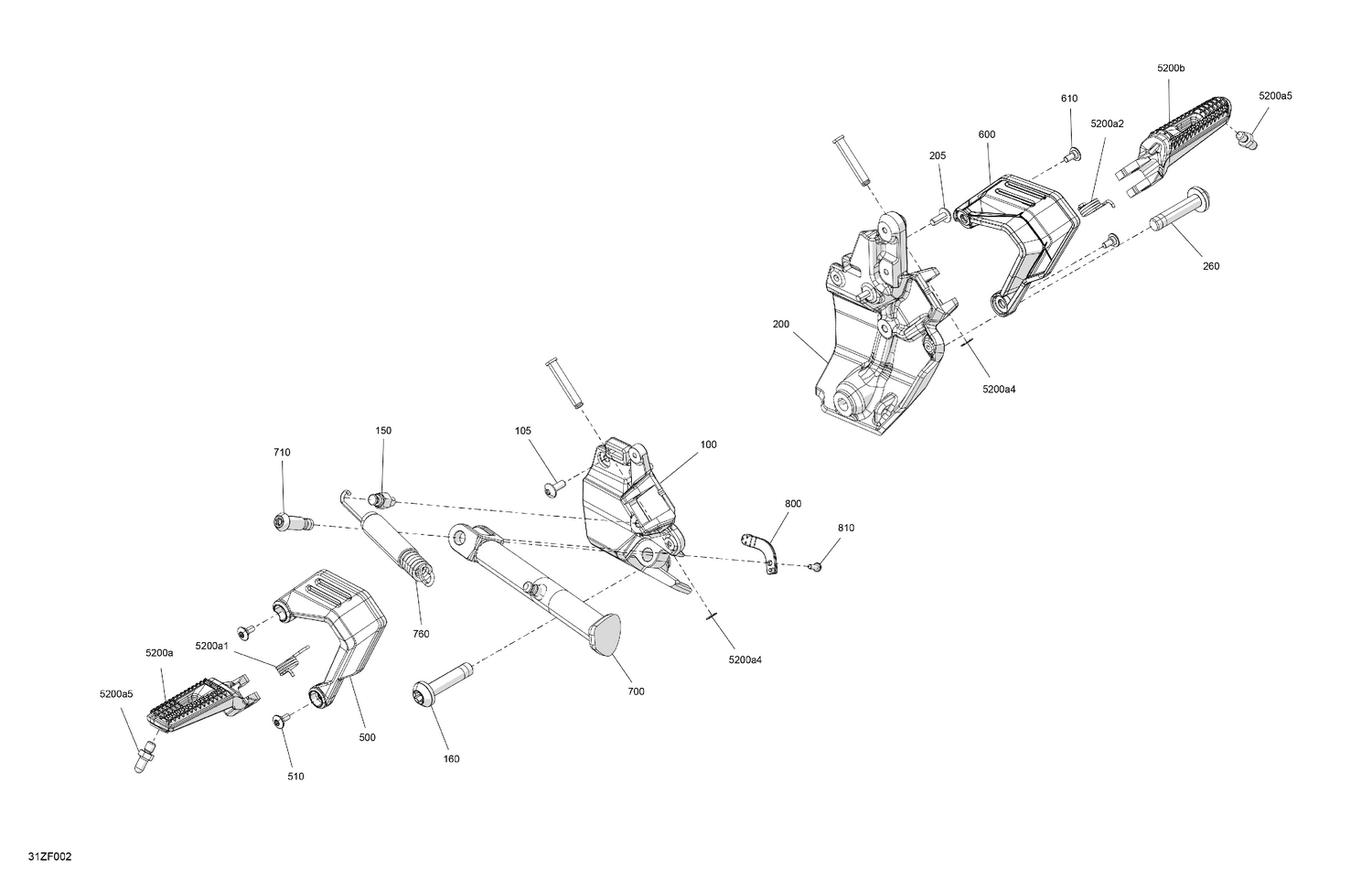

06- Frame - Footrest
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 705700067 | LH Front Footrest Support |
| 105 | 250000534 | Tork Screw M6 X 16 |
| 150 | 705700081 | Machined Spring Anchorage |
| 160 | 250001313 | Torx Truss Screw Torx S.Grip M12 X |
| 200 | 705700068 | RH Front Footrest Support |
| 205 | 250000534 | Tork Screw M6 X 16 |
| 260 | 250001313 | Torx Truss Screw Torx S.Grip M12 X |
| 500 | 705700103 | LH Guard |
| 510 | 250001308 | Torx Screw M5 X 12 |
| 600 | 705700104 | RH Guard |
| 610 | 250001308 | Torx Screw M5 X 12 |
| 700 | 705700116 | Deep Black, Kickstand |
| 710 | 705211205 | Pivot Stand |
| 760 | 705700089 | Return Spring Ass'y |
| 800 | 705209732 | Magnet Support |
| 810 | 250001298 | Torx Head Screw M4 X 10 |
| 5200a | 705700069 | LH Front Footrest |
| 5200a1 | 705001701 | Spring |
| 5200a2 | 705003362 | Spring |
| 5200a4 | 705601030 | Circlip |
| 5200a5 | 705700008 | Footrest Stopper |
