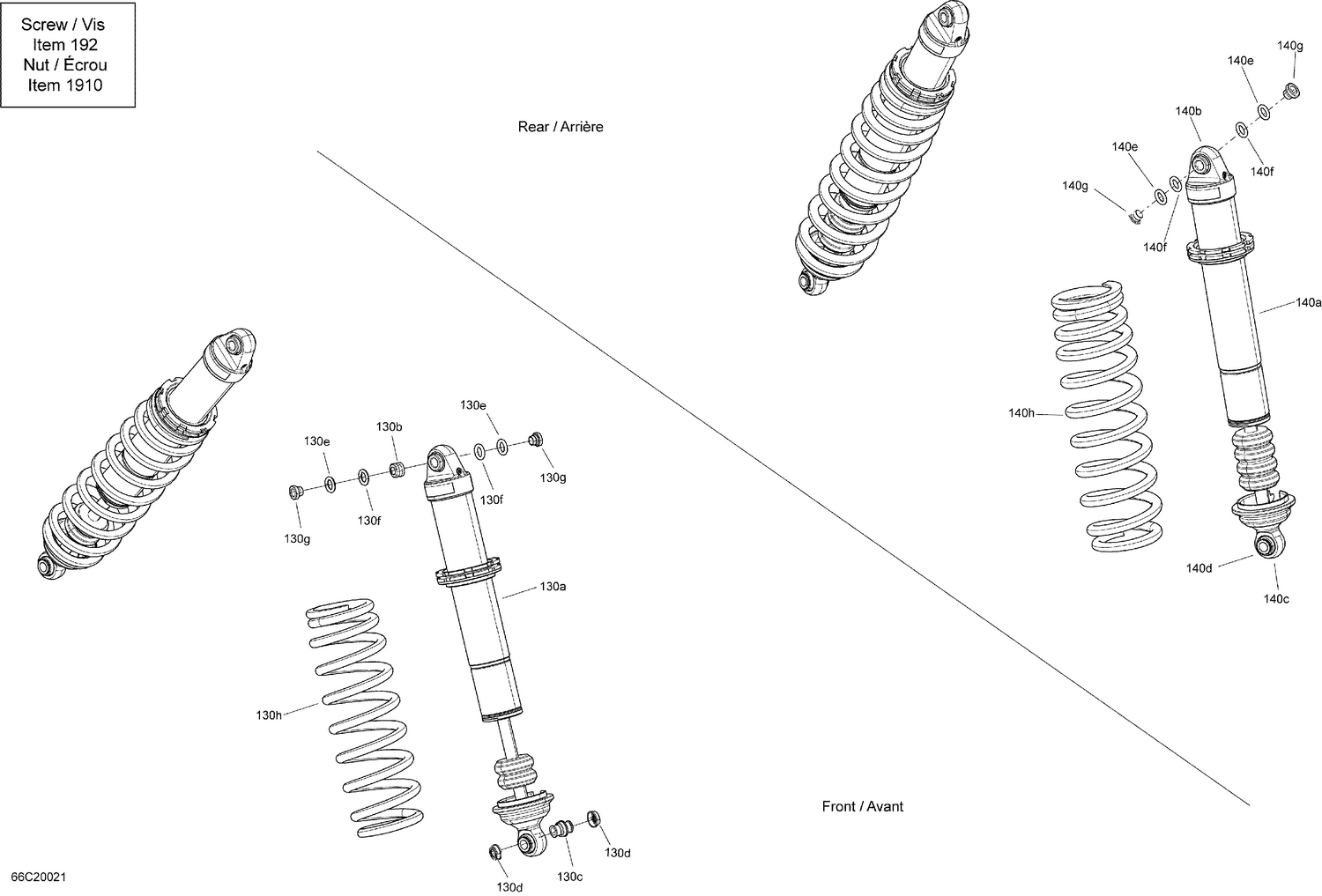

07- Shocks
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 130b | 715900329 | Spherical Bearing |
| 130c | 715900330 | Spherical Bearing |
| 130d | 715900331 | Protector |
| 130e | 715900268 | O-Ring Bushing |
| 130f | 715900252 | Retaining Ring |
| 130g | 715900267 | Internal Bushing |
| 130h | 706203195 | Black Front Spring |
| 140b | 715900329 | Spherical Bearing |
| 140c | 715900330 | Spherical Bearing |
| 140d | 715900331 | Protector |
| 140e | 715900268 | O-Ring Bushing |
| 140f | 715900252 | Retaining Ring |
| 140g | 715900267 | Internal Bushing |
| 140h | 706003030 | Deep Black, Rear Spring |
| 192 | 250000857 | Flange Screw M12 X 60 |
