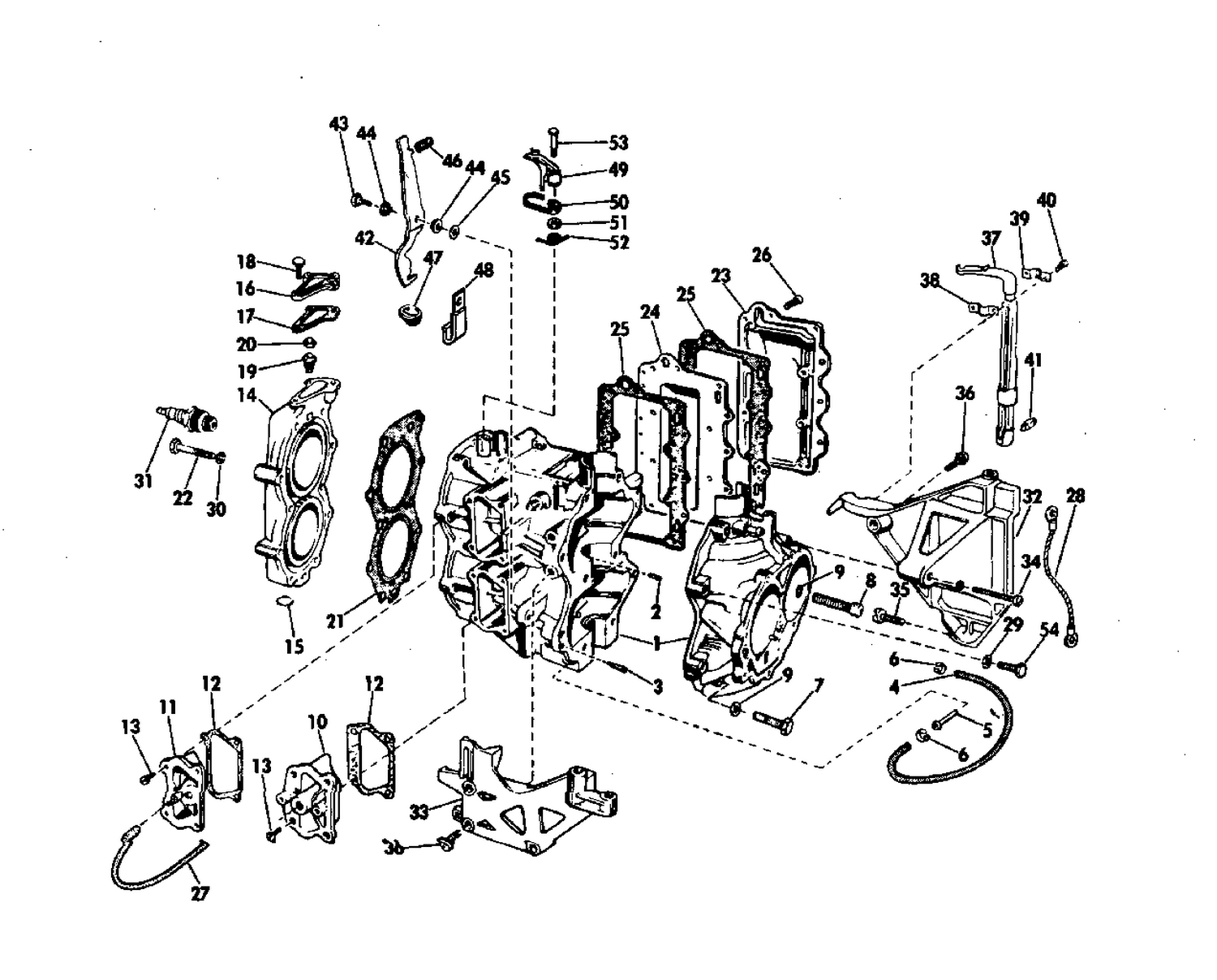

| Ref | Part Number | Description |
|---|
| 1 |
0384974 |
CYLINDER & C' CASE ASSY |
| 4 |
0308506 |
HOSE, Oil line |
| 6 |
0303473 |
CLAMP, Hose |
| 7 |
0306435 |
SCREW, Brace to alternator |
| 8 |
0203249 |
SCREW, Crankcase, center |
| 9 |
0306371 |
WASHER |
| 10 |
0314817 |
BY PASS COVER, Lower |
| 11 |
0384972 |
BY-PASS COVER, Upper |
| 12 |
0314818 |
GASKET, By -pass cover |
| 13 |
0306487 |
SCREW |
| 14 |
0383535 |
CYLINDER HEAD ASSEMBLEY |
| 16 |
0308327 |
CAP HOUSING |
| 17 |
0308328 |
GASKET, Cap |
| 18 |
0300646 |
VIS, ancrage |
| 19 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 20 |
0310058 |
GASKET, Thermostat |
| 21 |
0306163 |
GASKET, Cylinder head |
| 22 |
0306424 |
BOLT, Pump mounting |
| 23 |
0316164 |
COVER, Exhaust outer |
| 24 |
0316163 |
COVER, Exhaust inner |
| 25 |
0316162 |
GASKET, Exaust cover |
| 26 |
0314979 |
SCREW, Cylinder to c'case |
| 27 |
0317120 |
HOSE, Mfld to cover |
| 28 |
0376349 |
FIL, masse |
| 29 |
0306371 |
WASHER |
| 30 |
0308419 |
WASHER |
| 31 |
0378101 |
SPARK PLUB, Champion j4j |
| 31 |
0378320 |
SPARK PLUG, AC - M42K |
| 32 |
0308361 |
BRACKER, Port |
| 33 |
0312009 |
BRACKET, Starboard |
| 34 |
0312189 |
SCREW, Manfold to crankcase |
| 35 |
0551793 |
SCREW |
| 36 |
0303699 |
SCREW |
| 37 |
0385509 |
CONTROL LEVER This part replaces 0203805. |
| 38 |
0303109 |
BEARING CLAMP, INNER |
| 39 |
0305609 |
BEARING CLAMP |
| 40 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 41 |
0329197 |
PIN, Control lever This part replaces 0304155. |
| 42 |
0317757 |
SHIFT LOCK This part replaces 0316604. |
| 43 |
0322781 |
SCREW, Lockout lever boss This part replaces 0316605. |
| 44 |
0325542 |
BUSHING This part replaces 0316603. |
| 46 |
0302587 |
SPRING, Shifter lock |
| 47 |
0306222 |
GROMMET |
| 48 |
0310947 |
CLAMP |
| 49 |
0315760 |
LOCKOUT LEVER |
| 50 |
0315764 |
GUIDE SPRING, Lever |
| 51 |
0315770 |
WASHER, Electrical bracket |
| 52 |
0315763 |
RETURN SPRING, Lever |
| 53 |
0321995 |
SHOULDER SCREW This part replaces 0315725. |
| 54 |
0306435 |
SCREW, Brace to alternator |
| 0316540 |
0316540 |
GASKET, Leaf plate to c' case |
