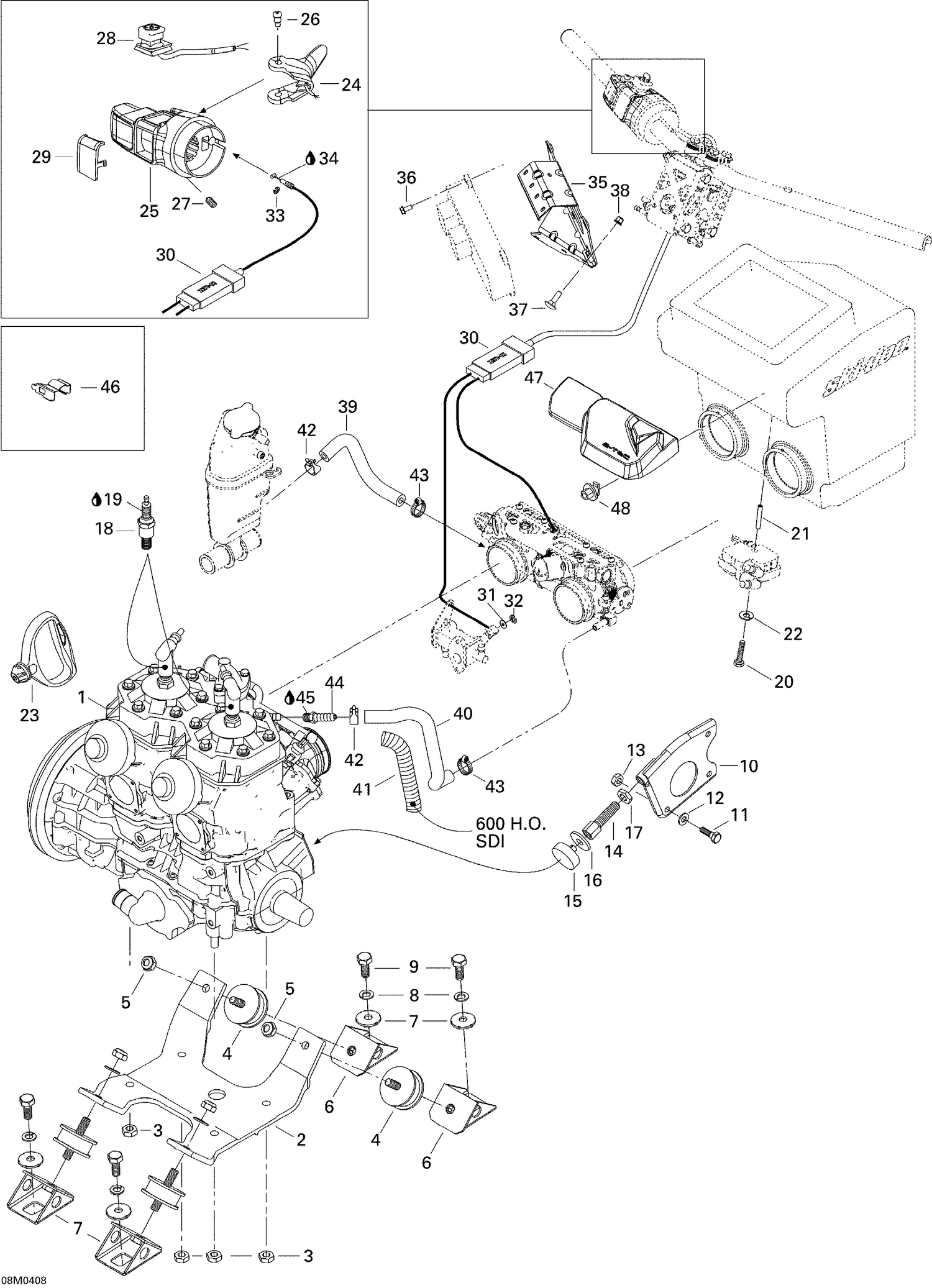

01- Engine Support
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 512059173 | Engine Support |
| 3 | 233201414 | Hex. Flange Elastic Nut M10 |
| 4 | 570128700 | RUBBER MOUNT - Call your local BRP dealership |
| 5 | 233201414 | Hex. Flange Elastic Nut M10 |
| 6 | 512050900 | Engine Support |
| 7 | 512056700 | Lock Washer |
| 8 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 9 | 207102544 | Hex. Screw M10 X 25 |
| 10 | 512058500 | Support Plate |
| 11 | 207182044 | Hex. Screw M8 X 20 |
| 12 | 234081410 | Flat Washer 8 mm |
| 13 | 232581414 | Hex. Elastic Stop Nut M8 |
| 14 | 512058800 | STOPPER SCREW - Call your local BRP dealership |
| 15 | 512059056 | Stopper |
| 16 | 512059057 | WASHER - Call your local BRP dealership |
| 17 | 232026414 | RH Hex. Nut This part replaces 732610019. |
| 18 | 415128524 | Spark Plug NGK BR9ECS |
| 19 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 20 | 207065044 | HEX. CAP SCREW M6 X 50 - Call your local BRP dealership |
| 21 | 512059812 | SPACER - Call your local BRP dealership |
| 22 | 234161471 | Lock Washer M6, Black |
| 23 | 572084400 | Starter Grip |
| 24 | 512060484 | Throttle Handle Ass'y This part replaces 512059483. |
| 25 | 512059763 | THROTTLE HOUSING - Call your local BRP dealership |
| 26 | 732601143 | Flange Screw |
| 27 | 414440800 | Socket Set Screw M8 X 10 |
| 28 | 515177362 | Emergency Stop Switch This part replaces 512059751. |
| 29 | 572100901 | Switch Cover |
| 31 | 234081100 | Flat Washer 8 mm, Nylon |
| 32 | 414753500 | Circlip |
| 33 | 414274500 | Circlip |
| 34 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 35 | 512059613 | Electronic Control Unit Support |
| 36 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 37 | 207751644 | Carriage Bolt |
| 38 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 39 | 512059563 | FORMED HOSE - Call your local BRP dealership |
| 40 | 512059892 | Formed Hose |
| 42 | 414655700 | Spring Clamp |
| 43 | 293650170 | Tridon Gear Clamp This part replaces 293650128. |
| 44 | 293710082 | STRAIGHT FITTING - Call your local BRP dealership |
| 45 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 46 | 512059809 | Heating Element Bracket |
| 47 | 512059666 | Moulding |
