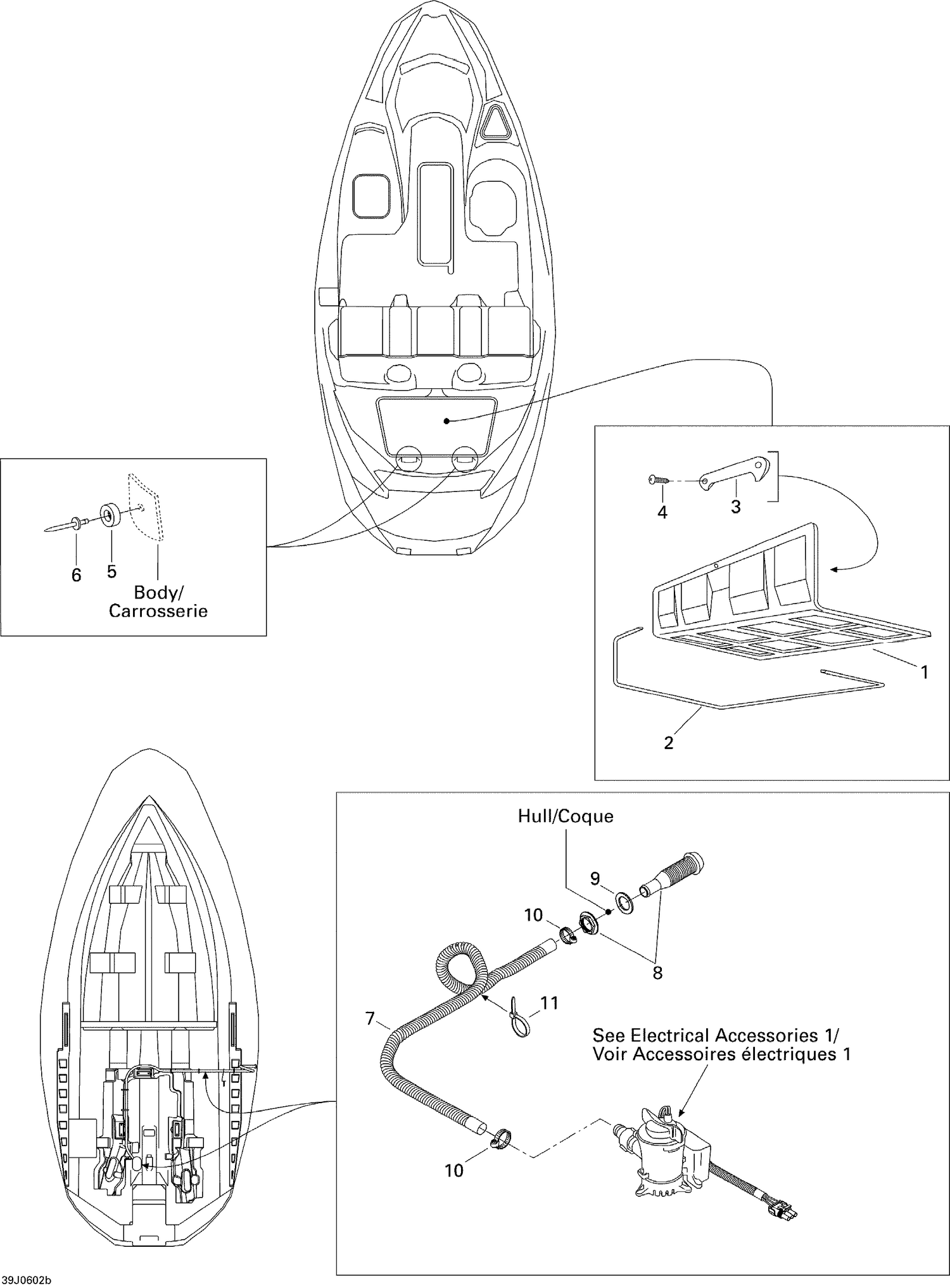

09- Hull 2
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204050693 | Access Cover |
| 2 | 219704368 | Seal Tray 1000Mm Long |
| 3 | 291000608 | HANDLE, WHITE - Call your local BRP dealership |
| 4 | 241141660 | Hex. Flange Screw K40 X 16 |
| 5 | 293830043 | Rubber Stopper |
| 6 | Not | Available As Spare Part - Rivet |
| 7 | 291001206 | BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership |
| 8 | 293710162 | Fitting This part replaces 293710015. |
| 9 | 293250006 | GASKET - Call your local BRP dealership |
| 10 | 293650016 | Tridon Clamp |
