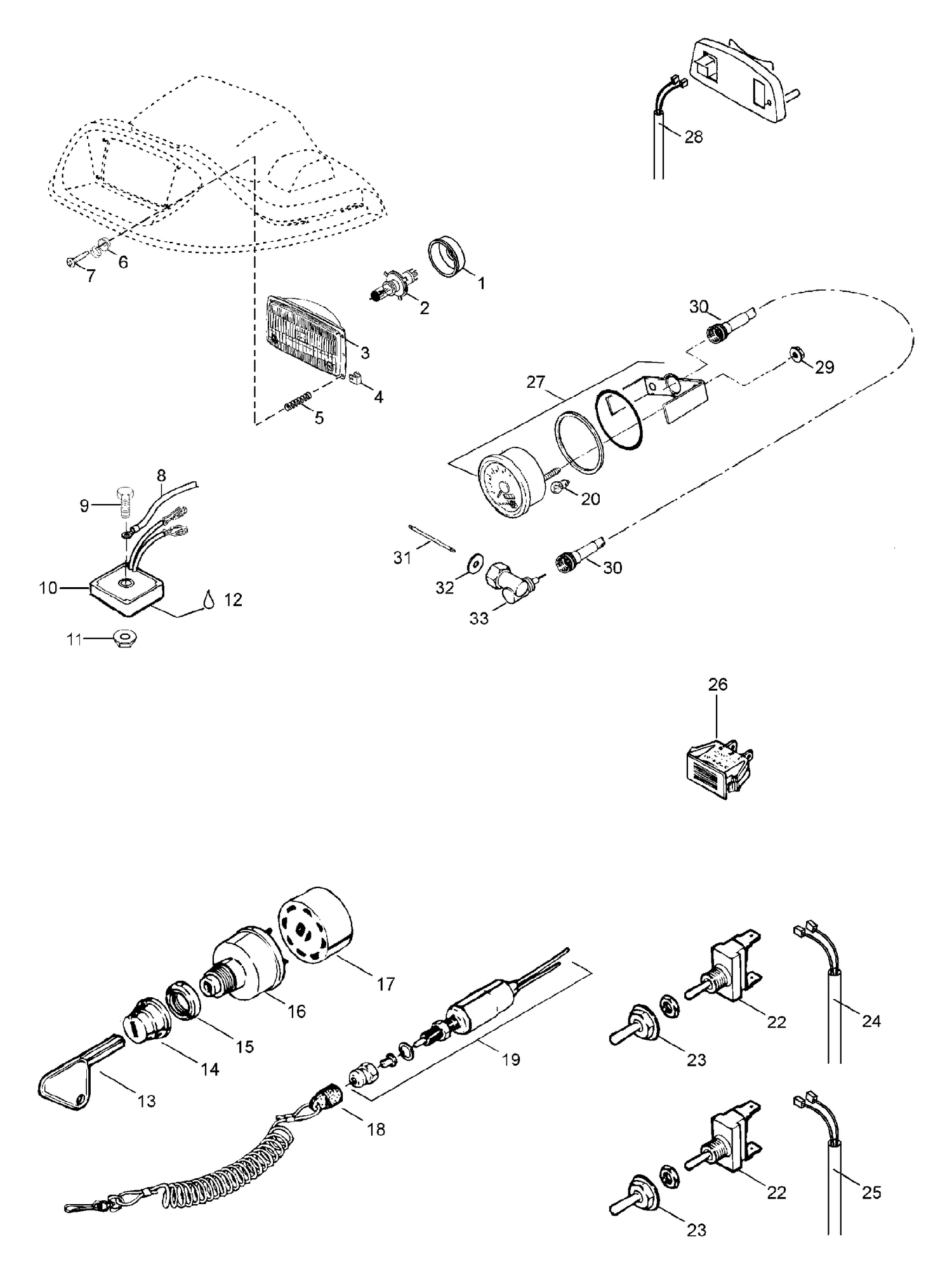

10- Electric
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 410607100 | PROTECTOR CAP - Call your local BRP dealership |
| 2 | 515176274 | Halogen Bulb, 60/55 W, 12 V This part replaces 410503700. |
| 3 | 410606700 | Headlamp |
| 4 | 572378700 | Nut |
| 5 | 541747 | Spring |
| 6 | 282001 | Cover |
| 7 | 732603002 | Screw M4x40 |
| 8 | 549265 | Ground cable |
| 9 | 40003 | Screw M6x35 |
| 10 | 410110600 | VOLTAGE REGULATOR - Call your local BRP dealership |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 12 | 413706400 | Lithium grease |
| 13 | 415129350 | BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 14 | 570013700 | Boot |
| 15 | 410112100 | FACE NUT - Call your local BRP dealership |
| 16 | 42019 | Ignition switch |
| 17 | 572150700 | FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 18 | 4299163 | Switch cup |
| 19 | 544957 | Switch brake |
| 20 | 5320925 | Intrument bulp |
| 22 | 410110700 | Switch |
| 23 | 515175281 | Rubber cover for switch This part replaces 570013900. |
| 24 | 5244738 | Wiring harness |
| 25 | 5441888 | Switch wire |
| 26 | 410109500 | Pilot lamp (oil) |
| 27 | 35018 | Speedometer |
| 28 | 5445525 | Wire for tail lamp |
| 29 | 33009 | Nut elastic M5 |
| 30 | 5341370 | Speedometer cable |
| 31 | 45009 | Square pin, L=85mm |
| 32 | 20044 | Gasket |
