Parts Catalog

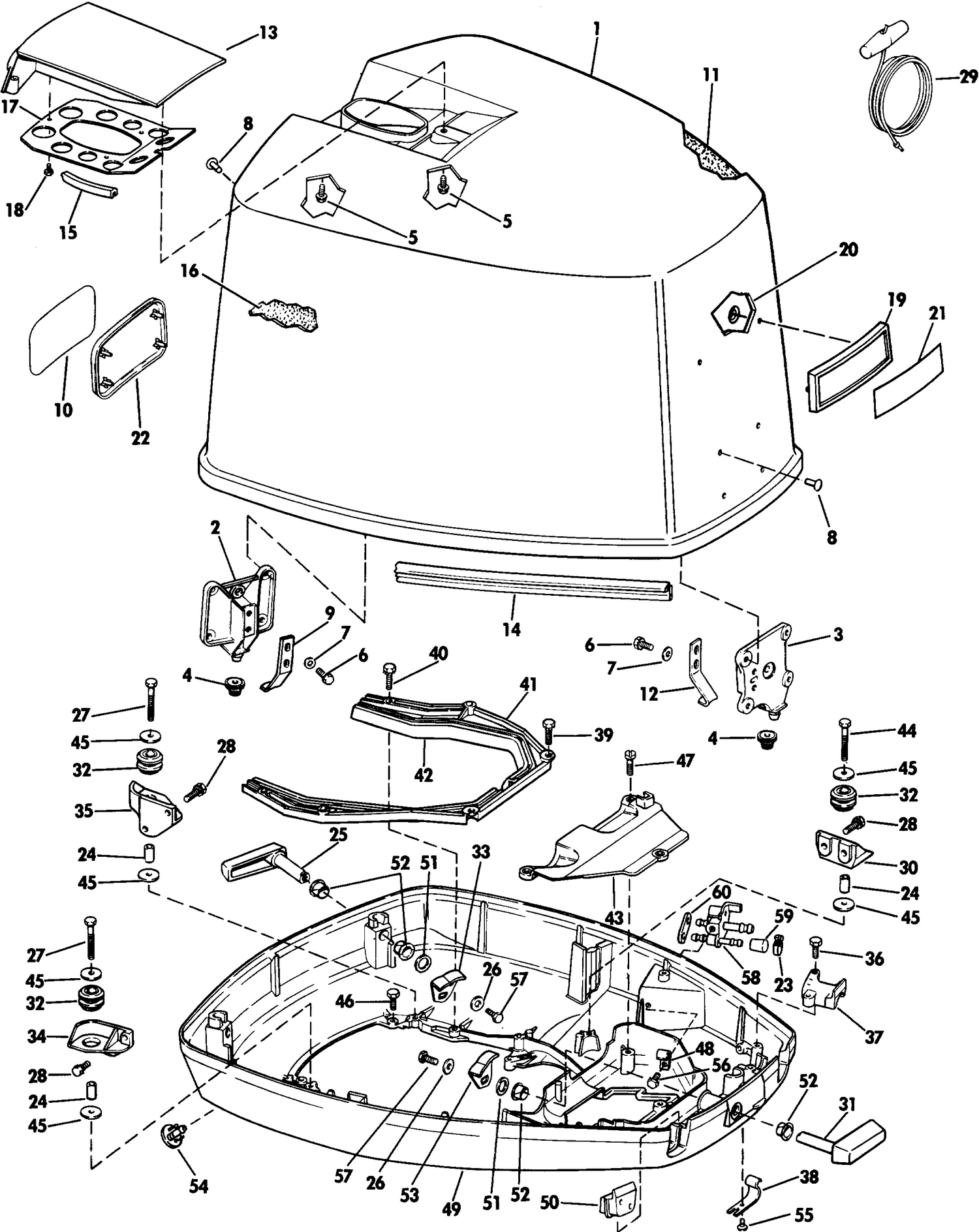

ENGINE COVER - JOHNSON

Parts (52)

Ref	Part Number	Description
1	0394577	ENGINE COVER ASSY., 150
1	0394578	ENGINE COVER ASSY., 185
1	0394579	ENGINE COVER ASSY., 235
1	0397153	ENGINE COVER ASSY., 175
2	0394976	LOCATING BRACKET, Rear
3	0389971	LOCATING BARCKET, Front
7	0306407	LOCCKWASHER,Cover latch
10	0329960	PLATE, Applique, rear
11	0209445	SOUND BLANKET, Top
12	0323175	HOOK , Motor Cover, Front
14	0328686	SEAL, Engine cover This part replaces 0326508.
15	SEAL,	Baffle to handle
16	0334853	SOUND BLANKET, Side This part replaces 0208954.
17	0206520	AIR INLET BAFFLE
19	0329950	APPLIQUE, Front
21	0329951	PLATE, Applique, front, 150
21	0330482	PLATE, Applique, front 185
21	0330483	PLATE, Applique, front, 235
21	0332163	PLATE, Applique, front, 175
22	0329959	APPLIQUE, Engine cover, rear
23	0320107	ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
24	0302406	SLEEVE
25	0383685	LATCH HANDEL ASSY., Rear
27	0303398	VIS, support
28	0328695	CLAMP, Engine cable
29	0378347	CORDE DE LANCEUR
30	0315111	SUPPORT, Front
31	0383641	LATCH HANDEL ASSY., Front
32	0316354	ENGINE COVER SUPPORT GROMMET
33	0323169	HOOK, Lower rear port
34	0315113	SUPORT, Stbd, rear
35	0315112	SUPPORT, Port rear
36	0307151	SCREW
37	0318849	CLAMP, Instrument cable
38	0333739	RETAINER, Fuel hose to cover This part replaces 0329610.
39	0328695	CLAMP, Engine cable
41	0392494	FRAME AND SEAL ASSY
42	0318258	SEAL Cover
43	0328358	COVER ASSY. Air entrance
44	0303398	VIS, support
46	0328695	CLAMP, Engine cable
47	0328695	CLAMP, Engine cable
49	0434288	ENGINE COVER, Lower This part replaces 0394373.
50	0320834	GROMMET
53	0323170	HOOK Front and stbd., rear
54	0321885	NIPPLE
55	0310539	SCREW, Clamp choke solenoid
56	0908159	SCREW, Bearing clamp This part replaces 0328728.
57	0312241	SCREW, Trim/Tilt relay bracket
58	0394309	FUEL CONNECTOR
60	0331533	JOINT, conn. carburant vers capot inférieur
0393951	0393951	DECAL SET
