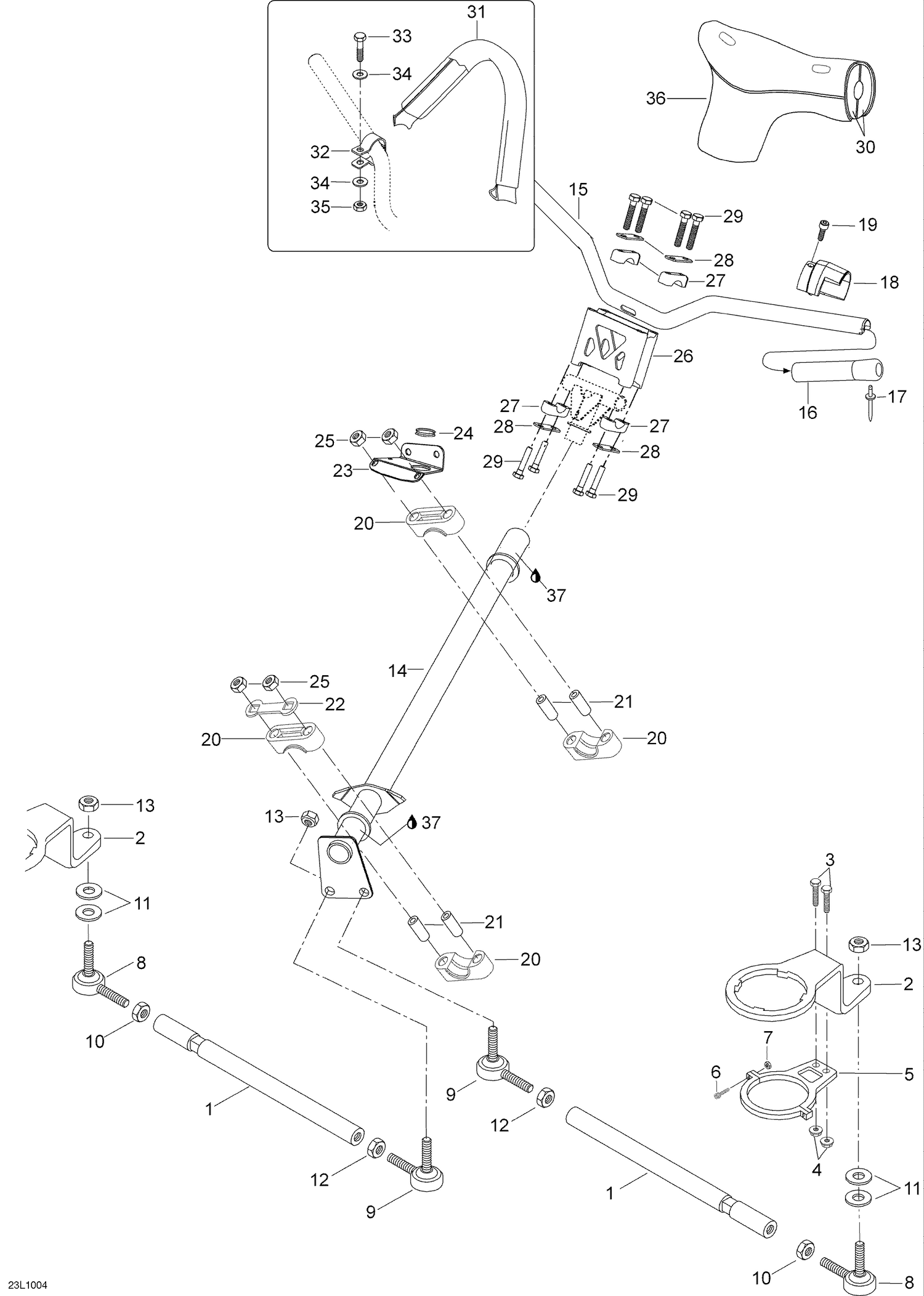

| Ref | Part Number | Description |
|---|
| 1 |
605454293 |
LH TIE ROD - Call your local BRP dealership |
| 1 |
605454772 |
RH TIE ROD - Call your local BRP dealership |
| 2 |
605353422 |
RH STEERING ARM - Call your local BRP dealership |
| 2 |
605353423 |
LH STEERING ARM - Call your local BRP dealership |
| 3 |
40031 |
Screw M6 x 25 |
| 4 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 5 |
619380015 |
Support Ass'Y This part replaces 5344180. |
| 6 |
40146 |
Allen scr. M4 x 20 DIN 912m8.8 Zne(1=10p - Call your local BRP dealership |
| 7 |
33008 |
Elastic stop nut M4 |
| 8 |
506151845 |
LH JOINT BALL - Call your local BRP dealership |
| 9 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 10 |
33019 |
Nut R.H. |
| 11 |
31014 |
Shim |
| 12 |
33017 |
Nut M10x1.25VASDIN934 m8 ZNe(1=10pcs) - Call your local BRP dealership |
| 13 |
33023 |
Elastic stop nut M10 |
| 14 |
605253421 |
MAIN TUBE - Call your local BRP dealership |
| 15 |
605251368 |
HANDLE BAR - Call your local BRP dealership |
| 16 |
5340464 |
Grip |
| 17 |
36005 |
Rivet |
| 18 |
506151566 |
ADAPTATOR - Call your local BRP dealership |
| 19 |
40390 |
Socket head screw M8 x 20 |
| 20 |
506150400 |
Housing Half |
| 21 |
506150500 |
Housing Bushing |
| 22 |
506150600 |
Stopper Plate |
| 23 |
605351973 |
Bracket |
| 24 |
28022 |
Grommet |
| 25 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 26 |
Not |
Available As Spare Part - Extension |
| 27 |
709400919 |
Steering Support This part replaces 506151622. |
| 28 |
709400509 |
Stiffner |
| 29 |
250000074 |
Hex. Screw With Nylon M8 X 40 |
| 30 |
605354907 |
Foam |
| 31 |
506152115 |
Strap Ass'y |
| 32 |
506152536 |
Black Support Plate This part replaces 506151792. |
| 33 |
40031 |
Hex. screw M6 x 25 |
| 34 |
20003 |
Washer |
| 35 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 36 |
605254571 |
STEERING COVER - Call your local BRP dealership |
