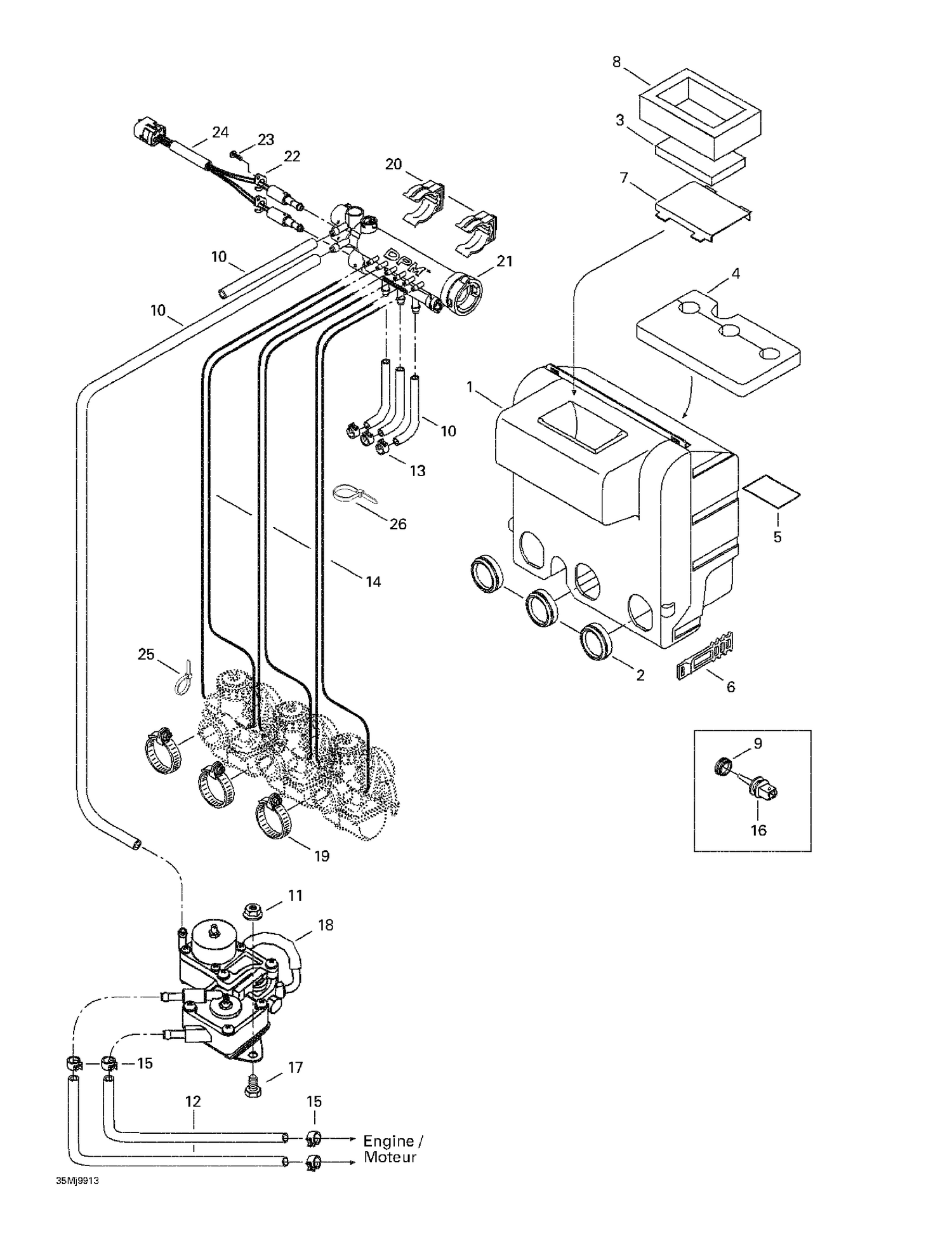

| Ref | Part Number | Description |
|---|
| 3 |
415081400 |
Air Filter |
| 4 |
415081200 |
Inner Foam |
| 5 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516000130. |
| 6 |
570069700 |
LATCH - Call your local BRP dealership |
| 7 |
517294400 |
Intake Grill |
| 8 |
415081300 |
Lower Foam |
| 9 |
570065500 |
GROMMET - Call your local BRP dealership |
| 10 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 11 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 12 |
219704549 |
Hose This part replaces 219704439. |
| 15 |
414415200 |
Spring Clamp |
| 16 |
270600000 |
AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 17 |
207151444 |
Hex. Screw M5 X 14 This part replaces 222051465. |
| 18 |
415097600 |
Air Pump |
| 19 |
420951510 |
Clamp |
| 20 |
512058919 |
SUPPORT - Call your local BRP dealership |
| 22 |
415061600 |
SOLENOID LOCK - Call your local BRP dealership |
| 23 |
241140060 |
Screw K40 X 10 This part replaces 211000028. |
| 24 |
515175219 |
Collector Harness |
