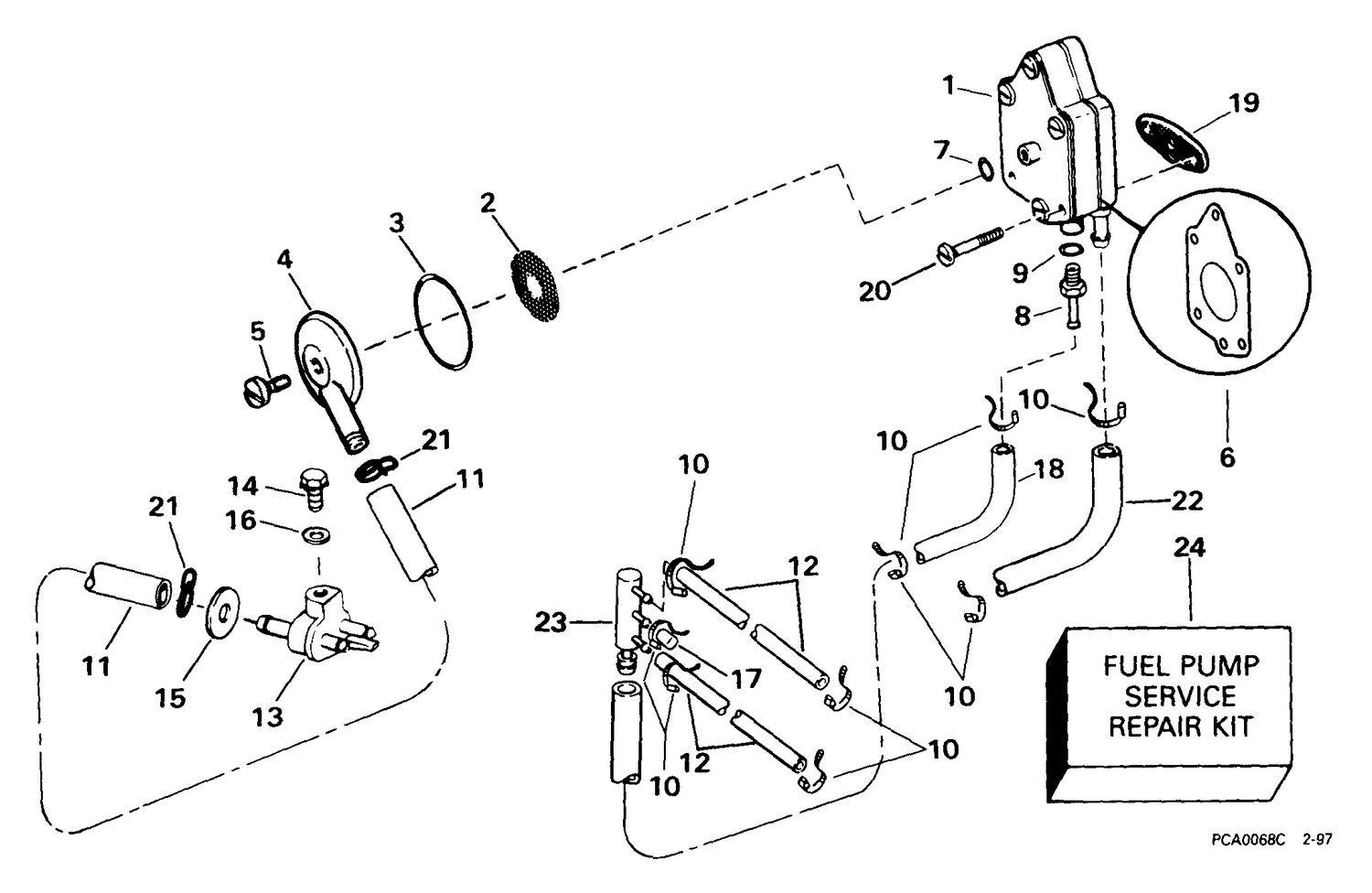

FUEL PUMP & FILTER
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0438557 | FUEL PUMP Assy |
| 10 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 | HOSE, | Fuel connector to pump, 14 in. (356mm) |
| 12 | 0329695 | HOSE |
| 17 | 0333264 | CAP, Fuel manifold |
| 18 | HOSE, | Pump to manifold, 14 in. (356mm) |
| 19 | 0303615 | GASKET |
| 21 | 0339278 | COLLIER DE SERRAGE |
| 22 | HOSE, | Pulse, 16 in. (406mm) |
| 23 | 5004610 | FITTING, Fuel manifold This part replaces 0395540. |
