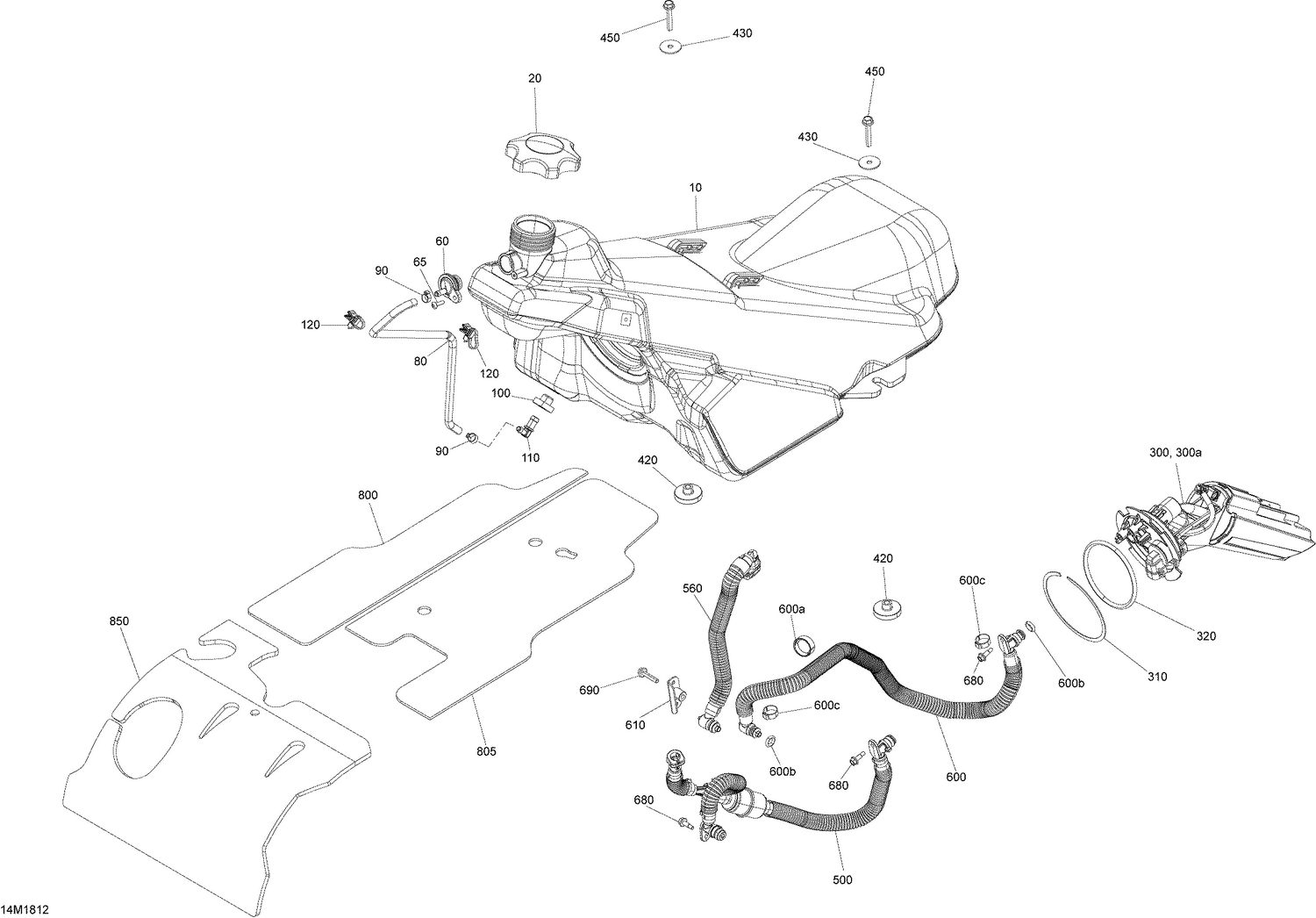

02- Fuel MXZ - 600 RS
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513033843 | Fuel Tank |
| 60 | 513033864 | Fitting |
| 65 | 250000918 | Truss Torx Screw K40 X 16 |
| 80 | 219704410 | Polyurethane Hose 10000Mm Long |
| 90 | 293650262 | Oeticker Clamp |
| 100 | 709200285 | Grommet |
| 110 | 414580700 | Male Connector |
| 120 | 710002896 | Tie-Rap Clip |
| 300a | 415130508 | Filter This part replaces 415130069. |
| 310 | 513033798 | Circlip |
| 320 | 513033862 | O-Ring |
| 420 | 513033807 | Bushing |
| 430 | 503193995 | Washer |
| 450 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 500 | 513033930 | Hose Fuel Tank This part replaces 513033909. |
| 560 | 861805525 | Kit Hose Fuel Tank This part replaces 513033908. |
| 600a | 513033910 | Ring |
| 600b | 513033668 | O-Ring |
| 600c | 293650053 | Crimp Clamp |
| 610 | 513033897 | Braket Ass'y |
| 680 | 250000911 | Hex. Flange Screw M5 X 16 |
| 690 | 207552544 | Hex. Flange Screw M5 X 25 |
| 800 | 513033866 | Insulated Foam |
| 805 | 513033867 | Insulated Foam |
