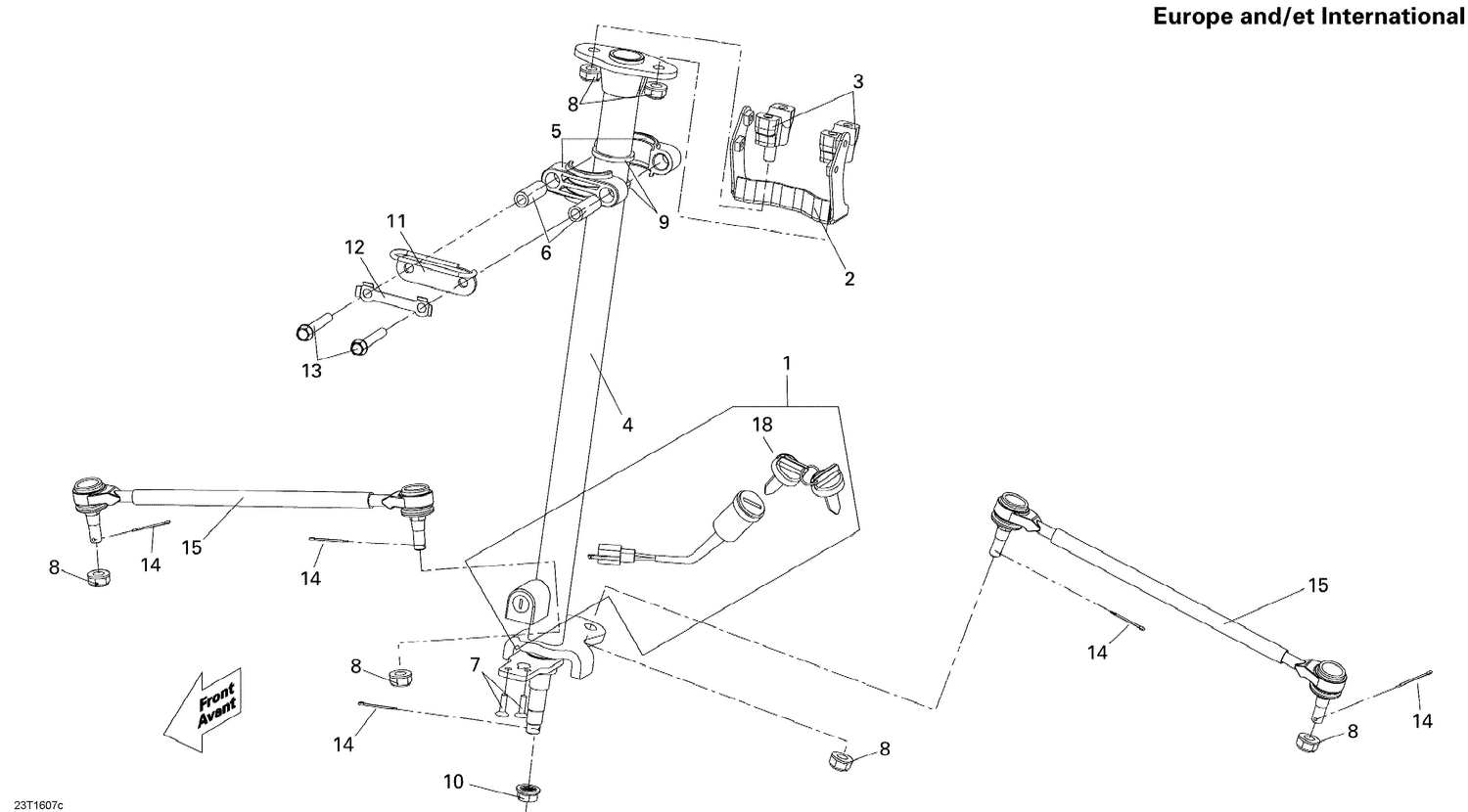

07- Steering Linkage Europe, International
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 3 | S53121RCA010 | Handle Bar Bottle Clamp |
| 4 | S53200RCA000 | Steering Column |
| 5 | S53202RCA000 | Half Bushing |
| 6 | S53203RCA000 | Bushing |
| 7 | S90164X01000 | Flat Lock Screw M6 X 12 |
| 8 | S90304M9Q800 | Hex. Flange Nut 10 mm |
| 9 | S91208RCA000 | Oil Seal |
| 10 | S90305GW0901 | Self Lock Nut 14 mm |
| 11 | S53204RCA000 | Steering Column Holder Plate |
| 12 | S53206RCA000 | Lock Tab |
| 13 | S958010806007 | Flanged Bolt M8 X 60 |
| 14 | S9420125250 | Split Pin |
| 15 | S50258RCA000 | Tie-rod Ass'y |
