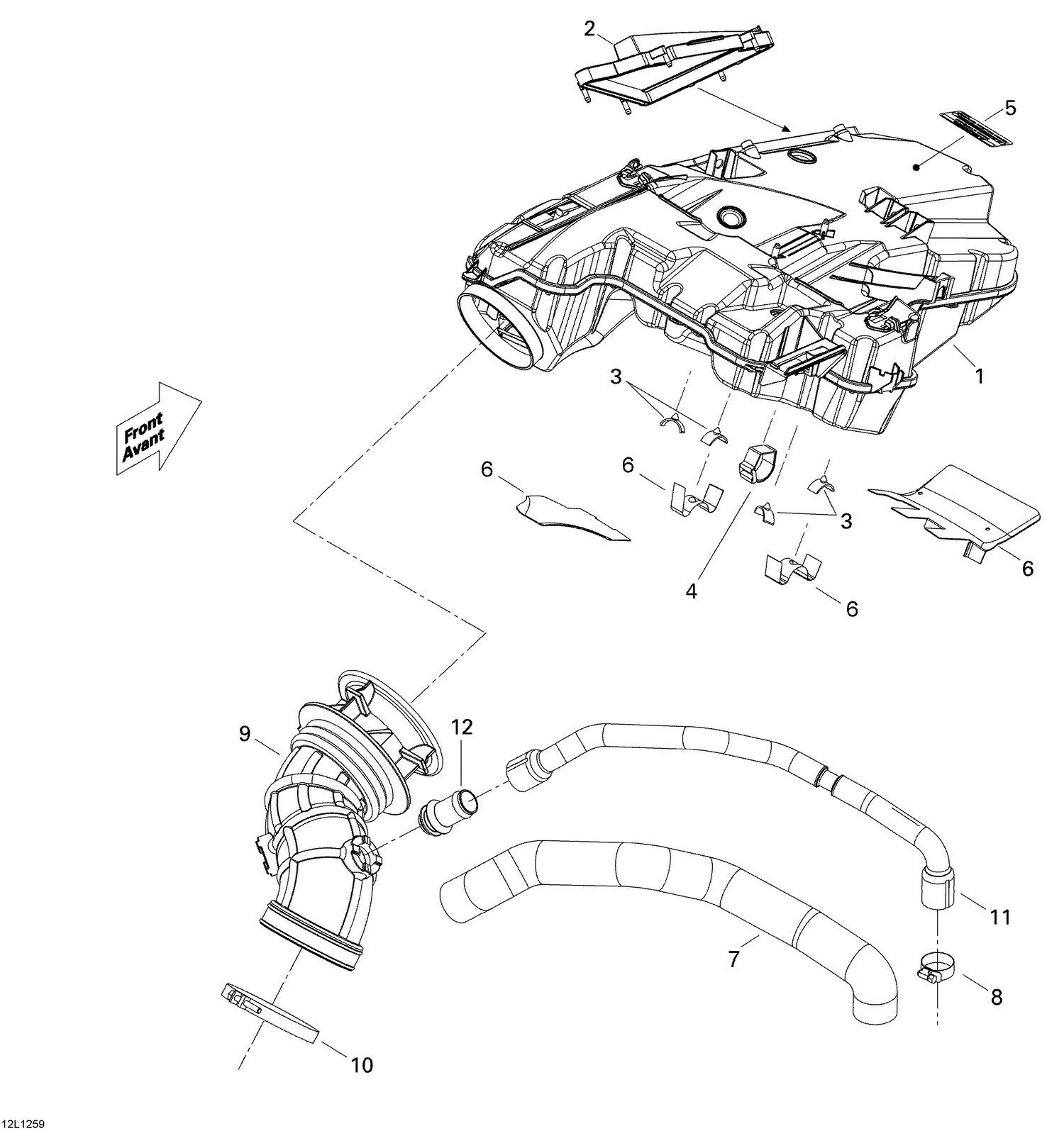

02- Air Intake System
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 508000790 | Chamber Ass'y This part replaces 508000690. |
| 2 | 508000609 | Air Filter |
| 3 | 508000537 | Stopper |
| 4 | 508000820 | Velcro-Strip This part replaces 508000532. |
| 5 | 516004651 | Caution Label, Air Intake |
| 6 | 44001 | REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
| 7 | 508000648 | Tube Isolator |
| 8 | 293650172 | Tridon Gear Clamp |
| 9 | 508000719 | HOSE-INTAKE - Call your local BRP dealership |
| 10 | 293650212 | GEMI Clamp |
| 11 | 508000647 | FORMED VENT HOSE - Call your local BRP dealership |
