Parts Catalog

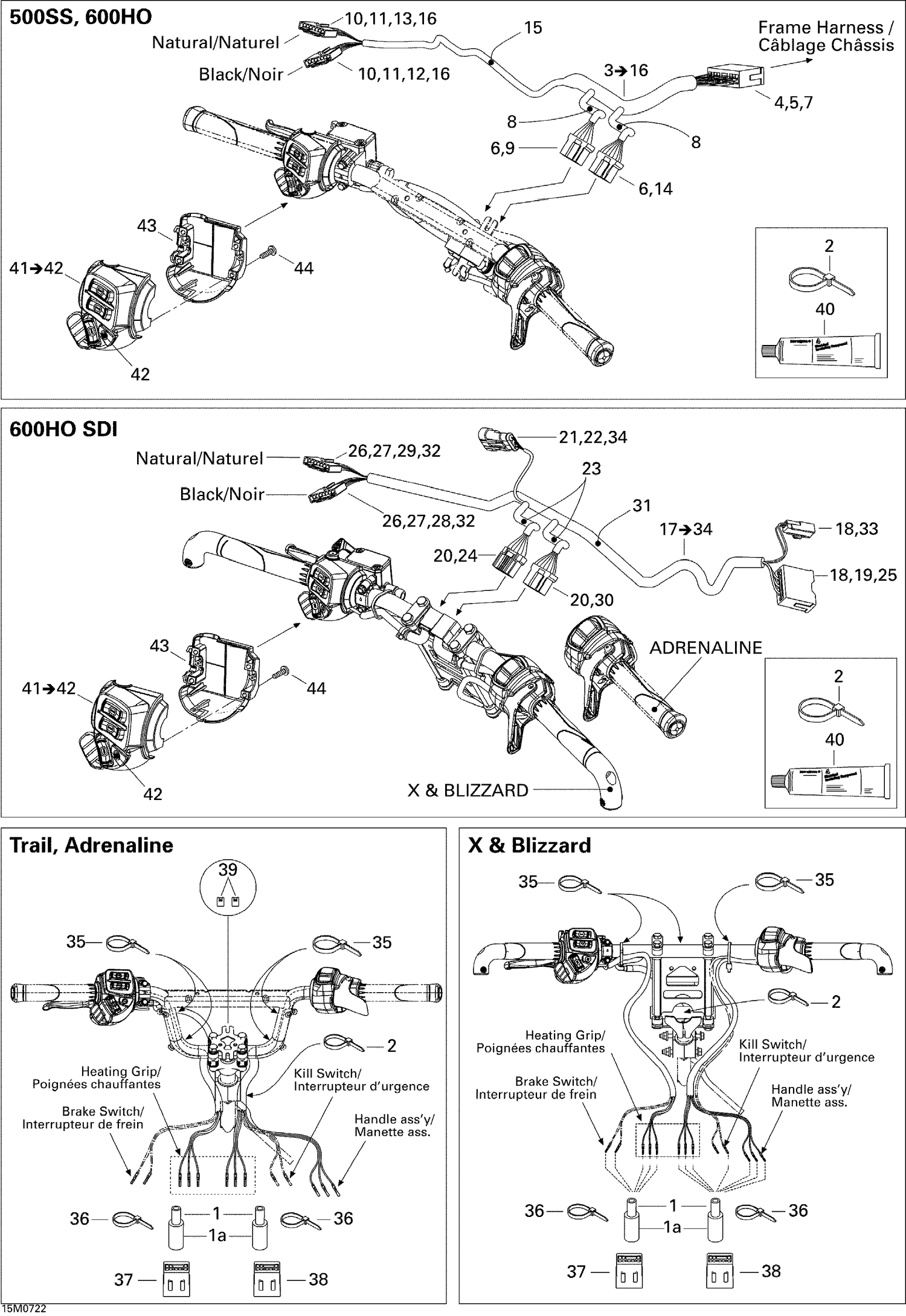

10- Steering Wiring Harness X, BLIZZARD

Parts (42)

Ref	Part Number	Description
1	409902000	Tubing 12 mm
1a	219704427	LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
2	293750008	Tie Wrap 368 mm
3	XXX	Not Available As Spare Parts
4	XXX	Not Available As Spare Parts
5	XXX	Not Available As Spare Parts
6	XXX	Not Available As Spare Parts
7	XXX	Not Available As Spare Parts
8	XXX	Not Available As Spare Parts
9	XXX	Not Available As Spare Parts
10	XXX	Not Available As Spare Parts
11	XXX	Not Available As Spare Parts
12	XXX	Not Available As Spare Parts
13	XXX	Not Available As Spare Parts
14	XXX	Not Available As Spare Parts
15	XXX	Not Available As Spare Parts
16	XXX	Not Available As Spare Parts
18	515175232	Male Terminal
19	515175273	MALE TERMINAL - Call your local BRP dealership
20	515175231	Female Terminal
21	710000568	Housing
22	278001013	Wire Seal
23	219704407	Tubing 10 MM 1000MM Long
24	515175543	Female Terminal Housing, 6 Circuits
25	515175720	MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
26	515175808	FEMALE TERMINAL - Call your local BRP dealership
27	515175809	FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership
28	515175807	FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership
29	515175810	FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership
30	515175819	Female Terminal Housing, 8 Circuits
31	219704427	LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
32	515175941	Female Terminal
33	710000667	Male Housing, 2 Circuits
34	515176164	Male Terminal
35	414115200	Tie-Rap 180 mm
36	293750002	Tie Wrap 142 mm
37	515175662	Male Terminal Housing, 6 Circuits
38	515175817	Male Terminal Housing, 8 Circuits
39	515175944	HOUSING SUPPORT - Call your local BRP dealership
40	219704453	Was 293550004 Dielectric Grease, 150 g
42	515176088	Start/RER Button
43	515175926	Switch Housing Plate
